Product PDF

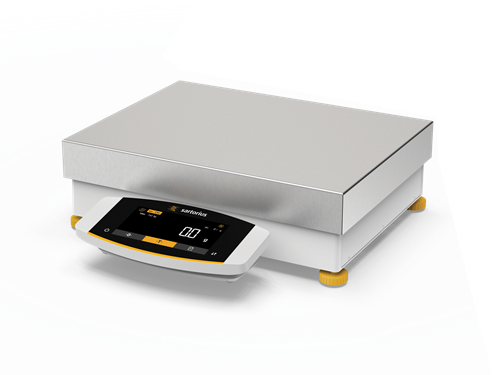

Cubis II Series MCE, Sartorius Toploader Balances

  • State-of-the-art, TFT touchscreen operation
  • Fast stabilization time
  • Modular design
  • User-configurable and custom designed to meet changing applications
  • Meets advanced Pharma compliance including user/password management for security, audit trail function logs and integrated alibi memory
  • RS-232 and USB communication
  • Underweigh hook
Request More Information
Cubisiimcetoadloader

Weighing Units:
Milligram, gram, kilogram, ounce, pound, carat, pennyweight, troy ounce, grain, newton pound/ounce, micrograms (see technical manual for complete listing)

Operating Modes:
Mass unit conversion, SQ min function, ISO-cal function, density determination (buoyancy method only with MSE), calculation, averaging, formulation, percent weighing, totalizing, counting, customized identification, Statistics, time control function, second tare memory		 Power:
120 V AC adapter (auto ranging)

Stabilization Time:
1202S, 2202S, 4202S, 5201S, 8201S, 12201S: 0.8 seconds
6202P, 6202S, 8202S, 10202S, 5202S, 14202S, 14202P: 1 second

Calibration Weight:
1202S: 1 kg
2202S, 4202S: 2 kg
5201S, 6202S, 8201S, 8202S: 5 kg
5202S: 5,000 g
10202S, 12201S, 14202S, 14202P: 10 kg		 Temperature:
Operating:
5 °C to 40 °C (41 °F to 104 °F)

Est. Weight:
21 lb

Warranty:
Ten-year limited

Return Policy:
Sartorius standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

MCE1202S

1,200 g

10 mg

7 mg

20 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195723

MCE2202S

2,200 g

10 mg

7 mg

20 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195722

MCE4202S

4,200 g

10 mg

7 mg

20 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195721

MCE5201S

5,200 g

100 mg

50 mg

100 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195726
MCE5202S

5,200 g

0.01 g

0.006 g

0.01 g

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195816
MCE6202P

1,500 g
3,000 g
6,200 g

10 mg
20 mg
50 mg

7 mg
20 mg
40 mg

 20 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195815
MCE6202S

6,200 g

10 mg

7 mg

 20 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195720
MCE8201S

8,200 g

100 mg

50 mg

 100 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195725
MCE8202S

8,200 g

10 mg

7 mg

 20 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195719
MCE10202S

10,200 g

10 mg

7 mg

 20 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195718
MCE12201S

12,200 g

100 mg

50 mg

 200 mg

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195724
MCE14202S

14,200 g

0.01 g

0.01 g

 0.03 g

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195717
MCE14202P

3,500 g
7,000 g
14,200 g

0.01 g
0.02 g
0.05 g

0.01 g
0.02 g
0.01 g

 0.05 g

8.1 × 8.1 in
(206 × 206 mm)

16 × 9.8 × 3.5 in
(410 × 249 × 88 mm)

195812



Resources / Downloads

Title Download Email
Toploader Cubis II Series MCE Catalog Pag Download Email

Parts

Part # Description List Price Cart / Quote
195723 Balance,MCE1202S-2S00-0 Sartorius, Cubis II, 1,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $5,025.00
195722 Balance,MCE2202S-2S00-0 Sartorius, Cubis II, 2,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $5,575.00
195721 Balance,MCE4202S-2S00-0 Sartorius, Cubis II, 4,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $6,125.00
195726 Balance,MCE5201S-2S00-0 Sartorius, Cubis II, 5,200g x 0.1g, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $4,175.00
195816 Balance MCE5202S-2S00-R Sartorius, Cubis II, 5200g x 0.01g TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $7,725.00
195815 Balance MCE6202P-2S00-0 Sartorius, Cubis II, 1,500g/3,000g/6,200g x 0.01/0.02/0.05g TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $6,325.00
195720 Balance,MCE6202S0-S00 Sartorius, Cubis II, 6,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $7,050.00
195725 Balance,MCE8201S-2S00-0 Sartorius, Cubis II, 8,200g x 0.1g, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $5,650.00
195719 Balance,MCE8202S-2S00-0 Sartorius, Cubis II, 8,200g x 10mg, TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $7,950.00
195718 Balance,MCE10202S-2S00-0 Sartorius, Cubis II, 10,200g x 10mg, TFT Touch Display, Manual Leveling With Digital Assist, 100-240V Power Supply

List Price: $9,225.00
195724 Balance,MCE12201S-2S00-0 Sartorius, Cubis II, 12,200g x 0.02g, TFT Touch Display, Manual Leveling With Digital Assist, 100-240V Power Supply

List Price: $6,250.00
195717 Balance,MCE14202S-2S00-0 Sartorius, Cubis II, 14,200g x 10mg, TFT Touch Display, Manual Leveling With Digital Assist, 100-240V Power Supply

List Price: $11,300.00
195812 Balance MCE14202P-2S00-0 Sartorius, Cubis II, 3,500g/7,000g/14,200g x 0.01/0.02/0.05g TFT Touch Display, Automatic Leveling, 100-240V Power Supply

List Price: $9,750.00

Options

Part # Description List Price Cart / Quote
156906 Power Supply,100-240V Sartorius 6971987

List Price: $260.00
156908 Cord,Power 220V EU Sartorius 6900900

List Price: $50.00
Consult TR: Certificate of compliance and full factory test report (factory installed)

Consult
Consult IR: Additional RS-232, 25-pin connection (factory installed)

Consult
Consult IB: Bluetooth® wireless interface (factory installed)

Consult
Consult IP: Additional RS-232, 9-pin connection with PS2 port (factory installed)

Consult
