Product PDF

Cubis Series, Sartorius Toploader Balance

  • Fast stabilization time
  • Modular design
  • User configurable and custom designed to meet changing applications
  • Meets advanced Pharma compliance including user/password management for security, audit trail function logs and integrated alibi memory
  • RS-232 and USB communication
  • Underweigh hook included
  • Choice of display
  • MCA - Large, high-end, 7" color touchscreen TFT display in 16:9 format
  • MCE - State-of-the-art, TFT touchscreen operation

Option:

  • Bluetooth® wireless technology
Request More Information

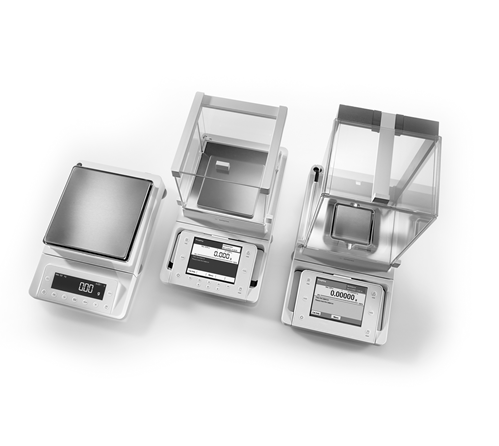

Cubis Toploader

The Cubis modular system offers you a choice of display and control units, weighing modules and draft shields. Customize your Cubis by combining any number of these modules to achieve the best laboratory balance for your application.

  1202S 2202S 4202S 6202P 6202S 8202S 10202S
MSE*
Part # 109832 109831 109830 109829 109828 109827 109826
MSU**
Part # 109842 109841 109840 109839 109838 109837 109836
MSA***
Part # 109852 109851 109850 109849 109848 109847 109846
Capacity 1200 g 2200 g 4200 g 1500 g/3000 g/6200 g 6200 g 8200 g  10200 g
Resolution 10 mg 10 mg 10 mg 10 mg/20 mg/50 mg 10 mg 10 mg 10 mg
Weighing Modes Grams, Kilograms, Carat, Pounds, Ounces, Troy Ounce, Tael Hong Kong, Tael Singapore, Tael Taiwan, Grain, Pennyweight, Milligram, Parts per Pound, Tael China, Mommes, Austrian Carat, Tola, Baht, Mesghal, Ton, Pound:Ounces, Newton, Micrograms
Operating Modes (*) Mass Unit Conversion, SQ min function, ISO-Cal function, Density determination (Buoyancy method only with MSE), Calculation, Averaging, Formulation, Percent weighing, Totalizing, Counting, Customized identification, Statistics, Time control function, Second tare memory, Over/Under Checkweighing
Repeatability 7 mg 7 mg 7 mg 7 mg/20 mg/1940 mg 7 mg 7 mg 7 mg
Linearity 20 mg 20 mg 20 mg 20 mg 20 mg 20 mg 20 mg
Stabilization Time 0.8 seconds 0.8 seconds 0.8 seconds 1 second 1 second 1 second 1 second
Operating Temperature 41° F to 104° F (+5° C to 40° C)
Pan Size 8.1 x 8.1 in (206 x 206 mm)
Dimensions 16 x 9.8 x 3.5 in (410 x 249 x 87.7 mm)
Weight (Approx.) 16 lb
Est. Ship Weight 21 lb
Calibration Weight 1 kg 2 kg 2 kg 5 kg 5 kg 5 kg 10 kg
Power 120 V AC adapter (auto ranging)
Warranty Two-year Limited Warranty
Return Policy Sartorius Standard Policy - restock fee may apply
* MSE Large LCD display and easy to use menu system
**MSU Monochrome graphic display, positive click on keys to activate functions, Ethernet and SD card reader
***MSA TFT color touchscreen, Ethernet and SD card reader



  5201S 5202s 8201S 12201S 14202s 14202p
MSE*
Part # 109835 156322**** 109834 109833 156325 156327
MSU**
Part # 109845 156321**** 109844 109843 156323 156329
MSA***
Part # 109855 156318**** 109854 109853 156319 156320
Capacity 5200 g 5200 g 8200 g 12200 g 14,200 g 14,200/7000/3500 g
Resolution 100 mg 0.01 g 100 mg 100 mg 0.01 g 0.05/0.02/0.01 g
Weighing Modes Grams, Kilograms, Carat, Pounds, Ounces, Troy Ounce, Tael Hong Kong, Tael Singapore, Tael Taiwan, Grain, Pennyweight, Milligram, Parts per Pound, Tael China, Mommes, Austrian Carat, Tola, Baht, Mesghal, Ton, Pound:Ounces, Newton, Micrograms
Operating Modes Mass Unit Conversion, SQ min function, ISO-Cal function, Density determination (Buoyancy method only with MSE), Calculation, Averaging, Formulation, Percent weighing, Totalizing, Counting, Customized identification, Statistics, Time control function, Second tare memory, Over/Under Checkweighing
Repeatability 50 mg 0.006 g 50 mg 50 mg 0.01 g 0.01/0.02/0.01 g
Linearity 100 mg 0.01 g 100 mg 200 mg 0.03 g 0.05 g
Stabilization Time 0.8 seconds 1 second 0.8 seconds 0.8 seconds 1 second 1 second
Operating Temperature 41° F to 104° F (+5° C to 40° C)
Pan Size 8.1 x 8.1 in (206 x 206 mm)
Dimensions 16 x 9.8 x 3.5 in (410 x 249 x 87.7 mm)
Weight (Approx.) 16 lb
Est. Ship Weight 21 lb
Calibration Weight 5 kg 5000 g 5 kg 10 kg 10 kg 10 kg
Power 120 V AC adapter auto ranging
Warranty Two-year Limited Warranty
Return Policy Sartorius Standard Policy - restock fee may apply
*MSE Large LCD display and easy to use menu system
**MSU Monochrome graphic display, positive click on keys to activate functions, Ethernet and SD card reader
***MSA TFT color touchscreen, Ethernet and SD card reader
****DR - Draft stainless steel shield

  • Bluetooth® wireless technology

Resources / Downloads

Title Version Revision Download Email Category Archived
Sartorius Cross Reference Guide Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
Sartorius Cubis Series Modular Data Sheets Download Email Balances
Sartorius Cubis Series Download Email Balances

Options

Part # Description List Price Cart / Quote
156906 Power Supply,100-240V Sartorius 6971987

List Price: $260.00
156908 Cord,Power 220V EU Sartorius 6900900

List Price: $50.00
Consult TR: Certificate of compliance and full factory test report (factory installed)

Consult
Consult IR: Additional RS-232, 25-pin connection (factory installed)

Consult
Consult IB: Bluetooth wireless® interface (factory installed)

Consult
Consult IP: Additional RS-232, 9-Pin connection with PS2 port (factory installed)

Consult
