Product PDF

EK-AEP Series, A&D Weighing Intrinsically Safe Compact Balances

  • LCD display
  • ATEX and FM approved (Class I, Division 1, groups C and D)
  • Optical data output
  • 200 hours of battery operation*
  • Auto power off
  • Counting/Percentage/Specific Gravity modes
  • Optical data output
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved Atex

WARNING: Cancer and Reproductive Harm California Proposition 65
Portals 0 Products A32b930df0724617b1b34b70fcbc3797 Orig (1)

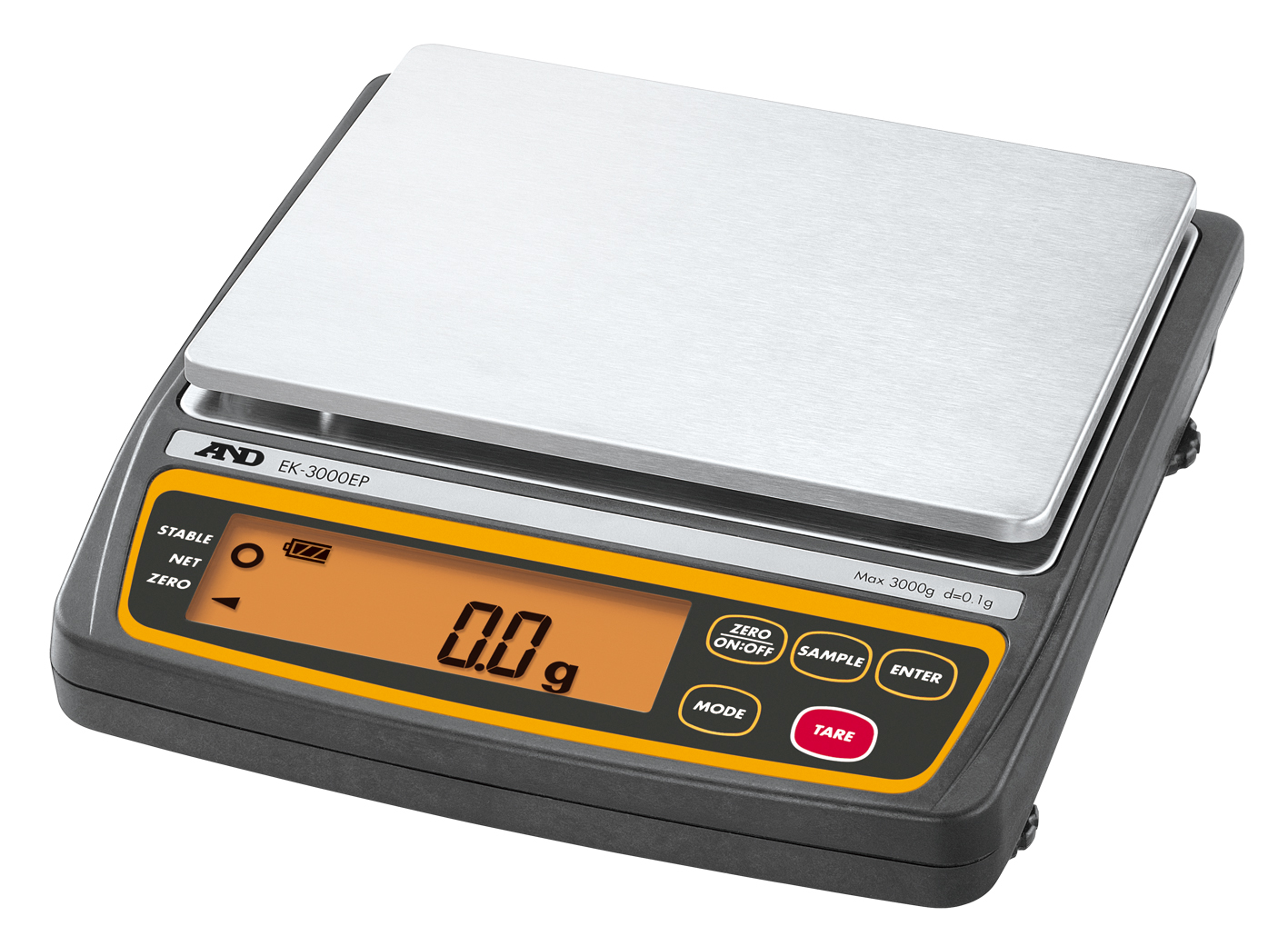

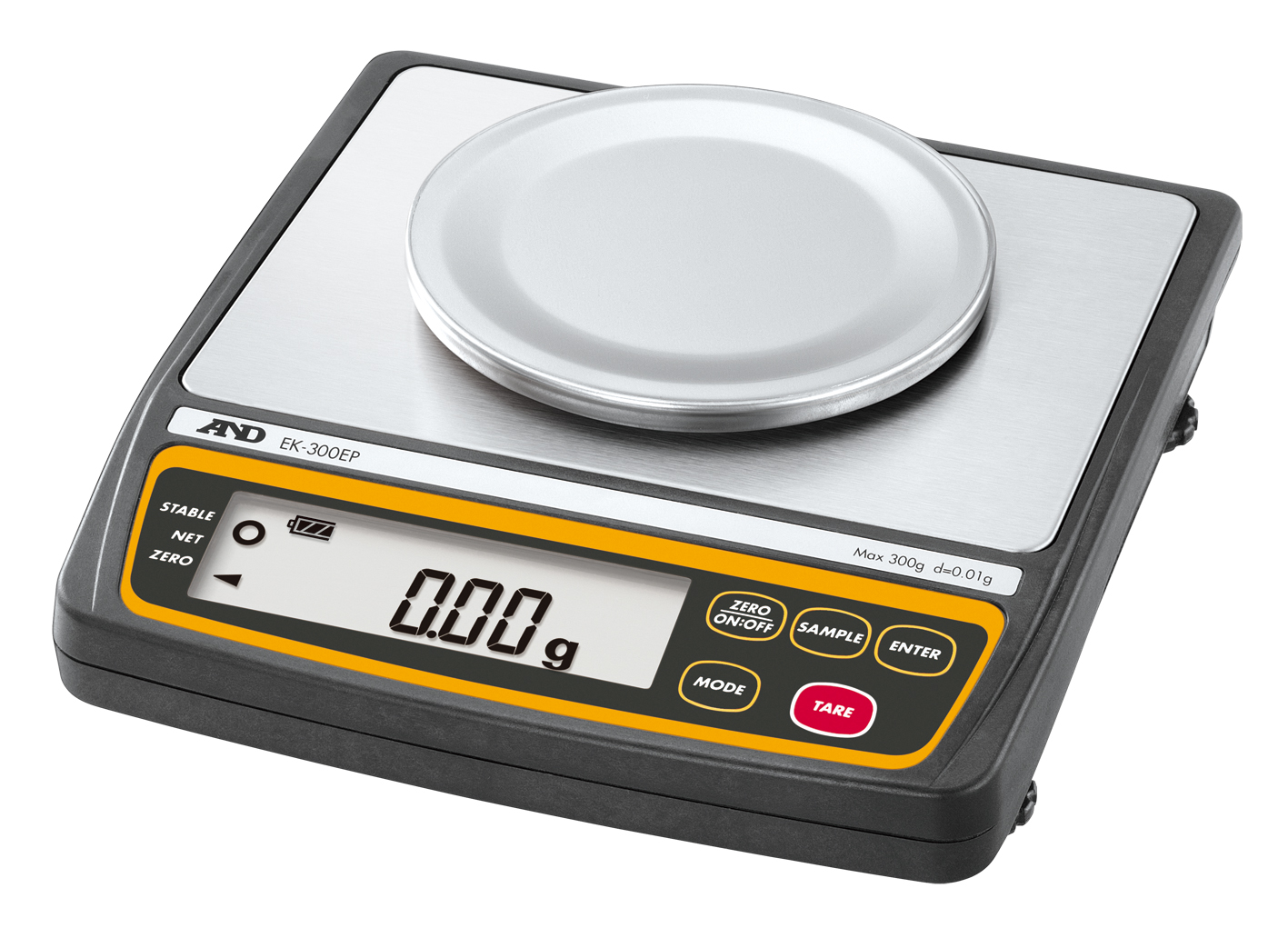

The A&D Weighing EK-AEP is an intrinsically safe balance in 300 g, 3,000 g or 12,000 g capacities. Operating modes are Counting, Percentage and Specific Gravity.

Weighing Units:
Carat, pennyweight, troy ounce, newton, decimal ounce, decimal pound

Operating Modes:
Counting, percentage, specific gravity

Power:
Four AA batteries*

Stabilization Time:
< 2 seconds

Calibration Weight:
EK-300AEP: 300 g
EK-3000AEP: 3,000 g
EK-12KAEP: 10 kg

*(Battery life determined with backlight off with four AA batteries. The EK-EAP must be used with the following to maintain FM integrity: Duracell AA alkaline MN 1500 LR6, Energizer AA E91 alkaline LR6 AM3, Panasonic AA alkaline LR6 (XJ). Do not mix type or new/used batteries.)

Temperature:
Operating:
32 °F to 104 °F (0 °C to 40 °C)

Est. Weight:
3.5 lb (1.5 kg)

Warranty:
Two-year limited

Return Policy:
A&D Weighing standard policy -
restock fee may apply

Approvals:
cFMus
ATEX

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

EK-300AEP

300 g

0.01 g

0.01 g

±0.02 g

Ø4.33 in
(110 mm)

7.5 × 8.6 × 2.2 in
(190 × 218 × 55 mm)

199565

EK-3000AEP

3,000 g

0.1 g

0.1 g

±0.2 g

5.24 in × 6.69 in
(133 mm × 170 mm)

7.5 × 8.6 × 2.2 in
(190 × 218 × 55 mm)

199566

EK-12KAEP

12,000 g

1 g

1 g

±1 g

5.24 in × 6.69 in
(133 mm × 170 mm)

7.5 × 8.6 × 2.2 in
(190 × 218 × 55 mm)

199567



Resources / Downloads

Title Download Email
Intrinsically Safe EK-AEP Series Catalog Page Download Email

Title View Download Email Category
ScaleTalk: What are Hazardous Areas? View Download Email

Parts

Part # Description List Price Cart / Quote
199565 Balance,A&D EK-300AEP Compact, Intrinsically Safe, 300g x 0.01g/ FM Approved Class I, Div 1, Groups C D. Powered by four AA Batteries (not included).

List Price: $1,880.00
199566 Balance,A&D EK-3000AEP Compact, Intrinsically Safe, 3000g x 0.1g/ FM Approved Class I, Div 1, Groups C D. Powered by four AA Batteries (not included).

List Price: $1,990.00
199567 Balance,A&D EK-12KAEP Compact, Intrinsically Safe, 12kg x 1g/ FM Approved Class I, Div 1, Groups C D. Powered by four AA Batteries (not included).

List Price: $2,220.00

Options

Part # Description List Price Cart / Quote
177696 Carrying Case,A&D EJ-12 For EK-EP Series Balances

List Price: $79.00
202077 OPT. SERIAL OUTPUT MODULE FOR A&D EK-AEP BALANCES. INCLUDES RS-232C (D-SUB 9 PIN) AND USB TYPE B. FOR USE IN SAFE AREA

List Price: $525.00
202074 OPT. FIBER OPTIC CABLE FOR A&D AD-1611 SERIAL OUTPUT MODULE. 10m LONG.

List Price: $360.00
202075 OPT. FIBER OPTIC CABLE FOR A&D AD-1611 SERIAL OUTPUT MODULE. 30m LONG.

List Price: $640.00
202076 OPT. FIBER OPTIC CABLE FOR A&D AD-1611 SERIAL OUTPUT MODULE. 60m LONG.

List Price: $940.00
