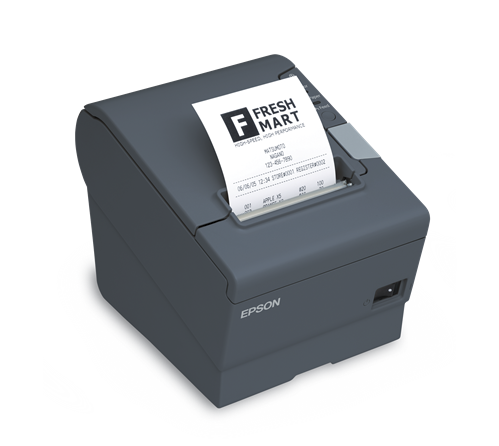

Epson TM-T88VI Direct-Thermal POS Receipt Printer

As of: Thursday, November 21, 2024

Save or Print to PDF

High-speed printing of both text and graphics (up to 300 mm/second)
Direct thermal POS receipt printer
True grayscale image printing
Best-in-class reliability
Convenient drop-in paper loading, auto cutter and status LEDs
ENERGY STAR® qualified
Accommodates 58 mm or 80 mm paper roll
Paper saving print features
Improved cover protects from dust and debris
OS support for Microsoft® Windows® 7, Vista, XP, 2000; Mac OS X v10.4, v10.5, v10.6 (Power PC/Intel Processor) and Linux

Interface:
Built-in USB and serial interface (DB-25F); built-in USB and Ethernet: or built-in USB and Wireless LAN

Paper Dimensions:
80 mm: 3.13 × 3.27 in diameter
58mm: 2.26 × 3.27 in diameter

Paper Thickness:
55 to 80 µm

Print Speed:
300 mm/s {11.81 inch/s}

Power:
24 VDC ±7%

Temperature:
Operating: 31 °F to 113 °F (5 °C to 45 °C)
Storage: 14 °F to 122 °F (-10 °C to 50 °C)

Reliability:
MTBF: 360,000 hours
MCBF: 70 million lines

Dimensions:
(L x W x H)
7.68 × 5.71 × 5.83 in
(195 × 145 × 148 mm)

Warranty:
One-year limited

Part #	Description

117233	Printer,Thermal TM-T88VII Epson Direct Thermal, RS-232, USB, Ethernet, PS-180 Power Supply, Black

Part #	Description
Cables, Adapters and Connectivity
23112	Power Supply,Epson PS-180 TM-290II/TM295/TMU200 EU-T432-T1 90-264VAC To 24VDC INCLUDES AC POWER CABLE
69917	Paper Roll,Thermal Star TSP700, TSP600, 3.125" Wide x 3.25" Dia 7/16 Core 295 Foot Rolls
83007	Printer,Parallel OPT Connect-It OPT, TM-U220 TM-T88IV
15568	Cable,Kit 25 Pin RS232 IDS SP 25 Pin D-Sub Male To 25 Pin D-Sub Male
15547	Cable Assy,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White
79074	Cable, USB 6ft USB-A (male) to USB-B (male)
167545	Printhead,POS Receipt Printer TM-T88IV TM-T88V Epson
Consult	Custom RS-232 serial cable
