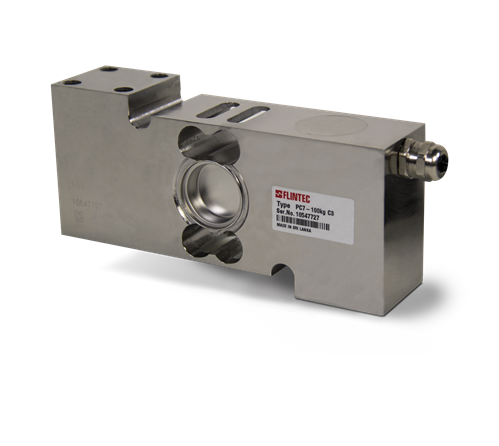

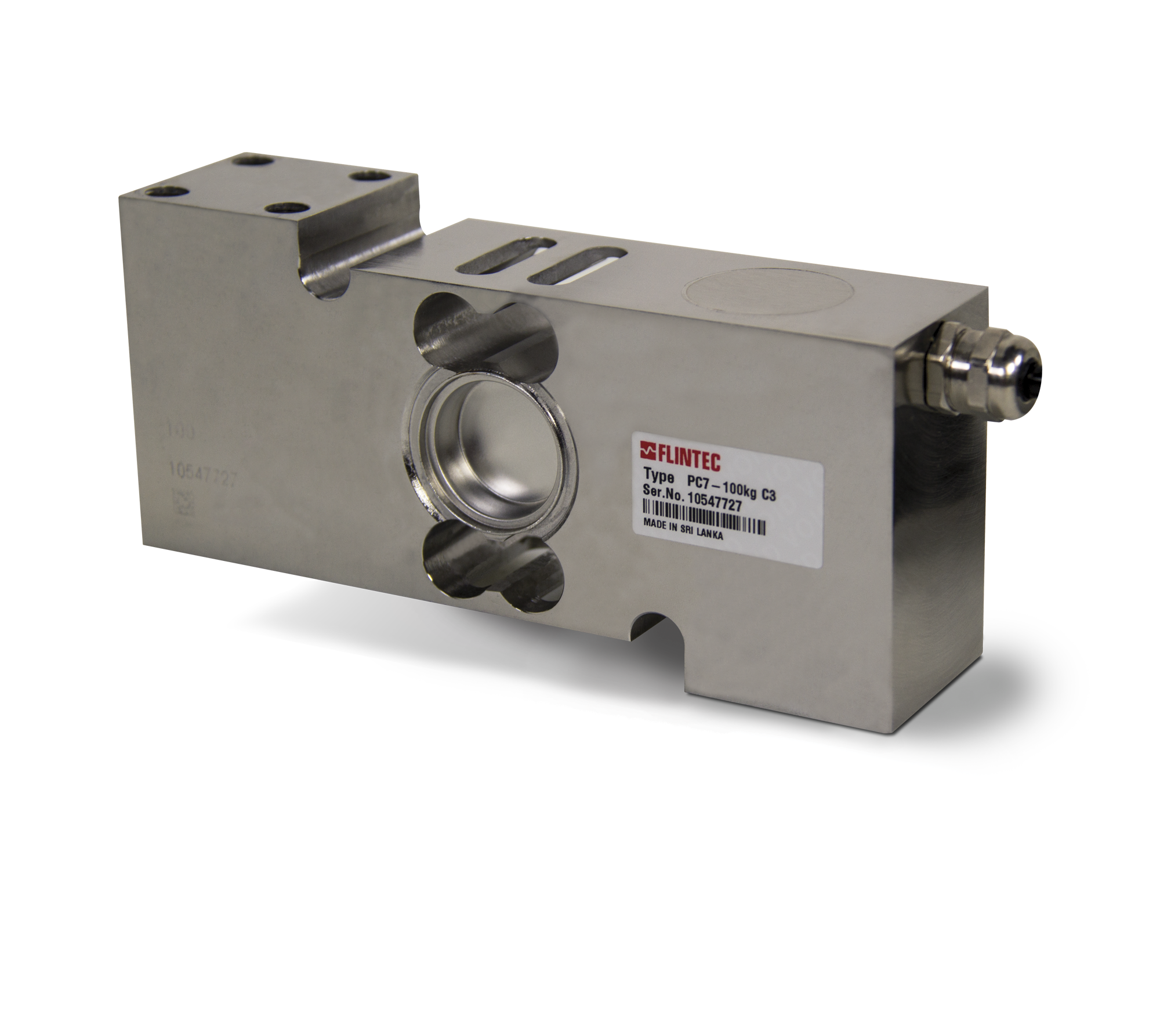

Flintec® PC7 Stainless Steel, Single Point Load Cell

Ideal for washdown applications. Hermetically sealed to IP69K standards, this stainless steel component comes with 3 m of cable and an integrated mounting spacer for easy installation.  Available in capacities ranging from 100 kg to 500 kg.

Approvals

Some approval documents are available to view by clicking the icons below.

OIML Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2 mV/V ±5%

Output Resistance:
350 (± 10) ohm

Input Resistance:
380 (± 20) ohm

Material/Finish:
Stainless steel construction with
electro-polished finish

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Insulation Resistance:
5,000 megohm

Cable Length:
3 m

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Blue +Sense
Brown -Sense
Yellow Shield

Max Platform Size:
600 × 600 mm

Warranty:
One-year limited

Approvals:
OIML

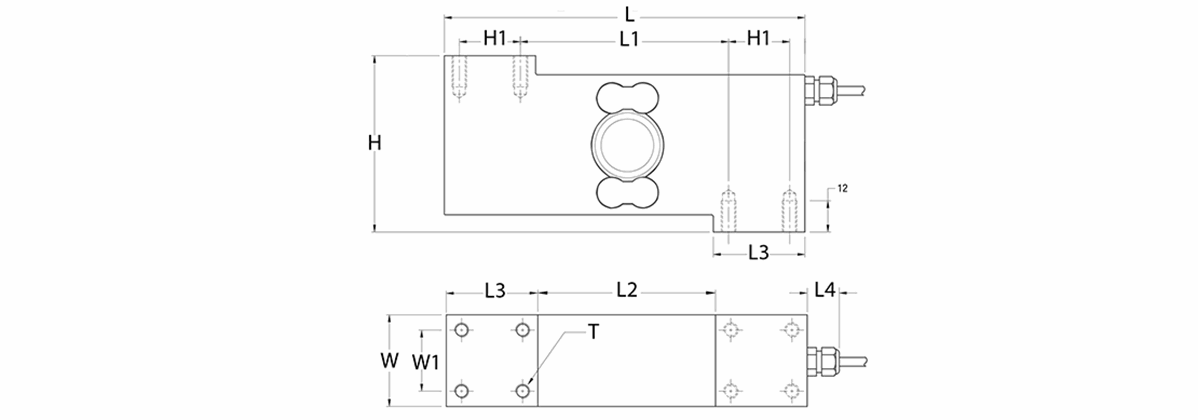

Rated Capacity H H1 L L1 L2 L3 L4 W W1 T
kg/in
100 to 500 2.88 1.00 5.91 3.41 2.92 1.50 0.63 1.50 1.00 M8





Resources / Downloads

Title Download Email
Flintec PC7 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
161719 Load Cell,SPT Flintec PC7 PC7 100kg 3m C3 OIML SST IP68/IP69K FLINTEC

List Price: $742.00

161720 Load Cell,SPT Flintec PC7 PC7 250kg 3m C3 OIML SST IP68/IP69K FLINTEC

List Price: $742.00

161721 Load Cell,SPT Flintec PC7 PC7 500kg 3m C3 OIML SST IP68/IP69K FLINTEC

List Price: $742.00

Related Products

RL-VPG-tedea-huntleigh-1510-load-cell

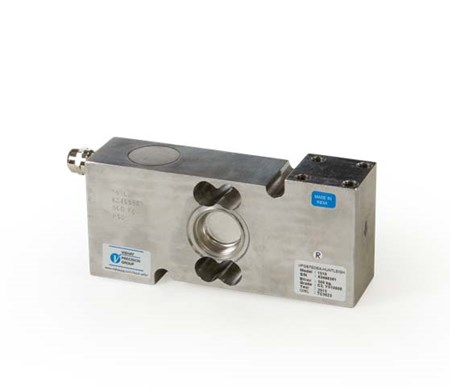

VPG Tedea-Huntleigh 1510 Stainless Steel, Single-Point Load Cell
