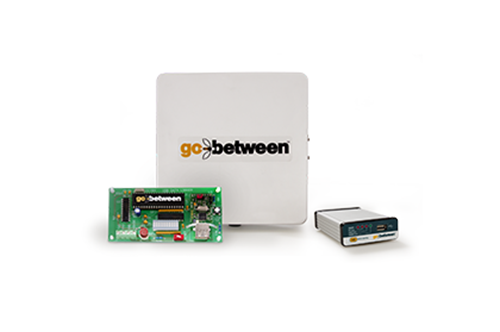

go-between™ Data Capture and Storage

  • LED onboard for testing data transmission
  • Captures data and stores it on a USB flash drive (up to 8 GB not included)
  • Transfer data to your PC using the USB flash drive
  • Text file examples (actual text will be dependent on transmitted file)
  • 02:50PM
    11/13/2012
    GROSS 58 lb
  • 02:50PM
    11/13/2012
    GROSS 68 lb

Go-Between fills a gap in the need to transfer data from balances and other scale equipment with RS-232 connections to a more widely accepted USB format. Once properly installed, Go-Between automatically captures weight data from a device each time its print command is activated. Go-Between then offers its own built-in USB port for sending data to any standard flash drive.

Power:
Requires 5 VDC

Baud Rate:
9600

Data Bits:
8

Parity:
None

Customer Supplied:
Power and USB flash drive

Industrial Enclosure Option:
7.5 × 7.5 × 4.5 in
(19 × 19 × 12 cm)
Latch for lock

Warranty:
One-year limited

Resources / Downloads

Title Download Email
go-between Catalog Page Download Email

Title Version Revision Download Email Category Archived
Go-Between Installation and Operation Manual B Download Email Precision Measurement No

Title Collateral Wizard Request Download Email Category
Go-Between Application Brief Download Email Indicator Hardware|Indicators / Controllers|Balance Accessories|Balances

Title View Download Email Category
Go-Between Demonstration with 480 Legend Series View Download Email Indicators / Controllers|Accessories
Go-Between Demonstration with Equipoise View Download Email Indicators / Controllers
Go-Between Overview View Download Email Hardware|Indicator Hardware

Parts

Part # Description List Price Cart / Quote
153265 Board,Go-between RS-232 to USB data storage

List Price: $435.00

153266 Go-Between Storage Device RS-232 to USB data storage, FRP Enclosure (19cm x 19cm x 12cm) (7.5in x 7.5in x 4.5in)

List Price: $630.00

153267 Go-between storage device desk enclosure, RS-232 to USB data storage, Power Supply included

List Price: $525.00

158778 Enclosure,Desk go-between RS-232 to USB data storage, EU Power Supply included

List Price: $525.00

Options

Part # Description List Price Cart / Quote
154797 Adapter,Power 5VDC 2A 90-264VAC, US plug, UL/CUL

List Price: $37.00

170935 Overlay,Go-Between Desk

List Price: $79.00

195607 USB Flash Drive-8GB Plug and Play Compatible with Windows XP or above and Mac OSC or Higher - Rice Lake Logo

List Price: $9.00

130789 Adapter,Null Modem DB9F/M

List Price: $14.50

119064 Adapter,Slimline Null Modem, Gender Changer DB9 Female/Female

List Price: $12.50

66535 Cable,DB9F to DB9F Null Modem Serial Cable 6 Foot

List Price: $46.00

22436 Cable Assy,COMM DB9F 6Ft 9 Pin FEM on One End, Stripped and Tinned On Other End. Pin 2 (Brown), Pin 3 (Red), Pin 5 (Yellow)

List Price: $70.00

15493 Cable,Load Cell Custom EL146 4-Conductor per foot UL, CSA c UL approved

List Price: $1.65

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

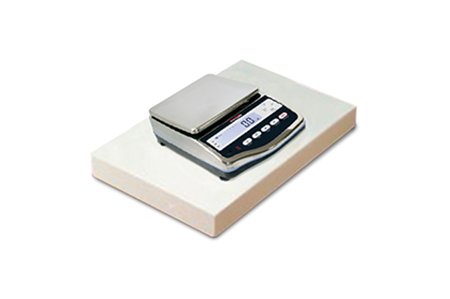

1 US Balance On Slab CMYK
