Product PDF

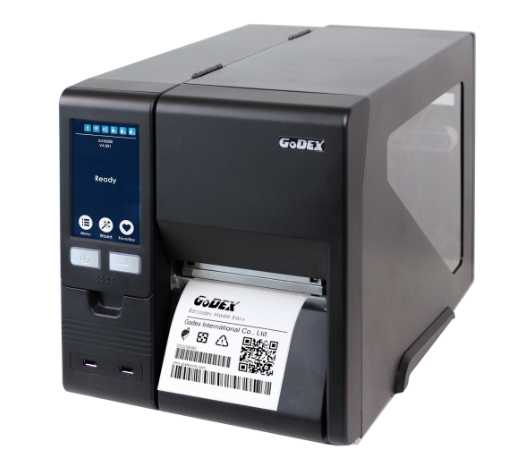

GoDEX GX4000i Series Direct Thermal Label Printer

  • Thermal transfer/direct thermal
  • Free GoLabel and GoLabel II design software
  • 32-bit RISC CPU
  • Equipped with a 5 in LCD touchscreen
  • Aluminum cast frame

GoDEX GX4200i

  • Resolution: 203 dpi
  • Print Speed: Up to 16 ips
  • Print Length: Min. 0.16 in - Max. 279.53 in

GoDEX GX4300i

  • Resolution: 300 dpi
  • Print Speed: Up to 12 ips
  • Print Length: Min. 0.16 in - Max. 125.98 in
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

CE Mark LOGO FCC Notext UL_Listed_C-US UKCA Black Fill

WARNING: Cancer and Reproductive Harm California Proposition 65
Gx4000i Series 1

The GX4000i Series is an ultra-high-speed industrial thermal printer fully equipped to support your most demanding applications. With a robust steel design, these printers thrive in all environments while maintaining precision printing.

Print Width:
4.09 in

Media:
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Thickness: Min. 0.0024 in ‒ Max. 0.01 in
Label Roll Diameter: Max. 8 in
Core Diameter: Min. 1.5 in ‒ Max. 3 in

Printer Language:
EZPL, GEPL, GZPL, GDPL auto switch

Resident Fonts:
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF fonts: (Bold / Italic / Underline) 0°, 90°, 180°, 270° rotatable
Internal TTF Fonts x 5: Traditional Chinese, Simplified Chinese, Japanese, Korean, Western languages

1-D Bar Codes:
China Postal Code, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5, Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT-128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of 5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K-Mart, Random Weight and Pharmacode

2-D Bar Codes:
Aztec code, Code 49, Codablock F, Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417, QR Code, TLC 39, GS1 Composite, DotCode, Marco PDF 417

Memory:
256 MB flash; 256 MB SDRAM

Interfaces:
USB 2.0 (Type B)
Serial Port (RS-232)
Ethernet 10/100 Mbps
USB Host (A-Type)

Power:
Auto Switching 100/240 VAC, 50/60 Hz

Temperature:
Operating: 41°F to 104°F (5°C to 40°C)
Storage: -4°F to 140°F (-20°C to 60°C)

Dimensions:
(L × W × H)
18 × 11 × 12 in
(460 × 269 × 309 mm)

Warranty:
Three-year limited

Approvals:
CE (EMC)
FCC Class B
CB
cULus
UKCA
BSMI
ICES-003

Resources / Downloads

Title Version Revision Download Email Category Archived
GoDEX GX4000i User Manual A Download Email Printers No
GoDEX GX4000i Quick Guide A Download Email Printers No

Title Download Email
Custom Label Format Form Download Email

Title Collateral Wizard Request Download Email Category
GoDEX GX4000i Literature Download Email Printers

Title View Download Email Category
ScaleTalk: Direct Thermal vs Thermal Transfer Paper View Download Email
GoLabel and GoDex Printers: Creating a Label Format View Download Email Printers

Parts

GX4200i

Part # Description List Price Cart / Quote
222248 Printer, Label GX4200i GX4200i, 203 dpi, DT, TT, 16 UPS, SUB, RS232, Ethernet, 5 in, Color Touchscreen

List Price: $2,395.00

GX4300i

Options

Part # Description List Price Cart / Quote
225332 Printer, opt WIFI module WIFI module for GODEX GX4000i series

List Price: $250.00

Label Stock/Ribbon (W x L)

Cables

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
