Product PDF

GoDEX ZX400i+ Series Direct Thermal Printer

  • Thermal transfer/direct thermal
  • Free GoLabel II design software
  • Auto language emulations GDPL
  • 32-bit RISC CPU
  • Die-cast frame

GoDEX ZX420i+

  • Resolution: 203 dpi
  • Print Speed: Up to 6 ips
  • Print Width: 4.25 in
  • Print Length: Min. 0.16 in - Max. 279.53 in

GoDEX ZX430i+

  • Resolution: 300 dpi
  • Print Speed: Up to 4 ips
  • Print Width: 4.16 in
  • Print Length: Min. 0.16 in - Max. 125.98 in
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

CE Mark LOGO FCC Notext

WARNING: Cancer and Reproductive Harm California Proposition 65

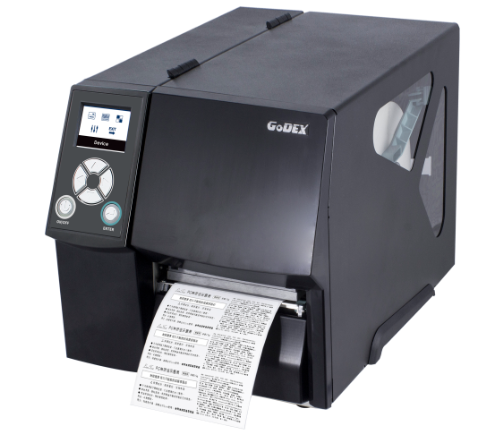

Zx4000i Front

Small in size and powerful in performance, the ZX400i+ Series combines multiple interfaces and optional WiFi and Bluetooth connections suitable for most application environments.

Media:
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Thickness: Min. 0.0024 in ‒ Max. 0.01 in
Label Roll Diameter: Max. 8 in
Core Diameter: Min. 1 in ‒ Max. 3 in

Printer Language:
EZPL, GEPL, GZPL, GDPL auto switch

Resident Fonts:
Bitmap fonts 8 times expandable in horizontal and vertical directions
TTF fonts: (Bold / Italic / Underline) 0°, 90°, 180°, 270° rotatable
Internal TTF Fonts x5: Traditional Chinese, Simplified Chinese, Japanese, Korean, Western languages



Barcodes:
1-D Barcodes: China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8/EAN-13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5, Interleaved 2-of-5 (I 2 of 5), Interleaved 2-of-5 with Shipping Bearer Bars, ISBT 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Standard 2 of 5, Telepen, Matrix 2 of 5, UPC-A/UPC-E (with 2 or 5 digit extension), UCC/EAN-128 K Mart, Random Weight and Pharmacode
2-D Barcodes: Aztec code, Code 49,Codablock F, Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39, GS1 Composite, DotCode, Marco PDF 417

Memory:
128 MB flash; 128 MB SDRAM

Interfaces:
USB 2.0 (Type B)
Serial Port (RS-232)
Ethernet 10/100 Mbps
USB Host (A-Type)

Power:
Auto Switching 100/240 VAC, 50/60 Hz

Environment:
Operation: 41°F to 104°F (5°C to 40°C)
Storage: -4°F to 140°F (-20°C to 60°C)

Humidity:
Operation: 20 to 85%, non-condensing
Storage: 10 to 90%, non-condensing

Dimensions:
(L × W × H)
15.9 × 10.2 × 10.8 in
(403 × 260 × 274 mm)

Weight:
23.81 lb

Warranty:
Three-year limited

Approvals:
CE (EMC)
FCC Class B
CB
cULus
UKCA
BSMI
ICES-003
ENERGY STAR

Resources / Downloads

Title Version Revision Download Email Category Archived
GoDEX ZX400i Series User Manual A Download Email Printers No
GoDEX ZX400i Series Quick Guide A Download Email Printers No

Title Download Email
Custom Label Format Form Download Email

Title Collateral Wizard Request Download Email Category
GoDEX ZX400i Brochure Download Email Printers

Title View Download Email Category
ScaleTalk: Direct Thermal vs Thermal Transfer Paper View Download Email
GoLabel and GoDex Printers: Creating a Label Format View Download Email Printers

Parts

ZX420i+

Part # Description List Price Cart
222252 Printer, Label ZX420i+ 203 dpi, DT, TT, 6 IPS, USB, RS232, Ethernet, Color screen with navigation buttons

List Price: $875.00

ZX430i+
