Product PDF

GX-M Series, A&D Weighing High Capacity Balance

  • Internal adjustment weight
  • Auto environmental compensation
  • IP65/NEMA Type 4
  • RS-232 interface for connecting to printer or PC
  • Data memory function
  • Quick reference operation card
  • Time and date
  • Vacuum Fluorescent Display (VFD)
  • Underweigh hook
Request More Information

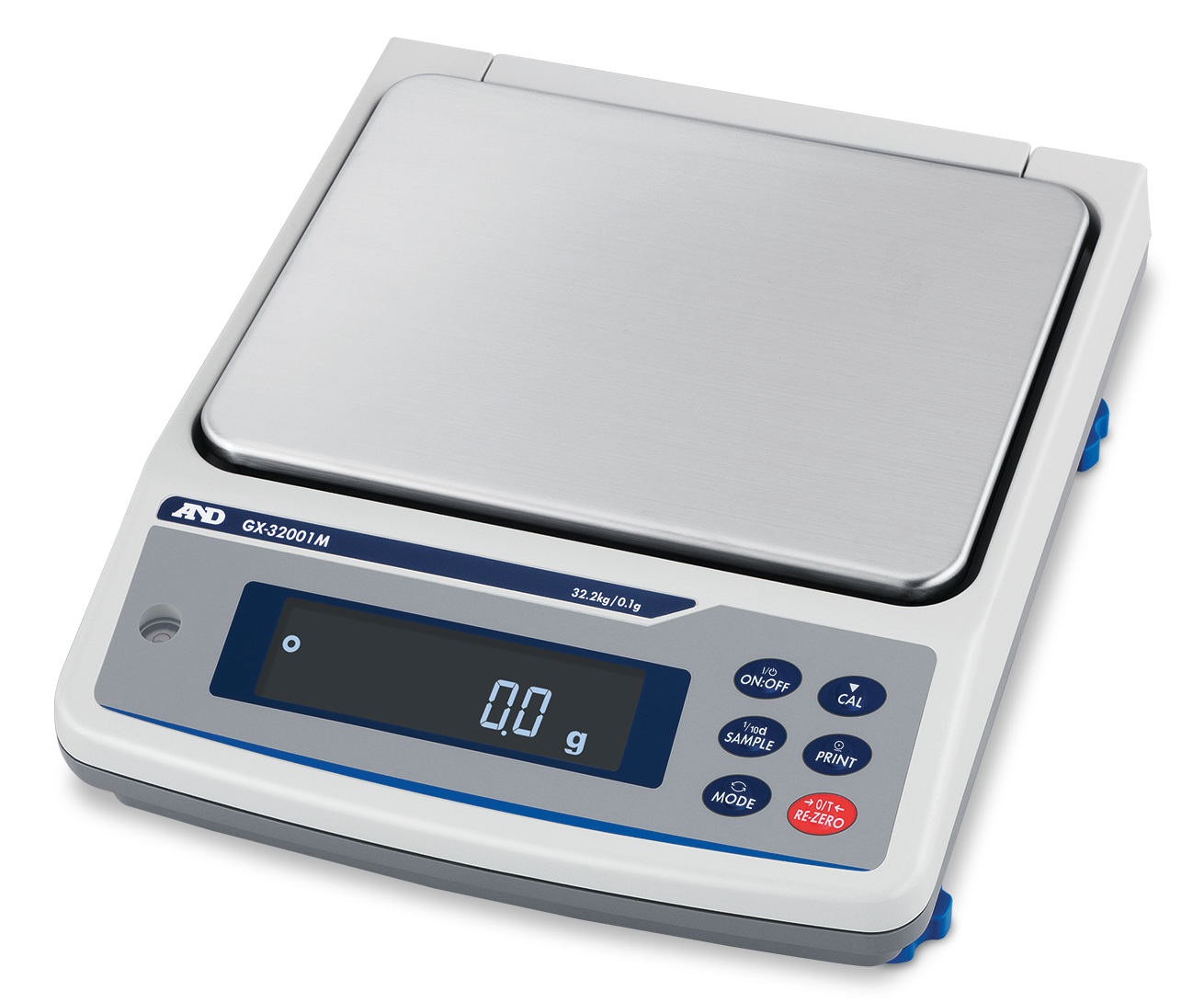

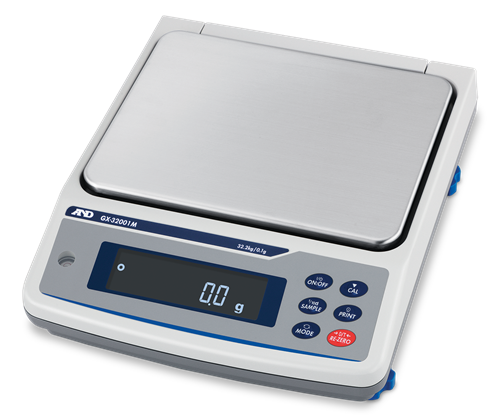

GX M Series High Capacity

An Industrial Balance with Unmatched Precision

The GX-M Series industrial balances from A&D Weighing handles industrial applications with precision normally associated with smaller balances. The internal calibration and auto environmental compensation feature supports its accurate weighing capability (readability: 0.01 to 1 gram). Multiple units of measure are available in standard capacities ranging from 8100 to 31,000 grams.

Weighing Units:
Pound, carat, pennyweight, troy ounce, grain, decimal ounce, pound/ounce

Operating Modes:
Counting, percentage

Power:
120/240 V AC adapter

Stabilization Time:
Approx. 1.5 seconds

Calibration Weight:
GX-8202M/MD: 2 kg to 8 kg
GX-10202M: 2 kg to 10 kg
GX-12001M: 5 kg, 10 kg
GX-22001M: 5 kg, 10 kg, 20 kg
GX-32001M/MD: 5 kg, 10 kg, 20 kg, 30 kg

Temperature:
Operating:
41 °F to 104 °F (-5 °C to 40 °C)

Est. Weight:
18.3 lb (8.3 kg)

Warranty:
Five-year limited

Return Policy:
A&D Weighing standard policy -
restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

GX-8202M

8.2 kg

0.01 g

0.01 g

±0.03 g

10.62 × 8.26 in
(270 × 210 mm)

11.81 × 13.98 × 4.37 in
(300 x 355 × 111 mm)

207408

GX-8202MD

2.2 kg / 8.2 kg

0.01 g / 0.1 g

0.01 g / 0.05 g

±0.02 g / ±0.1 g

10.62 × 8.26 in
(270 × 210 mm)

11.81 × 13.98 × 4.37 in
(300 x 355 × 111 mm)

207409

GX-10202M

10.2 kg

0.01 g

0.01 g

±0.03 g

10.62 × 8.26 in
(270 × 210 mm)

11.81 × 13.98 × 4.37 in
(300 x 355 × 111 mm)

207410

GX-12001M

12.2 kg

0.1 g

0.1 g

±0.2 g

10.62 × 8.26 in
(270 × 210 mm)

11.81 × 13.98 × 4.37 in
(300 x 355 × 111 mm)

207411

GX-22001M

22.2 kg

0.1 g

0.1 g

±0.2 g

10.62 × 8.26 in
(270 × 210 mm)

11.81 × 13.98 × 4.37 in
(300 × 355 × 111 mm)

207412

GX-32001M

32.2 kg

0.1 g

0.1 g

±0.2 g

10.62 × 8.26 in
(270 × 210 mm)

11.81 × 13.98 × 4.37 in
(300 × 355 × 111 mm)

207413

GX-32001MD

6.2 kg / 32.2 kg

0.1 g/1 g

0.1 g / 0.5 g

±0.2 g / ±1 g

10.62 × 8.26 in
(270 × 210 mm)

11.81 × 13.98 × 4.37 in
(300 × 355 × 111 mm)

207414

Parts

Part # Description List Price Cart / Quote
207408 Balance,A&D GX-8202M GX-M Toploader, 8.2kg x 0.01g, 120V adapter

List Price: $4,150.00
207409 Balance,A&D GX-8202MD GX-M Toploader, 2.2/8.2kg x 0.01/0.1g, 120V adapter

List Price: $3,625.00
207410 Balance,A&D GX-10202M GX-M Toploader, 10.2kg x 0.01g, 120V adapter

List Price: $4,450.00
207411 Balance,A&D GX-12001M GX-M Toploader, 12.2kg x 0.1g, 120V adapter

List Price: $3,775.00
207412 Balance,A&D GX-22001M GX-M Toploader, 22.2kg x 0.1g, 120V adapter

List Price: $4,075.00
207413 Balance,A&D GX-32001M GX-M Toploader, 32.2kg x 0.1g, 120V adapter

List Price: $4,700.00
207414 Balance,A&D GX-32001MD GX-M Toploader, 6.2/32.2kg x 0.1/1g, 120V adapter

List Price: $3,650.00

Options

Part # Description List Price Cart / Quote
207431 Balance,Accessory, A&D GXM-04, Comparator Relay Output/Buzzer/RS-232C Interface

List Price: $515.00
207432 Balance,Accessory, A&D GXM-06, Analog Output/4-20mA Interface

List Price: $605.00
97784 Balance,Accessory, A&D GX-07K, Waterproof Cable For Standard RS-232C

List Price: $370.00
102899 Option,Balance, A&D GXK-12 Animal Weighing Pan for all GX-K and GF-K models

List Price: $995.00
102898 Option,Balance, A&D GXK-31 Draft Shield For all GX-K and GF-K models

List Price: $140.00
97605 Balance OPT,Anti Theft Device A&D AD-100-2

List Price: $90.00
97785 Balance,Accessory, A&D AX:073007197A, Protective In-Use Cover

List Price: $26.50
97649 Balance OPT,AC Adapter TB:248, TB:237 or TB:648, 12 VDC 120 VAC 420mA Negative A&D BM, FX-i, FZ-i, GF, GX, GF-K, GX-K, GH, GR, HR, HR-A, HR-AZ, HR-i, MC, AD-4212 Models

List Price: $53.00
151247 Data Logger,AD-1688 3 Cables (1 m) 9-pin, 25-pin, 7-pin connectors, to USB, Time & Date, 5000 memory storage

List Price: $370.00
196128 Printer,A&D AD-8127 Dot Matrix, Statistical, Includes Power Supply and Serial Cable. GLP/GMP/GCP/ISO Compliant.

List Price: $1,030.00
