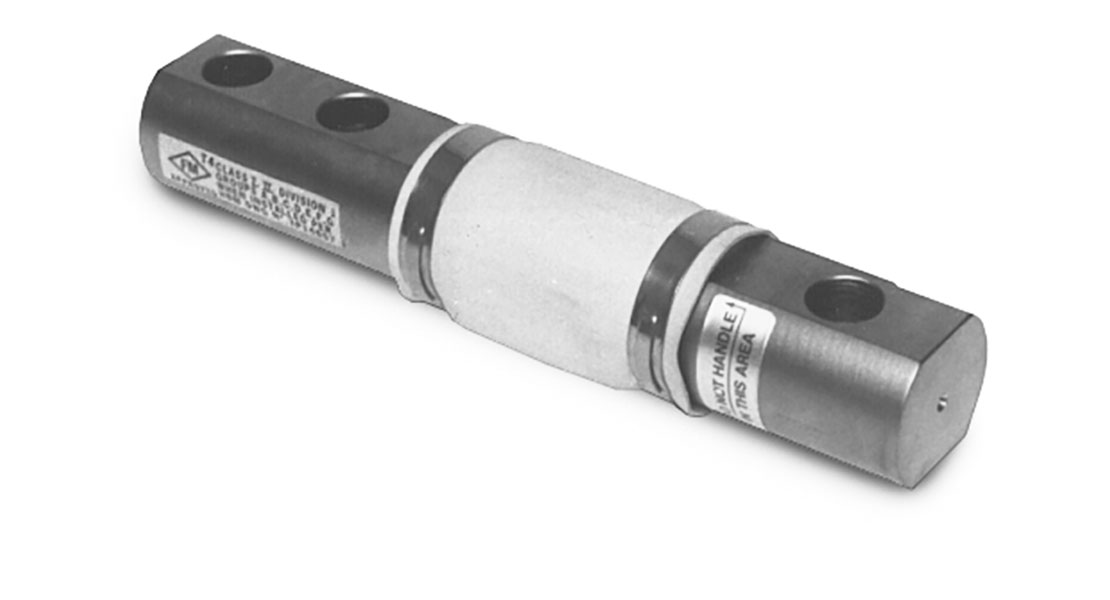

HBK® BBS Single-Ended Beam, Alloy Steel Load Cell

Low-cost bending beam load cell designed for precision force and weight measurement. Features excellent performance and protection against adverse environments, alloy steel sensing elements and low mounting sensitivity. Capacities range from 50 lb to 1,000 lb. Complete with 10 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
750 (± 10) ohm

Input Resistance:
810 (± 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Safe Sideload:
50% full scale

Rated Excitation:
5 to 15 VDC

Nonlinearity:
0.03% full scale

Hysteresis:
0.03% full scale

Insulation Resistance:
1,000 megohm

Deflection at Capacity:
50 lb: 0.015 in
100 lb: 0.025 in
200 to 250 lb: 0.030 in
500 lb: 0.020 in
1,000 lb: 0.040 in

Cable Length:
10 ft

Cable Diameter:
0.190 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited

Approvals:
FM

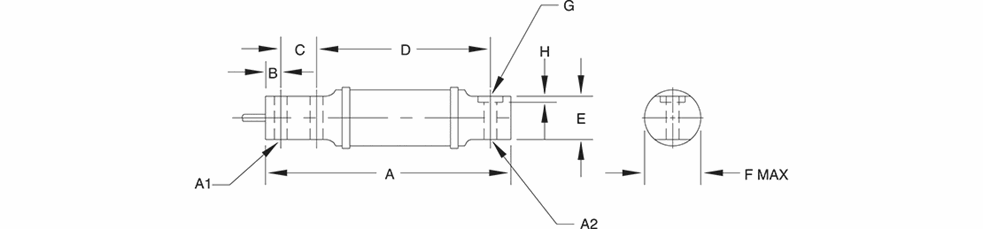

Rated Capacity A A1 A2 B C D E F
lb/in
50 to 100 6.00 0.31 0.31 0.38 0.88 4.25 1.06 1.25
200 to 1,000 6.63 0.51 0.51 0.50 1.12 4.25 1.06 1.25





Resources / Downloads

Title Download Email
HBM BBS Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
17352 Load Cell,CLB BBS-50- 10121 50lb 10ft 2mv/v 750 Ohm FM EW HBM

List Price: $975.00

17353 Load Cell,CLB BBS-100- 10121 100lb 10ft 2mv/v 750 Ohm FM EW HBM

List Price: $975.00

17354 Load Cell,CLB BBS-200- 10121 200lb 10ft 2mv/v 750 Ohm FM EW HBM

List Price: $975.00

17355 Load Cell,CLB BBS-250- 10121 250lb 10ft 2mv/v 750 Ohm FM EW HBM

List Price: $975.00

17356 Load Cell,CLB BBS-500- 10121 500lb 10ft 2mv/v 750 Ohm FM EW HBM

List Price: $975.00

17357 Load Cell,CLB BBS-1K- 10121 1000lb 10ft 2mv/v 750 Ohm FM EW HBM

List Price: $975.00

Related Products

rl-RL40BBS-load-cell

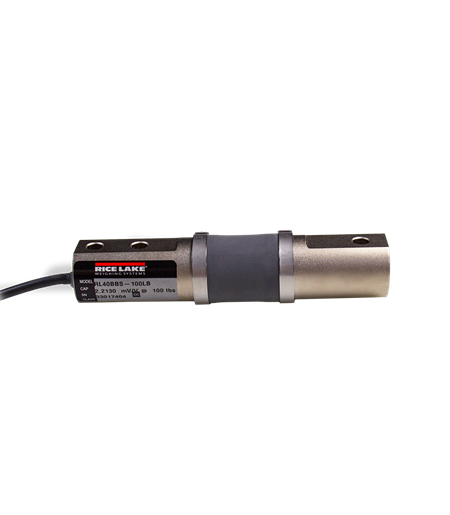

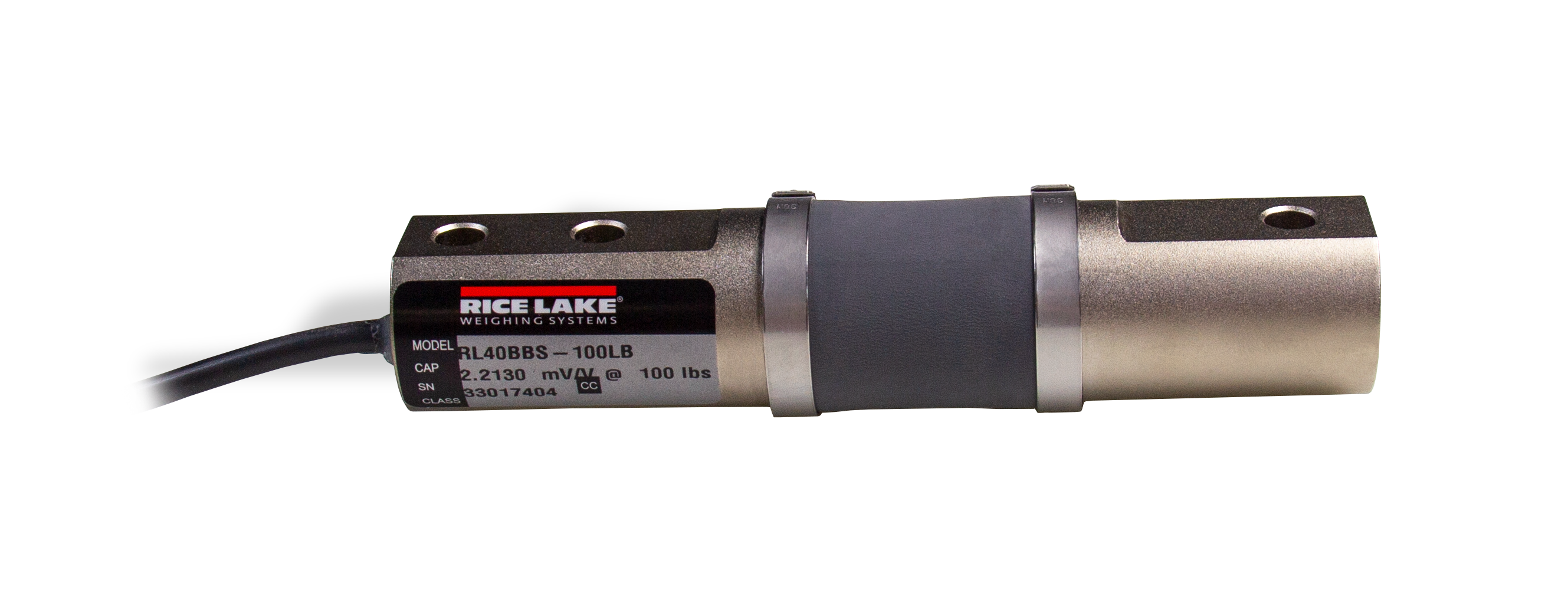

Rice Lake RL40BBS Alloy Steel, Single-Ended Beam Load Cell
