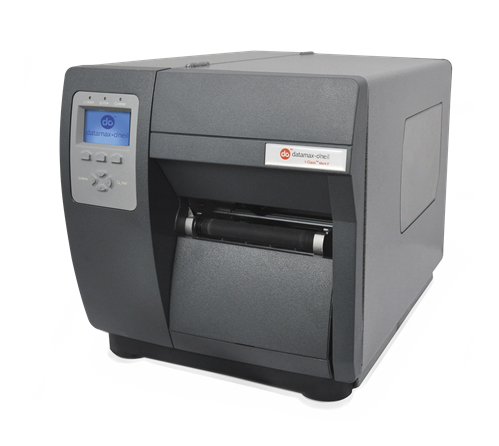

Honeywell I-4212e Mark II Bar Code Printer

Print Speed:
12 in per second (305 mm)

Resolution:
203 DPI (8 dots/mm)

Maximum Print Width:
4.094 in (104 mm)

Media Width:
1 in to 4.65 in (25 to 118 mm)

Print Length:
0.25 in to 99 in (6 mm to 2,475 mm) .75 in (19 mm) minimum print length with optional present sensor

Supply Roll:
8 in (203 mm) maximum diameter on 1.5 in to 3 in (38 mm to 76 mm) core.
Fan-fold stock accepted from rear of printer

Revolving Media Hubs:
Standard in 1.5 in and 3 in; optional 40 mm

Ribbons:
Industry standard ribbon widths; 1 in (25 mm) ribbon core, 1,968 ft (600 m) in length
Auto-sensing option

Bar Codes:
Code 39, Interleaved 2 of 5, Code 128 (subsets A,B and C), Codabar, LOGMARS, UPC-A, UPC-E, UPC 2 and 5 digit addendums, EAN-8, EAN-13, EAN 2 and 5 digit addendums, UPC random weight, Code 93, MSI Plessey, Universal Shipping Container Symbology, UCC/EAN Code 128, QR Code, Postnet, Code 128 MOD 43, PDF 417, Micro PDF, UPS MaxiCode (mode 2 and 3), Datamatrix, Telepen, Aztec Code

Graphics Support:
.PCX, .BMP and .IMG files

Dimensions:
(H x W x D): 12.7 x 12.62 x 18.6 in
(322.6 x 320.5 x 472.4 mm)

Weght:
50 lbs

Interfaces:
Centronics® parallel port (IEEE 1284 compliant), RS-232 (DB-9F) at 300 to 38,400 BPS, USB, optional Ethernet

Power Source:
Auto-sensing 90-264 VAC at 47-63 Hz; specify appropriate power cord
when ordering

Approvals:
UL listed, CSA certified, CE marked, RoHS and WEE compliant

Warranty:
One-year limited warranty on parts.
One-year or 1 million linear inches on original print head
90 days on replacement print head
