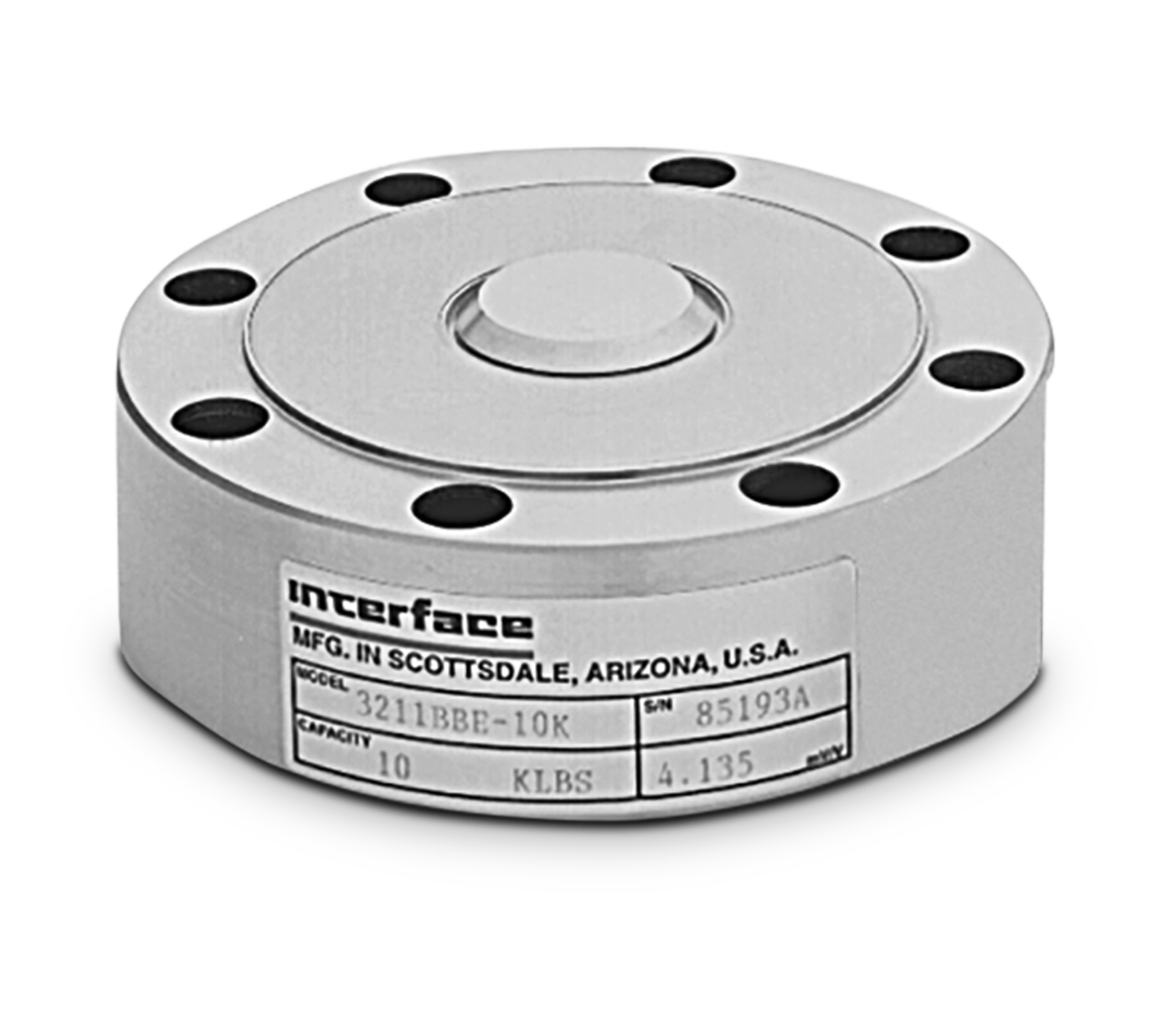

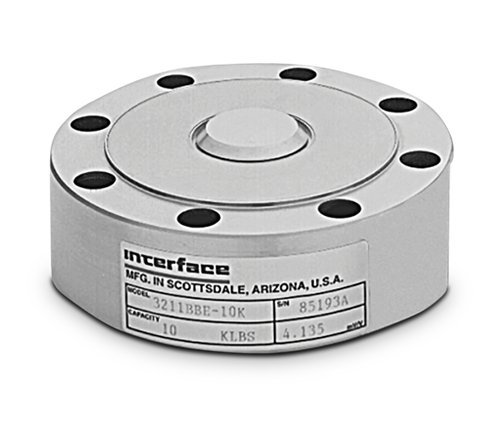

Interface® 3200 Series Stainless Steel, Compression Disk Load Cell

Designed specifically for difficult applications in harsh environments, these units incorporate welded stainless steel diaphragms to resist corrosion and seal against moisture intrusion. These load cells provide high accuracy, resistance to off-center loads with minimum error, excellent temperature specifications and low height envelope for ease of installation. Capacities range from 5,000 lb to 100,000 lb. Complete with 20 ft of load cell cable.

Request More Information
rl-interface-3200-series-compression-disk-load-cell

Full Scale Output:
4.0 mV/V

Bridge Resistance:
350 ohm nominal

Material/Finish:
Stainless steel

Temperature:
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP66/68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (20 V maximum)

Nonlinearity:
0.05% full scale

Hysteresis:
0.04% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

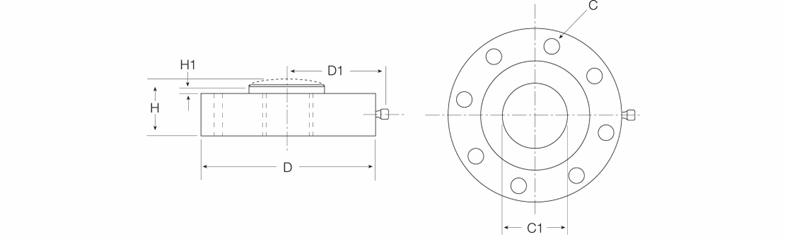

Rated Capacity C C1 D D1 H H1
lb/in
5,000 to 10,000 0.28 dia 8 Holes 1.34 4.12 2.56 1.37 0.12
25,000 to 50,000 0.34 dia 4 Holes 1.57 4.75 2.87 1.75 0.12
100,000 0.47 dia 12 Holes 3.12 7.50 4.25 2.25 0.25





Resources / Downloads

Title Download Email
Interface 3200 Series Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Model 3211

Part # Description List Price Cart / Quote
36140 Load Cell,CDK 3211-BBE-5k Low Profile SST HS 5000lb 20ft Interface 4mV/V 350 OHM IP66/68

List Price: $1,600.00
36141 Load Cell,CDK 3211BBE-10k Low Profile SST HS 10,000lb 20ft Interface 4mV/V 350 OHM IP66/68

List Price: $1,600.00

Model 3221

Model 3231
