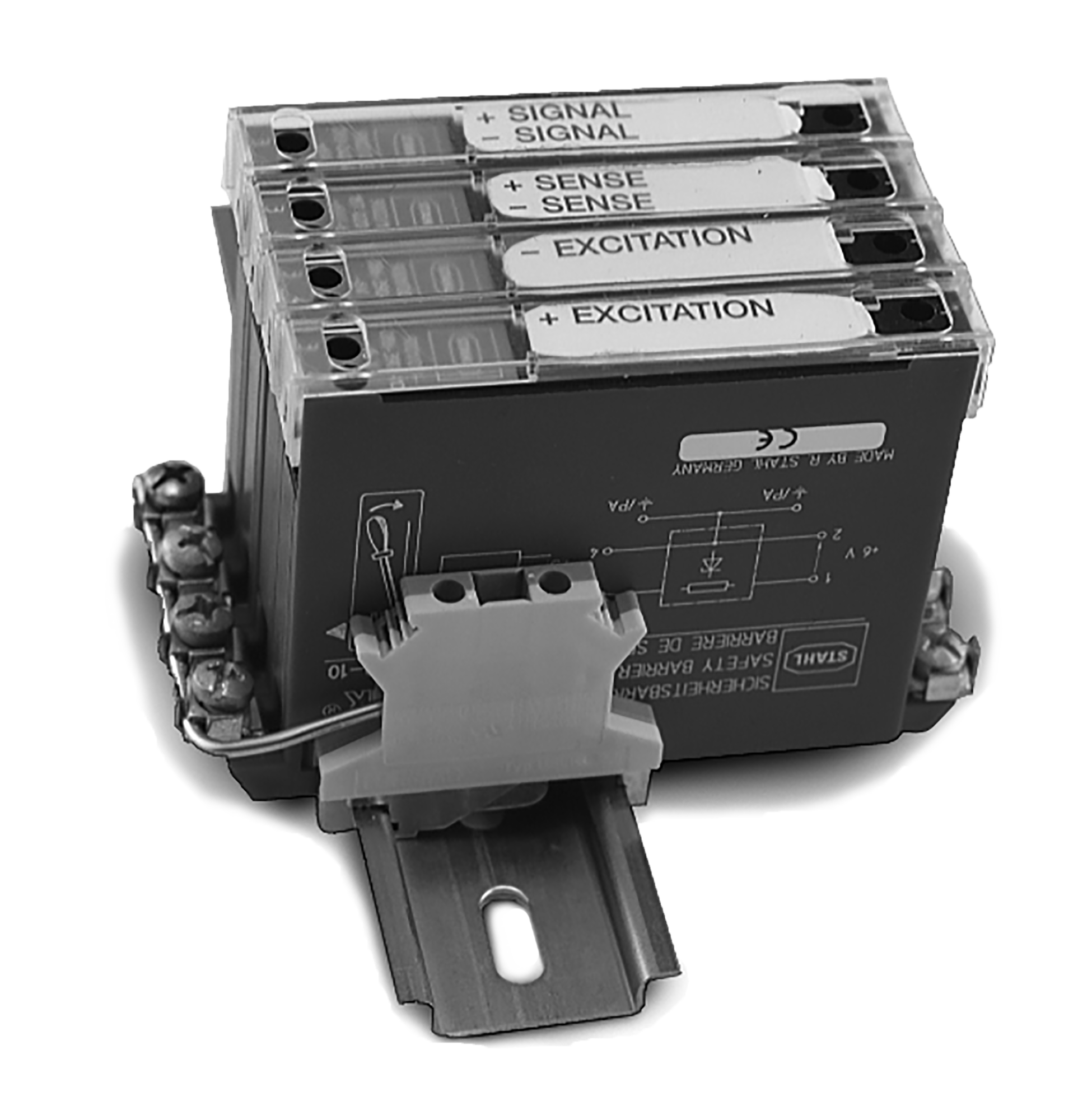

Intrinsic Safety Barriers

  • Each system features excitation, sense and signal barriers
  • Available in an enclosure for external mounting or in a chassis mount version
  • R Stahl® and Pepperl&Fuchs barriers that are approved by Factory Mutual (FM)
Request More Information

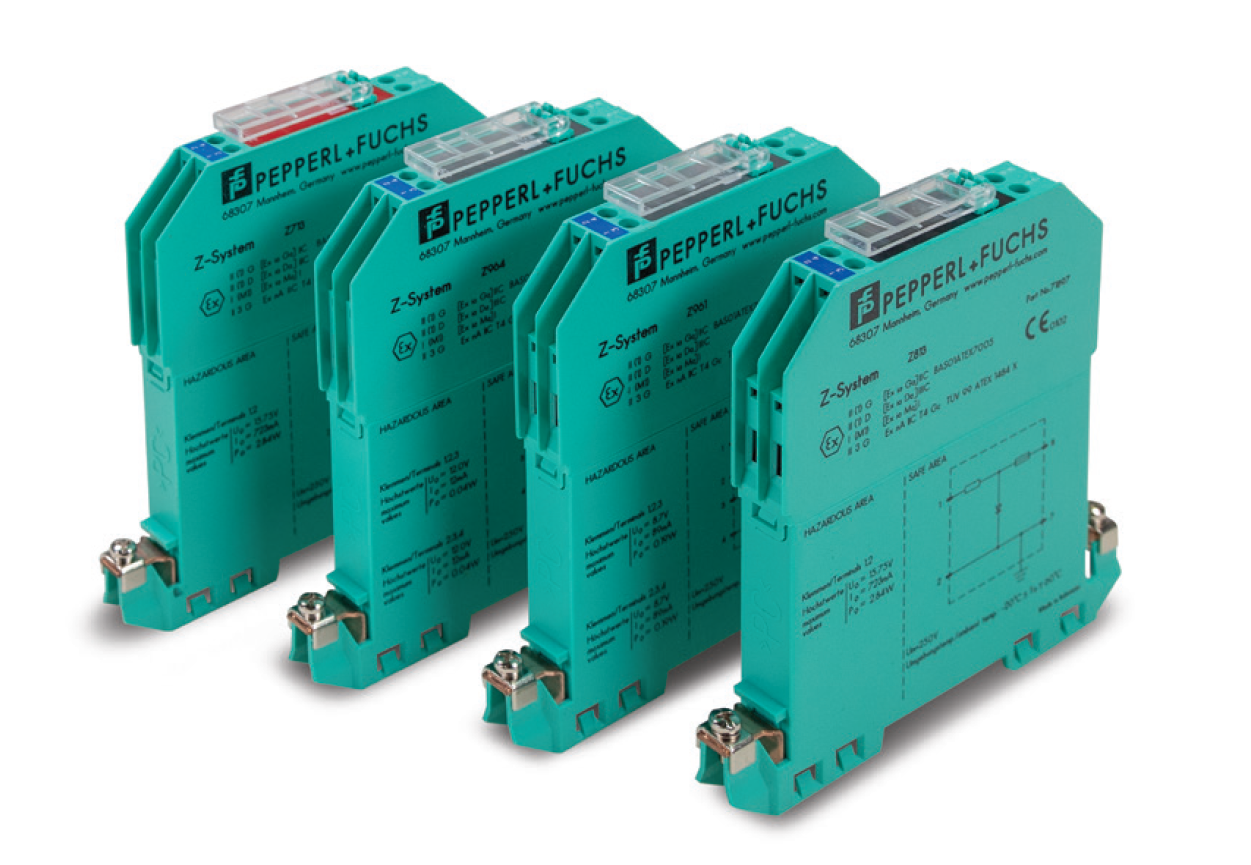

Pepperl&Fuchs-barriers

Intrinsically Safe Barriers

Install these barriers in your safe area to limit the current to the hazardous environment, and insure voltage remains at an intrinsically safe level.

Part # Voltage Range Nominal Resistance Open Circuit Voltage Short Circuit
Current		 Classifications
31201:
+ Excitation 9001/01-158-390-101		 +12 VDC 55 ohm 15.8 VDC 390 mA FM approved, UL listed, CSA certified, SA, CE marked
31202:
± Excitation 9002/10-187-270-001		 ±6 VDC 46 ohm 9.3 VDC 270 mA FM approved, UL listed, CSA certified, SA, CE marked
31540:
+ Excitation 9001/01-083-442-101		 +6 VDC 26 ohm 8.3 VDC 442 mA FM approved, UL listed, CSA certified, SA, CE marked
70724:
+ Sense 9001/01-086-075-101		 +6 VDC 129 ohm 8.6 VDC 41 mA FM approved, UL listed, CSA certified, SA, CE marked
30263:
± Signal 9002/77-093-040-001		 ±6 VDC 519 ohm 9.3 VDC 20 mA FM approved, UL listed, CSA certified, SA, CE marked
31542:
RS-232 9002/77-093-300-001 		 ±6 VDC 76.6 ohm 9.3 VDC 150 mA FM approved, UL listed, CSA certified, SA, CE marked
30264:
± Sense 9002/10-187-020-001		 ±6 VDC 516.5 ohm 9.33 VDC 20 mA FM approved, UL listed, CSA certified, SA, CE marked
30266:
- Excitation 9001/00-086-390-101		 -6 VDC 30 ohm 8.6 VDC 390 mA FM approved, UL listed, CSA certified, SA, CE marked
69491:
- Excitation 9001/02-016-150-111		 ±0.7 VDC 20 ohm 1.64 VDC 150 mA FM approved, UL listed, CSA certified, SA, CE marked
69492:
+ Sense 9001/01-168-020-101		 +12 VDC 918 ohm 16.8 VDC 20 mA FM approved, UL listed, CSA certified, SA, CE marked
69493:
- Sense 9001/02-016-015-101		 ±0.7 VDC 127 ohm 1.64 VDC 15 mA FM approved, UL listed, CSA certified, SA, CE marked
72521:
+ Excitation 9001/01-199-390-101		 +16 VDC 67 ohm 19.9 VDC 390 mA FM approved, CSA certified, CE marked
30265:
+ Excitation 9001/01-086-390-101		 +6 VDC 30 ohm 8.6 VDC 390 mA FM approved, CSA certified, CE marked
221779:
+ Excitation Barrier, Z713		 +13.7 VDC 22 ohm 15.75 VDC 160 mA FM Approved, cULus, ATEX, IECEX
221663:
- Excitation Barrier, Z813		 -13.7 VDC 22 ohm 15.75 VDC 160 mA FM Approved, cULus, ATEX, IECEX
221662:
± EX Barrier, Z966		 ±10 VDC 166 ohm 12 VDC 50 mA FM Approved, cULus, ATEX, IECEX
221660:
± Signal Barrier, Z961 		 ±6.5 VDC 100 ohm 8.7 VDC 100 mA FM Approved, cULus, ATEX, IECEX
221661:
± Sense Barrier, Z964		 ±10 VDC 1000 ohm 12 VDC 50 mA FM Approved, cULus, ATEX, IECEX
