Product PDF

Ishida Astra II Price Computing Scale with Printer

  • Programmable function keys
  • Blue alphanumeric LCD display
  • Convenient side-loading label feature
  • Wired Ethernet
  • Customer display
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL Listed

WARNING: Cancer and Reproductive Harm California Proposition 65

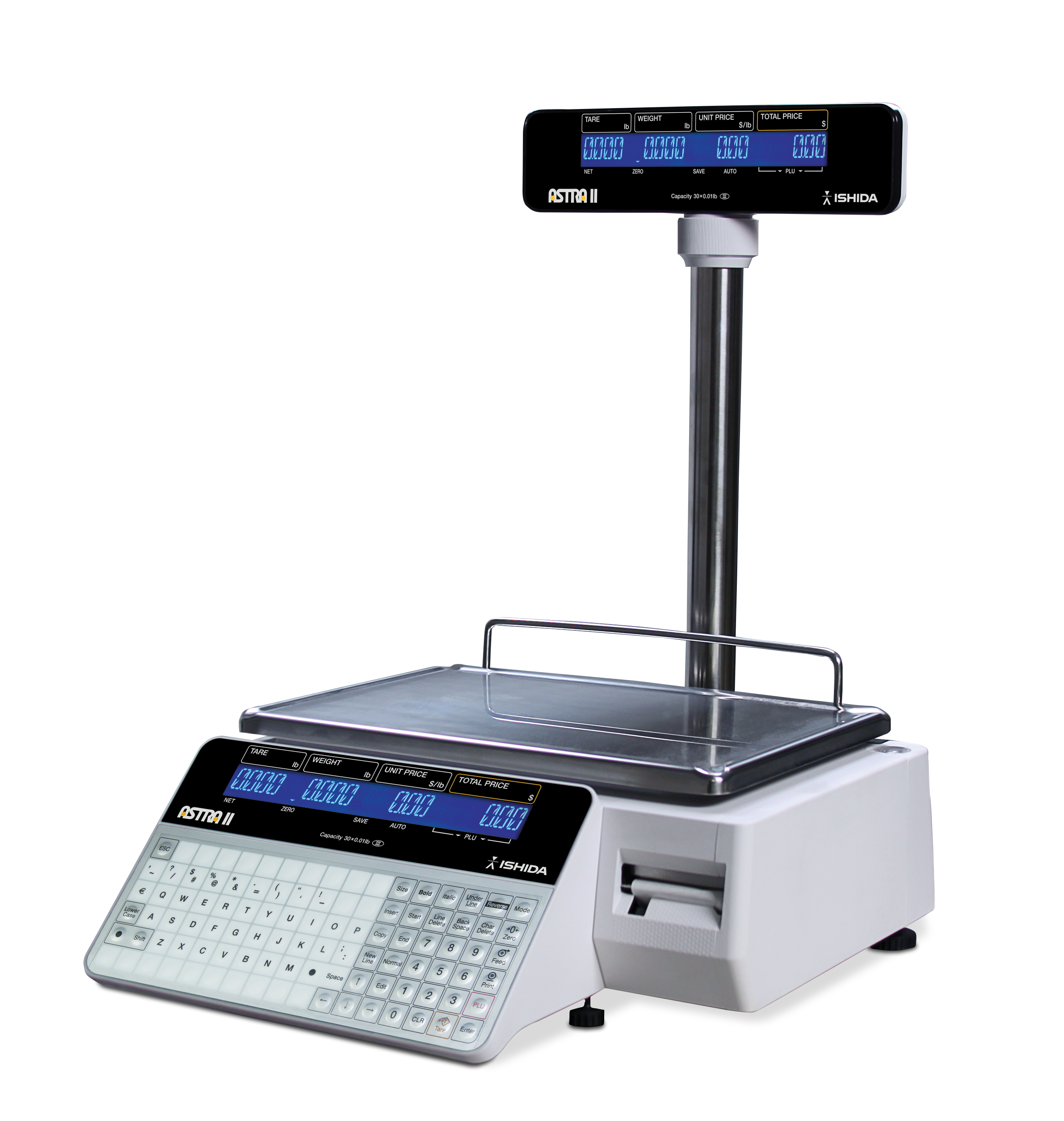

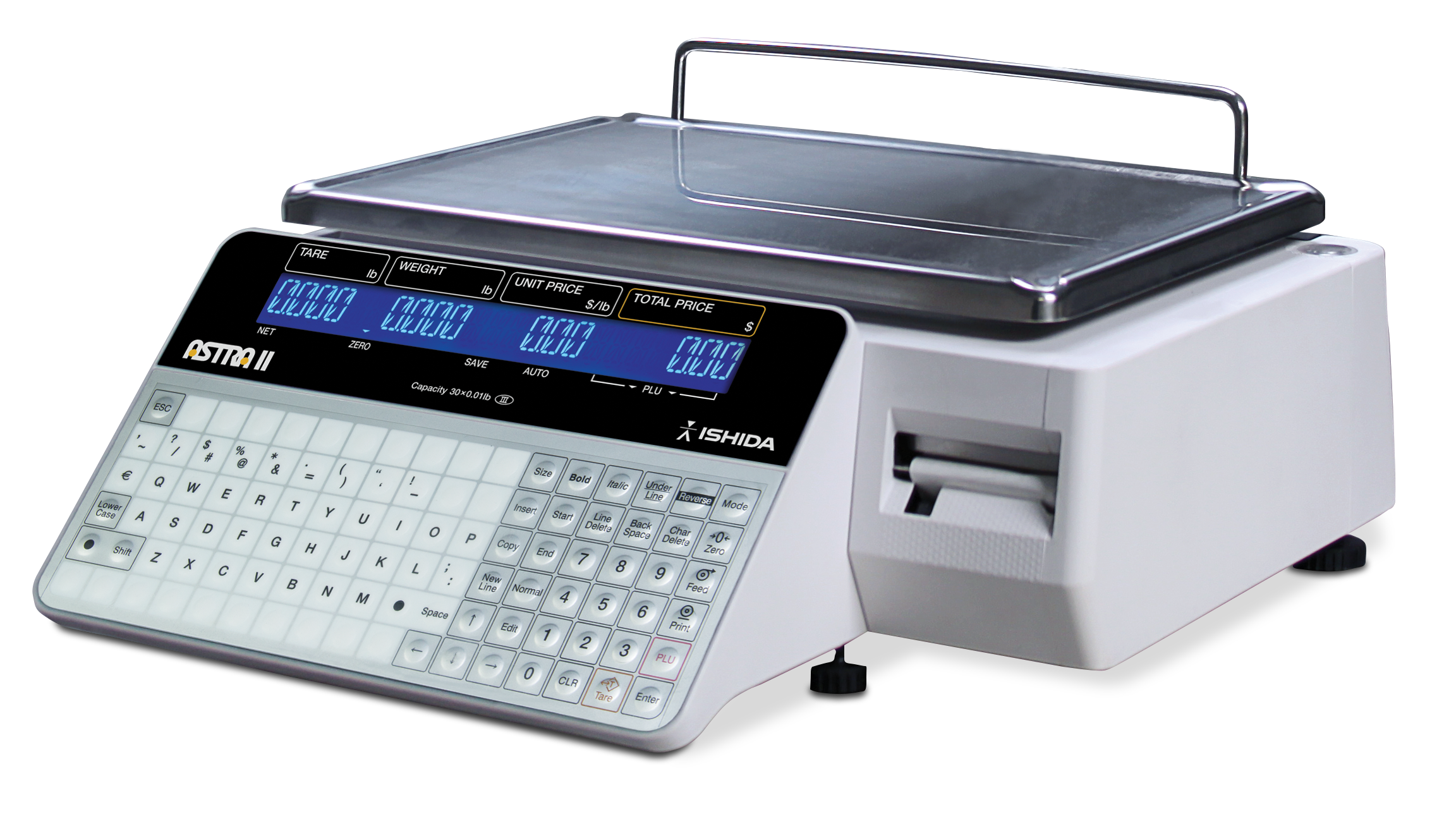

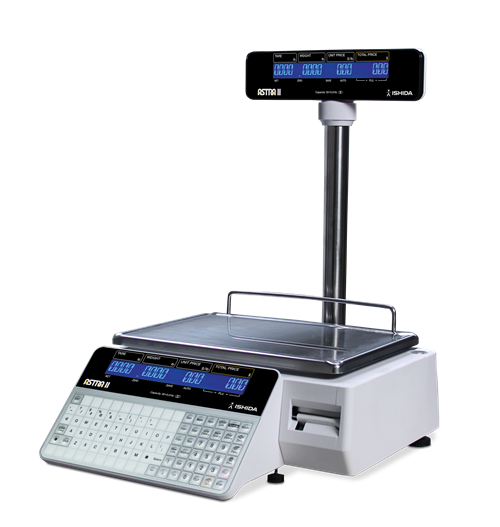

Ishida Astra II

Retail Scale with Printer

Precise Computing Performance
Engineered for precision and consistency, the Ishida Astra II price computing scale with printer combines unmatched performance with an ergonomic design that enhances customer convenience. Perfect for supermarkets, bakeries, c-stores, delis and more, the Astra II incorporates bright, easy-to-read displays with an easy label loading feature and user-friendly keyboard design for enhanced user operation.

To speed up setup, the Astra II features an optional software tool that allows quick PLU editing using a PC. In addition, the configuration parameters can be saved for safe backup. With memory storage of 2 MB, the Astra II can store a large amount of PLUs, tares and extra messages, virtually ensuring you will never run out of memory.

The Astra II produces eye-catching point-of-purchase labels up to 2.5 inches (64 mm) in width and 6.9 inches (175 mm) long—all at an incredibly fast 3.9 inches (100 mm) per second. With 84 one-touch preset keys and 168 presets, these programmable function keys allow for efficient transactions and ease-of-use for operators.

Power:
AC 100 to 240 V, 50/60 Hz

Power Consumption:
Standby: 50 W
In operation: 100 W

Resolution:
Display: 3,000 divisions

Communication Ports:
Ethernet: TCP/IP 10/100 Base-T
USB: data backup and restore

Memory Capacity:
2 MB

Annunciators:
Net, zero, save, auto

Display:
Blue alphanumeric LCD display (23 digits, 16 segments)

Display Items:
Tare: four-digits
Unit price: five-digits
Total price: six-digits

Keys/Buttons:
84 one-touch preset keys, 168 presets (assign two items/key)

Printing Speed:
3.9 in (100 mm) per second

Printing:
Direct thermal 2.2 in (56 mm) (448 dot, 8 dot/mm)

Label Size:
Width: 1.5 to 2.5 in (38 to 64 mm)
Length: 1.2 to 6.9 in (30 to 175 mm)

Label Roll:
Inside diameter: 1.6 in (40 mm)
Outside diameter: 3.9 in (100 mm)

Label Backing Paper:
Width: Up to 2.6 in (66 mm)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
One-year limited

Approvals:
NTEP 07-005
UL

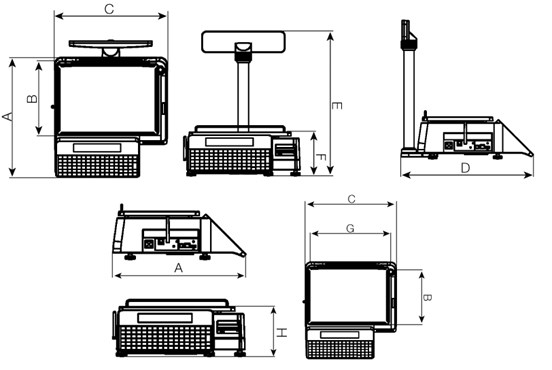

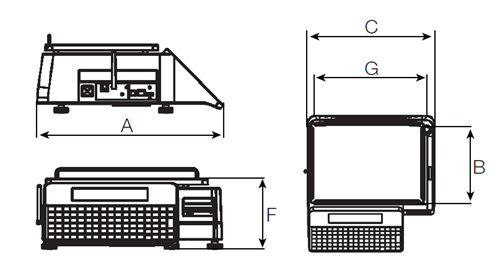

Dimensions: Bench
Unit

17.2 × 16.1 × 6.3 in (437 × 410 × 159 mm)
Stainless Steel Platter
10.5 × 14.6 in (268 × 370 mm)

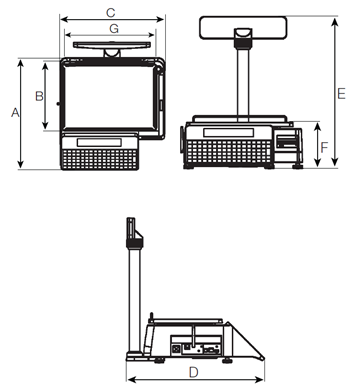

Dimensions: Pole
Unit
17.2 × 16.1 × 6.3 in (437 × 410 × 159 mm)
Stainless Steel Platter
10.5 × 14.6 in (268 × 370 mm)
Unit with Pole
19.7 × 16.1 × 20.6 in (500 × 410 × 524 mm)





Resources / Downloads

Title Download Email
Astra II Catalog Page Download Email
Astra II Label Format Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Astra II Price Computing Scale With Printer Operation Manual A Download Email Retail Equipment No

Title Collateral Wizard Request Download Email Category
Astra II Price Computing Scale Printer Request Download Email Retail Equipment|Basic Price Computing Scales

Title Version Size Release Date Download Email
Astra II Label Library 1 47.6 KB 06/06/2018 Download Email
SLP-Lite Astra II 2.40d 28.2 MB 03/15/2018 Download Email

Title View Download Email Category
Astra II Customer-facing Display View Download Email Basic Price Computing Scales
Astra II Onboard Ethernet TCP/IP View Download Email Basic Price Computing Scales
Astra II PLU Demonstration View Download Email Basic Price Computing Scales
Astra II Scale Management Software View Download Email Basic Price Computing Scales
Simple Retail Scale Solutions View Download Email Retail Equipment

Parts

Astra II

Part # Description List Price Cart / Quote
185822 Retail Scale, Astra II Bench, VFD display, 0-30lbs x 0.01, Integrated Printer, 115VAC IshidA

List Price: $1,863.00
185823 Retail Scale, Astra II Pole, VFD display, 0-30lbs x 0.01, Integrated Printer, 115VAC Ishida

List Price: $1,957.00
190641 CD,Astra II ScaleLink Pro 5 Lite, license file purchased seperate, Ishida

Consult
190642 License, Astra II ScaleLink Pro 5 Lite, Maintenance Software, Ishida

List Price: $149.00

Options

Part # Description List Price Cart / Quote
47977 Retail Scale OPT,Produce Platter 9-1/2 in Deep x 13-1/2 in Wide Ishida

List Price: $82.00
47976 Retail Scale OPT,Fish Platter 9-1/2 in Deep x 13-1/2 in Wide Ishida

List Price: $104.00
47341 Receipt Paper,AC Series Thermal Printer 64mm Wide x 50 Meter Roll 1-9/16 Core DIA Sold Per Roll Ishida

List Price: $5.50
184273 LIT,Manual Astra II TECH Technical

Consult
184270 LIT,Manual Astra II OP Operation

Consult
184274 LIT,Manual Astra II OC Operation Quick Reference Card

Consult
170916 Keysheet, Operator Insert Uni-3, Astra II Ishida

List Price: $26.50

Label Stock
