Ishida Uni-3 Series

As of: Thursday, November 21, 2024
Save or Print to PDF
Hdimage(1)

Standard Features

  • Blue alphanumeric LCD display (23 digits, 16 segments) or backlit alphanumeric LCD display (23 digits, 7 segments)
  • Dual-range weighing (0 to 15 lb × 0.005 lb/15 to 30 lb × 0.01 lb)
  • Side-load label
  • Fast printing speed (3.9 in/100 mm per second)
  • Meat nutrition and 2020 nutrition labeling
  • Multiple label formats
  • Powerful batch printing feature
  • Static TCP/IP Ethernet communication
  • 84 one-touch preset keys, 168 presets (assign two items/key)
  • Flash ROM for simple update of application software
  • 2 MB memory
  • Proportional tare
  • Compatible with third-party communication software, including Upshop's InterScale and Invafresh's ePlum

Simple and Efficient Price Computing Scale

With premium-class presets, fast print speed and extensive labeling functions, the Ishida Uni-3 Series offers more flexibility and features—all for less cost than comparable price computing scales with printers.

With three models and two display types, operators can easily find an Ishida Uni-3 to fit specific application needs. Ethernet or optional wireless communication enables any Uni-3 to be added to an existing network—ensuring operators have consistent control of all scales in your store.

Product management software ensures easy file maintenance as well as PLU and tare weight consistency throughout your operation. The power of the Uni-3 is at your fingertips with configurable preset buttons to represent PLUs, container tare values, label formats, images and logos.

The Uni-3 L1 model features a vibrant blue alphanumeric display with a sharp white 16-segment capability. The Uni-3 L2 model features a clear LCD display with one line alphanumeric and one line numeric. Each model offers a matching customer display.

Ishida Uni-3 Series Product Specifications

Capacity (Dual Range):
0 to 15 × 0.005 lb/15 to 30 × 0.01 lb

Capacity (Single Range):
0 to 60 × 0.02 lb option

Weighing Resolution:
3,000 display divisions maximum

Display Types:
L1: LCD, blue alphanumeric (23 digits 16 seg)
L2: LCD, backlight, alphanumeric (192 × 16 DM + 23 digits 7 seg)

Display Items:
Tare: Four-digits
Weight: Five-digits
Total price: Six-digits

Preset Keys:
84 one-touch preset keys 168 presets (assign two items/key)

Memory Capacity:
2 MB

Communications:
TCP/IP 10/100 Base T Ethernet

Platter:
14.5 × 10.5 in

Printing Speed:
3.9 in (100 mm) per second

Printing:
Direct thermal 2.2 in (56 mm)

Label Size:
Width: 1.5 to 2.5 in (38 to 64 mm)
Length: 1.2 to 6.9 in (30 to 175 mm)

Label Roll:
Inside diameter: 1.6 in (40 mm)
Outside diameter: 3.9 in (100 mm)

Label Backing Paper:
Width: Up to 2.6 in (66 mm)

Power Supply:
AC100 to 240 V, 50/60 Hz

Power Consumption:
Stand-by: 50 W
In operation: 100 W

Classification:
NTEP CC 07-005
UL Listed

Warranty:
One-year limited

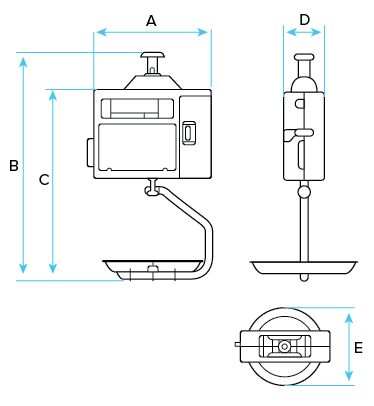

Ishida Uni-3 Series Dimensions

Parts

Part # Description
165200 Retail Scale, Uni-3L1 Bench, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida
165201 Retail Scale, Uni-3L1 Pole, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida
173882 Retail Scale, Uni-3L1 Bench, LCD display, 60 x 0.02lbs, Integrated printer, 115VAC Ishida
173883 Retail Scale, Uni-3L1 Pole, LCD display, 60 x 0.02lbs, Integrated printer, 115VAC Ishida
219463 Retail Scale, Uni-3L2 Retail Scale, Uni-3L2 Bench, Internal Wireless option, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida
165202 Retail Scale, Uni-3L2 Bench, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida
165203 Retail Scale, Uni-3L2 Pole, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida
173884 Retail Scale, Uni-3L2 Bench, LCD display, 60 x 0.02lbs, Integrated printer, 115VAC Ishida
173885 Retail Scale, Uni-3L2 Pole, LCD display, 60 x 0.02lbs, Integrated printer, 115VAC Ishida
219464 Retail Scale, Uni-3L1 Retail Scale, Uni-3L1 Bench, Internal Wireless option, LCD display, 0-15lbs x 0.005, 15-30lbs x 0.01 Integrated printer, 115 VAC Ishida

Options

Part # Description
170541 Option,Liner Free Kit Uni-3 Ishida
47976 Retail Scale OPT,Fish Platter 9-1/2 in Deep x 13-1/2 in Wide Ishida
47977 Retail Scale OPT,Produce Platter 9-1/2 in Deep x 13-1/2 in Wide Ishida
Communication
168751 License,Uni-3 SLP5 Lite ScaleLink Pro 5 lite Uni-3 item management maintenance
168745 Option,Internal Wireless Uni-3 bench and pole models, 802.11b/g, 305mm Harness, Kit with Five M4x8 Button Head Screws Ishida
78860 Cable,Ethernet Cross RJ45 to RJ45, 7FT
Manuals and Service Tools
160906 USB Memory, Stick 1G Hagiwara, UDG4-1GDRJS, Ishida
166736 LIT, Manual Uni-3 Tech Uni-3 Technical Manual
166737 LIT,Operation Manual Ishida Uni-3 Series Price Computing Scale with Printer (English)
162370 LIT,Addendum Ishida UNI-3 Operation Quick Reference (English)
