Product PDF

Ishida Uni-7 RP Remote Scale Base

  • Large color touchscreen (7 in)
  • Adjustable touchscreen viewing angle
  • Dual-range weighing (0 to 15 lb × 0.005 lb/15 to 30 lb × 0.01 lb)
  • Front-load label cassette
  • Supports multiple label formats
  • Internal wireless communications, 802.11a/b/g/n/ac
  • Ethernet communications
  • Up to 99 pages of preset keys
  • 77 tactile keys
  • 4 MB standard memory expandable to 2 GB
  • 30+ selectable fixed bar code formats
  • 2020 nutrition labeling
  • Compatible with third-party communication software, including Upshop's InterScale and Invafresh's ePLUM
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65
Portals 0 Products A4de6970287b4b4c8611ee1fa8c596d0 Orig

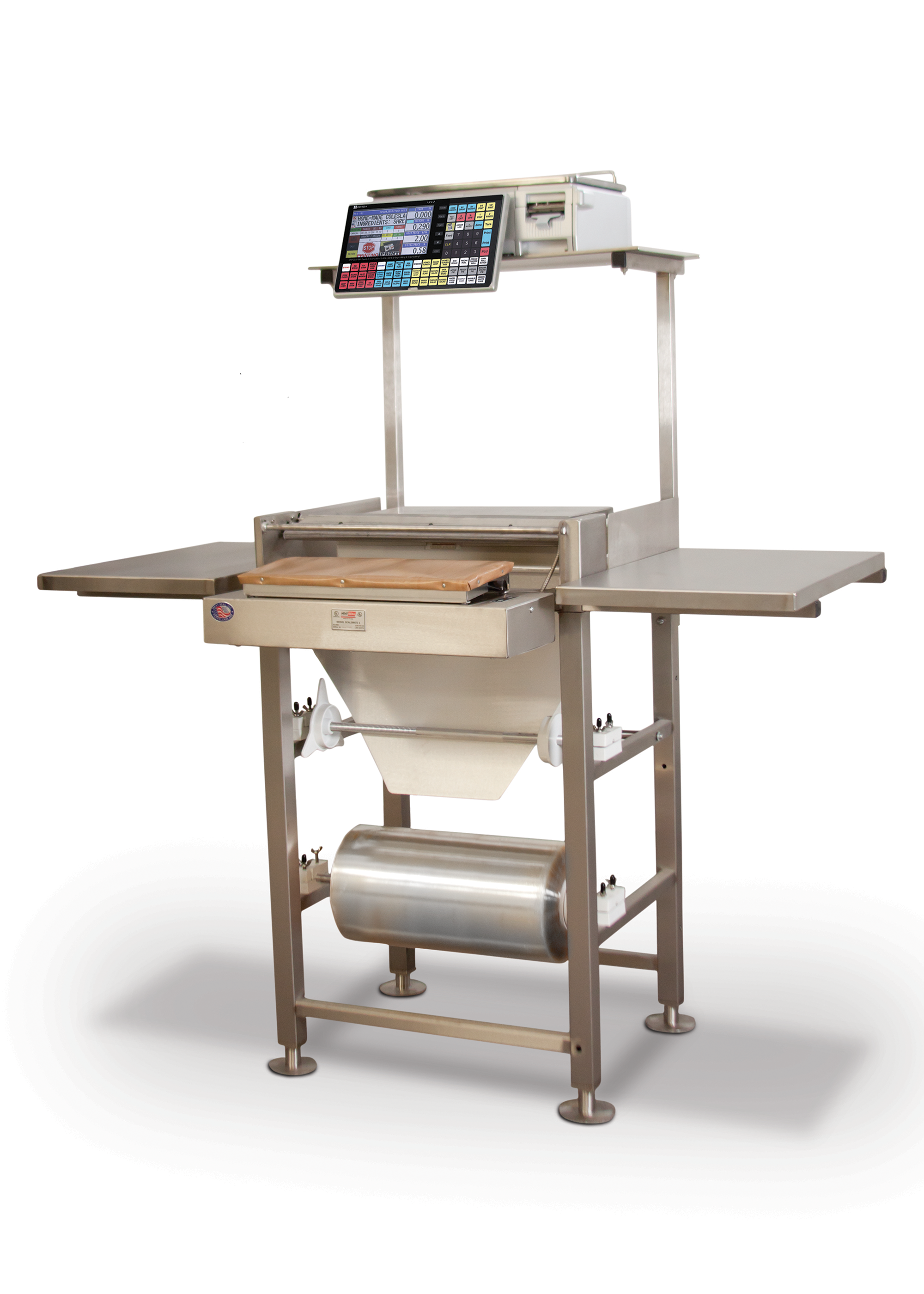

Flexible Operation for Hand Wrapping Station

The Uni-7 RP offers flexibility and functionality for multiple working conditions. Uni-7 RP with remote scale base is the perfect model to integrate with stretch film wrapping machines and manual hand-wrapping stations.

Positive input response means operators feel a tactile sensation and hear a beep when the screen or a button is pressed. Receipt, label, scanner and cash drawer connections are standard features, and the front-loading label cassette saves time and space. The Uni-7 RP can communicate with other Uni-7 models and PCs via Ethernet communication.

Capacity (Dual Range):
0 to 15 x 0.005 lb/15 to 30 × 0.01 lb

Display:
Operator: Color LCD, 7in
No customer display

Display Items:
Tare: Four-digits
Unit price: Six-digits
Weight: Five-digits
Total price: Six-digits

Rear Display:
Not available

Preset Keys:
1980: 20 × 99 pages

Memory:
4MB expandable to 2GB

Communications:
Static TCP/IP 10/100 Base T Ethernet
Wireless WEP/WPA/WPA2

Interface:
USB port

Platter:
15.5 × 9.5 in (394 × 241 mm)

Print Head:
Direct thermal 2.2 in (56mm)

Print Speed:
3.2/ 3.9/ 4.7/ 5.9 in/sec
(80/ 100/ 120/ 150 mm/sec)

Label Size:
Width: 1.2 to 2.5 in (30 to 64 mm)
Length: 0.8 to 7.9 in (20 to 200 mm)



Label Roll:
Inside diameter: 1.6 in (40 mm) min
Outside diameter: 3.9 in (100mm) max

Label Backing Paper:
Width: Up to 2.6 in (66 mm)

Power Supply:
AC100 to 240V, 50/60Hz

Power Consumption:
Stand-by: 50W
In operation: 120W

Classification:
NTEP CC 07-099
UL listed

Warranty:
One-year limited

Resources / Downloads

Title View Email Category Type
Community Matters View Email Retail Equipment|Retail Accessories Application Story

Title Download Email
Ishida Uni-7 RP Wrapping System Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-5/7 Operator Keysheet: June 2021 Download Email Retail Equipment No
Ishida Uni-7 User Manual V1.02 Download Email Retail Equipment No

Title Download Email
Uni-7 RP Controller Replacement Parts Page Download Email
Uni-7 RP Printer Replacement Parts Page Download Email
Uni-7 RP Label Cassette Replacement Parts Page Download Email
Uni-7 RP Scale Base Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment

Parts

Part # Description List Price Cart / Quote
120673 Retail Scale, Uni-7 RP-RF Remote scale platter, 15 x 0.005lb / 30 x 0.01lb 115VAC Ishida

List Price: $5,323.00

Options

Ishida Uni-7 RP Misc Options

Part # Description List Price Cart / Quote
47670 Retail Scale OPT,Base Unit Scalemate 27 Deep x 23 Wide x 32 High Scale Shelf 36 inch Overall Height 2 Roll 18 in Max Roll Size 750 Watt 6 x 15 in Heat Pad w/Cover 115 VAC 12ft Power Cord Ishida

List Price: $2,940.00
47672 Retail Scale OPT,Wrap Station Wing Left, SM20ES, 200ES, 14 x 22 in, (Scalemate Hand Wrap Station), Heat Seal, Ishida

List Price: $283.00
53962 Retail Scale OPT,Wrap Station Wing Right w/Hood Scalemate 14 x 34 in Ishida

List Price: $733.00
53963 Retail Scale OPT,Wrap Station All Purpose Shelf, SM20ES, 200ES 12x24 or 15x24, (Scalemate Hand Wrap Station), Heat Seal, Ishida

List Price: $312.50
101139 Scale Stand,14x20 Plastic Board Includes Mounting Hardware Ishida BC-4000 AC-4000 SR-2000a Uni-7 series

List Price: $218.00
104948 Mounting kit, Handwrap station, Uni-7RP, Uni-9RP 60lb, Uni-3RP, Ishida

List Price: $27.00
110996 Retail Scale OPT,Label Cassette UNI-7, Replacement or Additional w/Special Front Plate For UNI-7H units, Order Black Cassette PN 190565 Ishida

List Price: $234.50
105346 Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida

List Price: $93.00
167774 Cover,In Use Operator Controller Uni-5 Uni-7 Ishida

List Price: $5.50
46927 Retail Scale OPT,Wrap Station Wing Right, SM20ES, 200ES, 14 x 22 in, (Scalemate Hand Wrap Station), Heat Seal, Ishida

List Price: $283.00
153320 OPTION, Linerless label Cassette Uni-7, Ishida

List Price: $490.50
155176 Option,UNI-7 RP POP Label Dispenser with Mounting Hardware for ScaleMate

List Price: $379.50
151761 Option, Spacer POP label dispenser, Set of 10, Ishida, use for wider core POP labels

List Price: $18.00
91870 Option,Compact Flash Card 32mb Ishida CF

List Price: $93.00
174110 Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida

List Price: $158.50

Communications

Manuals and Service Tools

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
