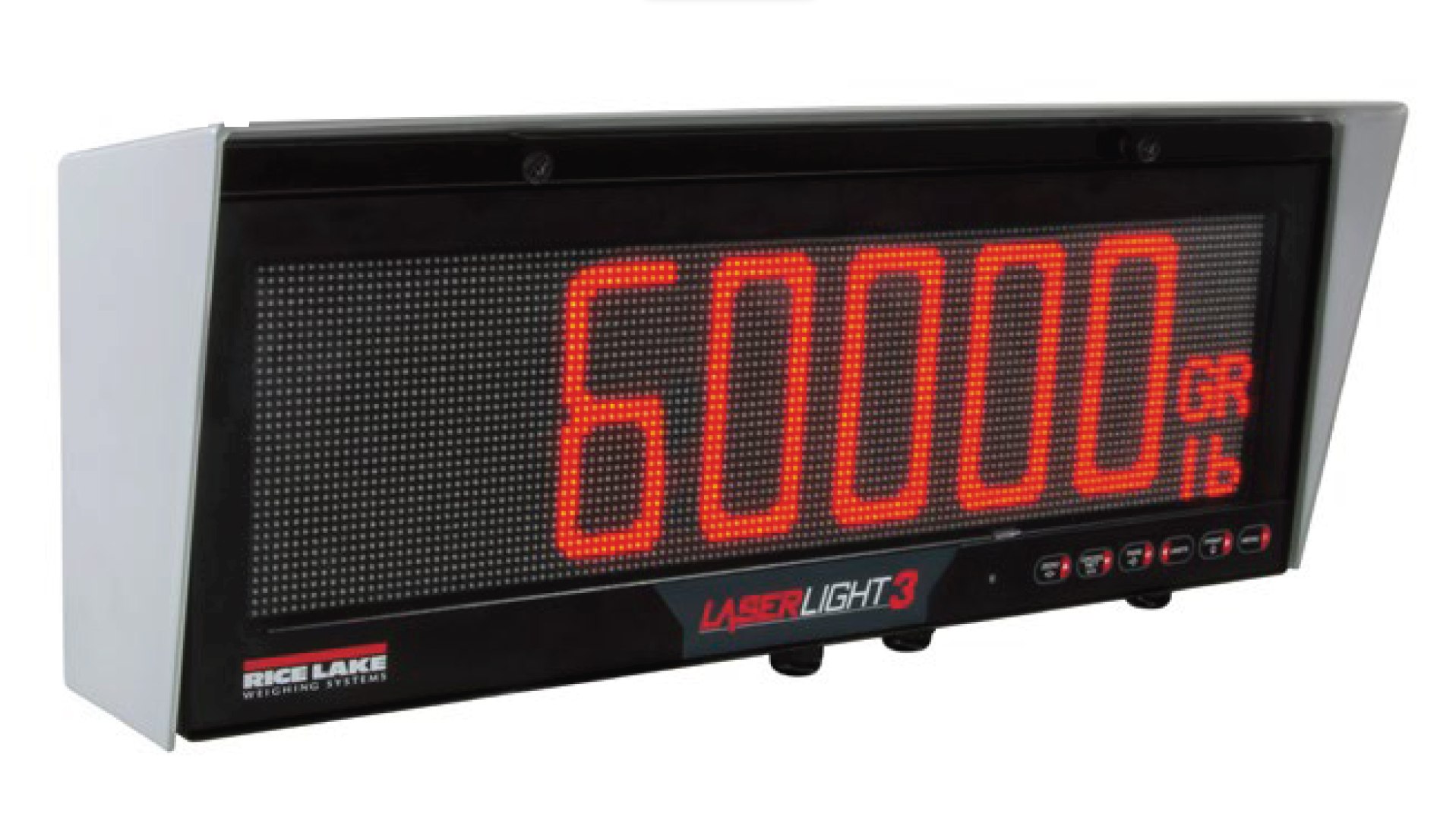

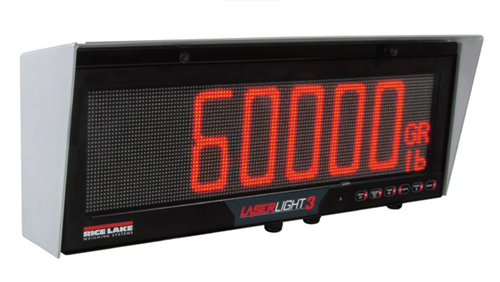

LaserLight3™ Color Large-Display Weight Indicator

Power:
AC voltages: 100 to 240 VAC; 50/60 Hz
120 watt (120 VAC)

Output Interface:
Ethernet TCP/IP, independently configurable echo port

Input Data Format:
Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 self-learning or configurable

Update:
Continuous or out-of-motion modes
Message interrupt mode

Digital I/O:
Four I/O read or set
5V logic

Communication Ports:
Ethernet TCP/IP, RS-232, RS-485, 20 mA

Character Format:
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits

Maximum Viewing Distance:
4-inch character 100 ft (30 m)
5-inch character: 150 ft (46 m)

Viewing Angle:
160­°

Display:
Bright, outdoor color LED lamps
128 × 32 pixel, 4 mm pitch
Decimal or comma indication
Weight display with units and mode
Message display 1, 2 or 4 lines

Keys/Buttons:
Zero, Gross/Net, Tare, Units, Print, Menu

Time:
Software enable, 12 or 24 hour format

Date:
Software enable, US or ISO format

Temperature:
Operating:
-40 °F to 120 °F (-40 °C to 49 °C)

Rating/Material:
IP66
Mild steel, powder-coated

Weight:
20 lb (9 kg)

Warranty:
Two-year limited

Approvals:
NTEP 22-096
Measurement Canada AM-6210C
