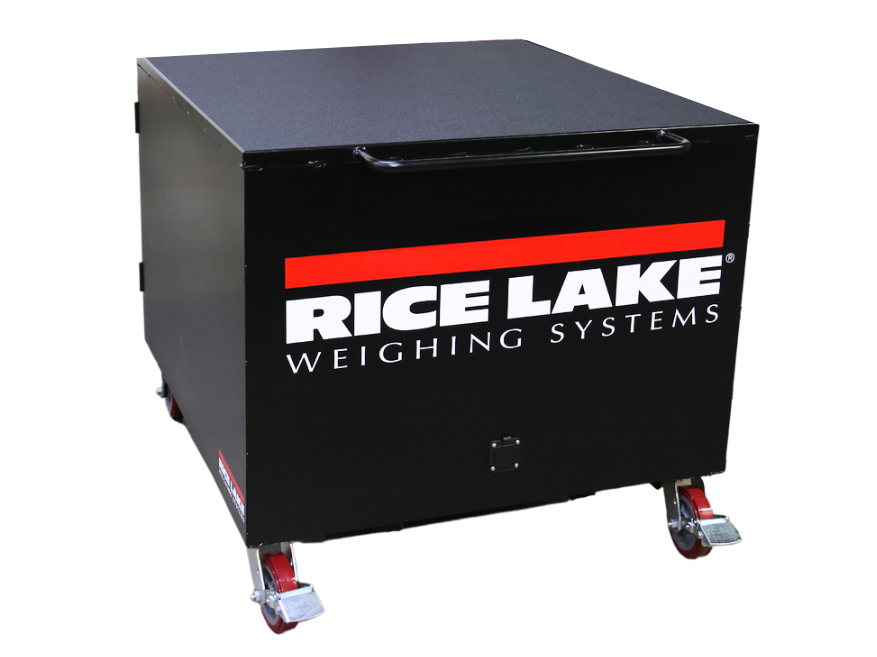

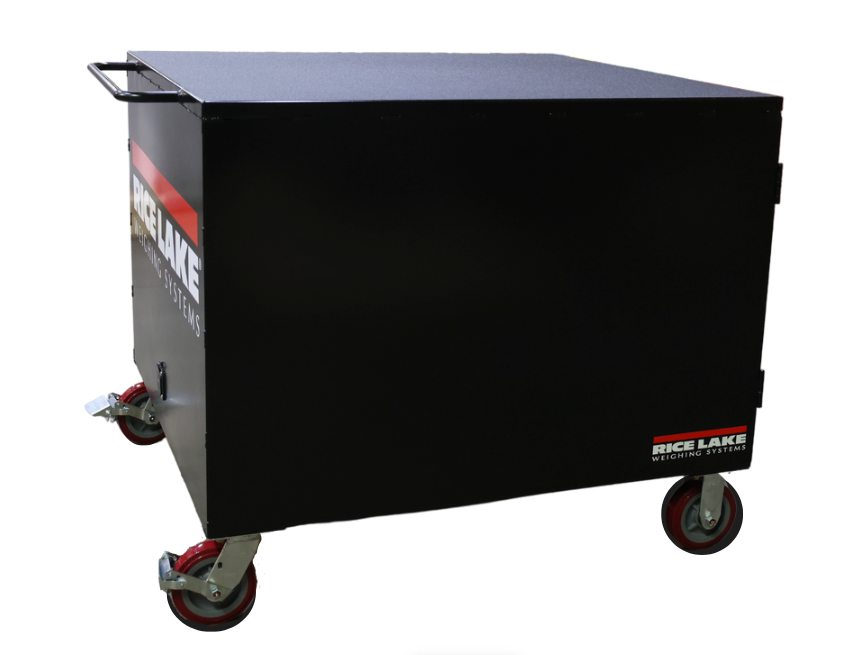

Load Ranger Transport Cart

  • Can hold up to four, six or eight Load Ranger wheel pads (with or without optional ramps) and one Load Ranger remote indicator case
  • Two swivel, locking casters and two rigid casters to insure the safety of the scales during transit
  • Painted mild steel
  • Bottom surface, heavy duty plastic to offer scratch resistance for Load Rangers
  • Integrated forklift channels
  • Cam latch closures
  • AC power strip, US plug
Request More Information

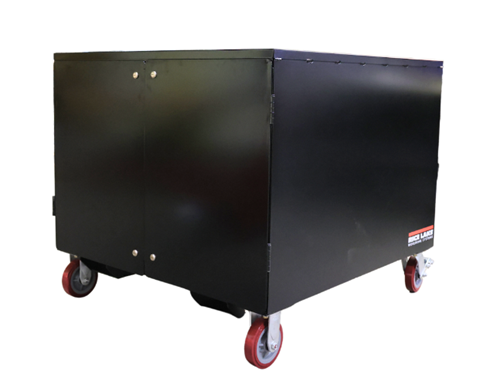

5S5A3173 BGR

Warranty:
One-year limited

Dimensions   4 bay
A 31.80 in (808 mm E  37.17 in (944 mm)
B 24.75 in (629 mm F 7.80 in (198 mm)
C 47.87 in (1216 mm) G 9.26 in (235 mm)
D 43.50 in (1105 mm)
Dimensions   6 bay
A 40.80 in (1,036 mm) E 37.17 in (944 mm)
B 24.75 in (629 mm) F 7.80 in (198 mm)
C 47.87 in (1,216 mm) G 16.25 in (413 mm)
D 43.50 in (1,105 mm)
Dimensions   8bay
A 50.30 in (1,278 mm) E 37.17 in (944 mm)
B 24.75 in (629 mm) F 7.80 in (198 mm)
C 47.87 in (1,216 mm) G 25.75 in (654 mm)
D 43.50 in (1,105 mm)





Resources / Downloads

Title Download Email
Load Ranger Cart Catalog Page Download Email

Parts

Part # Description List Price Cart / Quote
203078 Load Ranger Transport Cart for up to 6 Load Ranger Wheel Pads

List Price: $4,195.00
221488 Load Ranger Transport Cart for up to 8 Load Ranger Wheel Pads

List Price: $5,595.00
