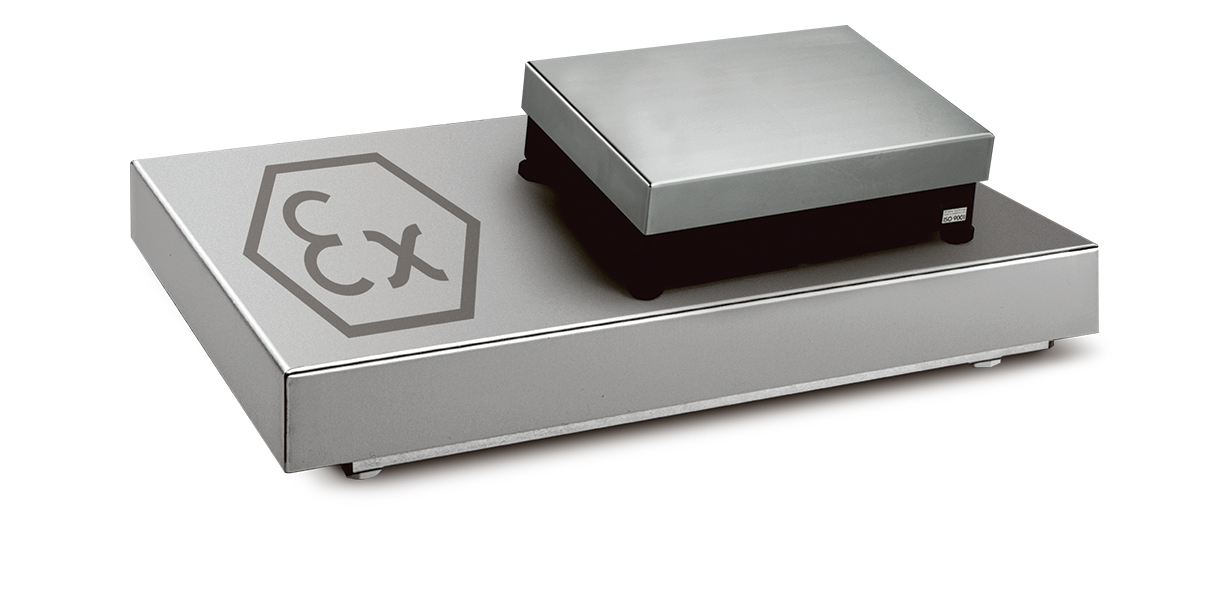

Minebea Intec IS-X Series Explosion Proof Scales

  • Network-capable: RS-485 interface is X-bus compatible
  • Built-in internal calibration function: at the touch of the unique ISO TEST Key, the IS platform calibrates and adjusts itself automatically using a built-in calibration weight
  • High resolution: guarantees reliable weight readouts
  • Fast weighing results: up to 50 times/second
  • Stainless steel load plate



Minebea Intec IS-X Series Explosion Proof Scales

The Minbea Intec IS-X models are precision weighing platforms for weighing samples in hazardous areas/locations. The IS-X weighing platforms are ideal for use as inspection, measuring and test instruments in quality management systems. These units are often used in the mixing of gases and speed up both simple and complex routine procedures, saving time and making work much more efficient.

Minebea Intec IS-X weighing platforms meet the highest requirements placed on accuracy and reliability of weighing results through their rugged, durable weighing system. The weighing system will not be damaged if the maximum weighing capacity is occasionally exceeded. Efficient vibration filtering and approval for hazardous environments assure stable and reproducible results every time. Ultra fast response times increase work efficiency without sacrificing accuracy.

The IS-X offers direct connection to PC in a PLC or other control system for quickly capturing and organizing results. The weighing platform is also equipped with an RS-485 data interface which can be used to connect to a printer, PC, or universal remote switch through a Zener barrier.

For the highest precision in an explosion proof environment the IS explosion proof series is the ideal solution.

Indicator Connectivity:
Combics CAIXS2 with option

Weighing Design:
Electromagnetic

Cable Length:
9 ft (2.75 m)

Stability:
Weight stabilizes 1.5 second

Interface:
RS-485 standard

Power Requirements:
Requires YPS02-XKR (46518) hazardous area power supply or YPS02-ZKR (46517) safe area power supply

Construction:
Stainless steel platform, die-cast or galvanized base construction (model dependent)

IP Rating:
IP65

Warranty:
Two-year limited
Accessories: one-year limited

Sample Order Configuration:
1. Select base
2. Select two power supplies –
base and indicator
158644 CAIXS2
197168 CAIXS2 with A19 and M6 option

Resources / Downloads

Title Download Email
IS-X, Explosion Proof Scales Catalog Page Download Email

Title Version Revision Download Email Category Archived
Minebea Intec IS-X Manual Download Email Bench Scales|Platform Scales No

Title Collateral Wizard Request Download Email Category
Minebea Intec IS-X Sales Literature Download Email Precision Industrial|Platform Scales|Bench Scales

Title View Download Email Category
ScaleTalk: What are Hazardous Areas? View Download Email

Parts

Stainless Steel

Part # Description List Price Cart / Quote
155875 Base,ISXBBS-6-H Explosion Minebea IS Series, 6.1 kg x 0.01 g, 8.5 x 8in platform, Stainless Requires power supply - 46518 (YPS02-XKR) or 46517 (YPS02-ZKR)

List Price: $7,898.00

Options

Power Supply Required (one for base and one for indicator)

Part # Description List Price Cart / Quote
46518 Power Supply,Hazard Area Model YPS02-XUR 8ft Intrinsically Safe Blue Cable 69Y03191 with CONN for Attachment to Scale or Indicator and 8ft Cable to Power requires Hardwire to AC Electrical Source by Licensed Electrian FM Approved

List Price: $2,494.00

46517 Power Supply,Safe Area Model YPS02-ZKR 3ft Cable Length from Brick to 100-240V AC Power Source & 65ft Intrinsically Safe Cable 69Y03164 to Connect to Scale or Indicator FM Approved

List Price: $1,687.00

Indicator and Options Required
