MPV-10K Micro-metering Precision Valve

  • Fine micro-metering valve with positive shut off
  • Adjustable stop, soft seat. No over tightening.
  • Stainless steel
  • Finger tip adjust—even at 10,000 psi
  • Viton O-rings standard; other materials available by request
  • Valve can be panel or bracket mounted

Applications

  • Gas and fluid applications
  • High purity systems
  • Medical and Bio-chemical gas analysis
  • Natural gas systems
  • Semi-conductor production
  • Pollution analysis instrumentation
  • Process plant instrumentation
  • Solvent systems
  • Chromatography
  • Mass spectroscopy
  • Research laboratory sampling
  • Oxygen service
  • Machine cutting tools
Request More Information
Portals 0 Products 9Fa0dd06c5f240d598318c19f83cbf45 Orig

Ultimate control is at your fingertips with the MPV-10K precision micro-metering valve.

The MPV-10K, a component of our pressure calibration standards, is also available as an independent, fine micro-metering valve with positive shut off. This exclusive device incorporates all stainless steel construction for long lasting performance.

The versatile MPV-10K combines sophisticated performance with easy-to-use features. Adjustable stop with soft seat prevents over-tightening. Each valve is customized with O-rings constructed from one of four materials for specific operation. Fingertip adjustment up to 10,000 psi provides high-accuracy metering in a variety of gas and fluid applications.

From process plant instrumentation to semi-conductor production, natural gas systems to oxygen service, the MPV-10K is the ideal choice for precision micro-metering.

Pressure Range:
Vacuum to 10,000 psi

Proof Pressure:
15,000 psi

Orifice Size:
0.032

Cv Factor:
0.007

Mechanical Rotation:
10 turns, nominal

Torque:
Finger tip adjust

Volume:
0.5 cubic inch, nominal

Sensitivity:
0.0005 psi, minimum

Construction:
Body: 303 stainless steel
All other parts: 304 stainless steel
Knob: Black anodized aluminum

Description of O-ring Materials:
Viton (V): Standard supplied material. High temperature, compatible with wide range of fluids and chemicals: Acids, oils, fuels, solvents, gases, U.V. light, and ozone.
Buna-N (BN): For general applications, petroleum base lubricants, hydraulic oils, gasoline, fuels, alcohol, L.P. gases, water and many other media. Order by request.
Ethylene - Propylene (EP): For hot water, steam, dilute acids, alcohols, alkalis, ketones, phosphate, and brake fluids. Order by request.
Silicone (S): Compatible with air, oxygen, ozone, and others. For high temperature applications. Order by request.
Neoprene (C): For refrigeration gases (Freon®, ammonia), CO2, chlorine, ozone, sunlight exposure. F.D.A. approved for food and beverages, odorless, tasteless and non toxic. Order by request.
See literature sheet PN 65308

NOTE: Some O-Ring materials may not be rated for 10,000 psi

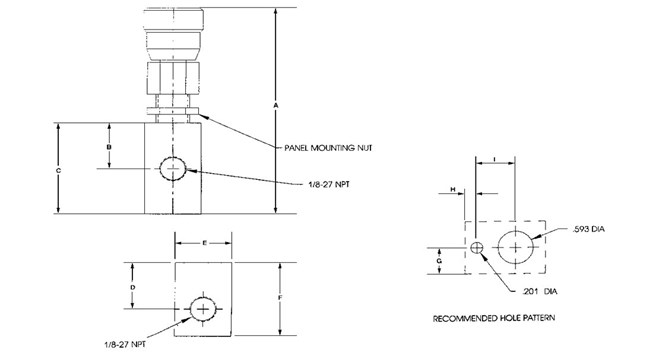

Dimensions
A 3.80 in. (96.52 mm)
B 0.853 in. (21.66 mm)
C 1.70 in. (43.18 mm)
D 0.85 in. (21.59 mm)
E 0.95 in. (24.13 mm)
F 1.35 in. (34.29 mm)
G 0.48 in. (12.19 mm)
H 0.20 in. (5.08 mm)
I 0.65 in. (16.51 mm)

Resources / Downloads

Title Download Email
Condec MPV-10K Catalog Page Download Email

Parts

Part # Description List Price Cart / Quote
57168 Valve, Micro-Metering Precision MPV-10K With Fluorocarbon (Viton) O-Ring

Consult
54803 Valve, Micro-Metering Precision MPV-10K With Buna-N (Nitrile) O-Ring

Consult
54906 Valve, Micro-Metering PRECISION MPV-10K WITH ETHYLENE-PROPYLENE O-RING

Consult
57161 Valve, Micro-Metering Precision MPV-10K With Silicone O-Ring For Use w/Oxygen

Consult
57122 Valve, Micro-Metering Precision MPV-10K With Neoprene O-Ring

Consult

Options

Part # Description List Price Cart / Quote
68859 LIT,Manual Orion-2C Orion-2D Orion-3A and MPV-10K Adjustment and Maintenance

Consult
55277 Kit,-O-ring Viton Fluorocarbon, Standard Replacement Kit For Orion 3A or MPV-10K Consult Factory or Lit Sheet 65308 for Use With Orion 2C or 2D

Consult
58499 Kit,O-ring Buna-N Nitrile, Standard Replacement Kit For Orion 2C or Orion 2D Consult Factory or Lit Sheet 65308 for Use With Orion 3A or MPV-10K

Consult
