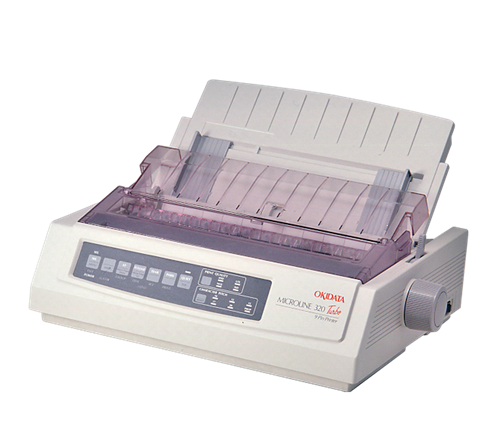

Okidata 320-390-420 Turbo

  • Vertical tabs
  • Long-lasting, self-inking ribbon cartridge
  • Bit image graphics for plotting charts, graphs and drawings
  • Full ASCII character set
  • Friction and adjustable pin feed paper handling
Okidata 320/420 Turbo*:
  • Nine-pin, long-life print head (parallel input)
  • Centronics®-compatible parallel interface
  • Near letter-quality printing at 63 characters per second
  • 80 columns with standard characters, 160 columns with condensed characters
  • Front access panel for quick and easy control of type size, print quality and other frequently used printer functions
Okidata 390 Turbo:
  • 24-pin, long-life print head
  • Supports Windows® 95/98
  • Superior, professional quality printer
  • Auto-tear accurately positions continuous forms for a clean tear at the perforation
  • Three scaleable fonts

    * Use with CBI
Request More Information

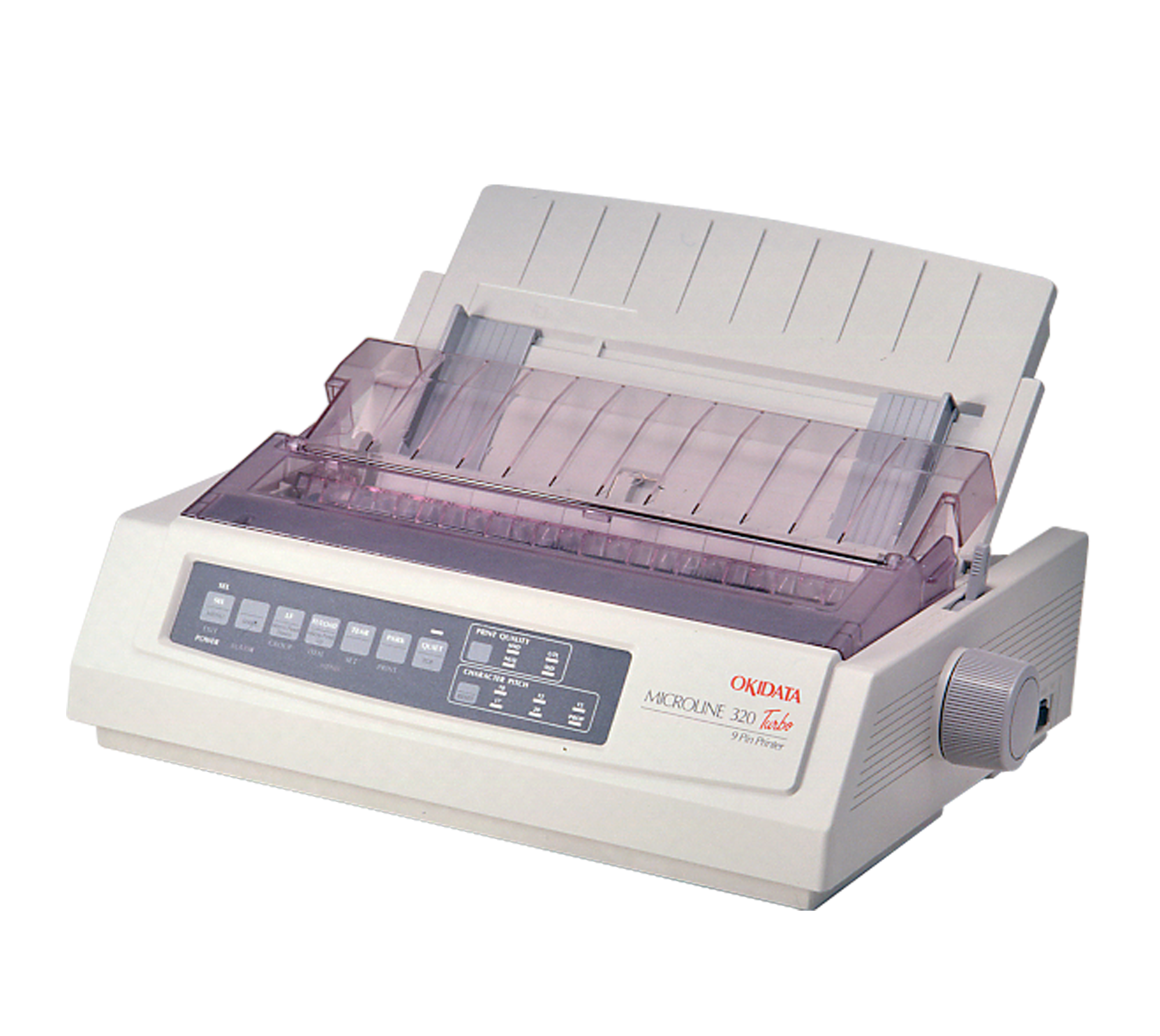

Okidata Turbo Dot Matrix Printer 320 390 420

Print Method:
Okidata 320/420: 9-Pin (0.34 mm dia.) serial impact dot matrix
Okidata 390: 24-Pin (0.20 mm dia.) serial impact dot matrix

Graphics Resolution:
Okidata 320/420: 240 (H) x 216 (V) DPI maximum (Epson®/IBM®)
Okidata 390: 360 (H) x 360 (V) DPI maximum (Epson/IBM AGM)

Print Speed** (cps):
Okidata 320: NLQ: 75; Utility: 300;
High Speed Draft: 390;
Super Speed Draft: 435
Okidata 390: LQ: 105; Utility: 315;
Super Speed Draft: 390 (15 cpi)
Okidata 420: NLQ95;
High Speed Draft: 5p 510; Utility: 570, Super 570

Feed Rate:
5.0 ips

Emulations:
Okidata 320: Epson EX-PPR II and OKI® Microline®
Okidata 390: Epson ESC/P2, IBM ProPrinter® and IBM AGM
Okidata 420: Epson Fx IMB Pro Point Micro

Interface:
Okidata 320/390/420: IEEE 1284 bidirectional parallel; Windows® 95 plug and play compatible, USB
Okidata 390: Centronics® and IEEE 1284 bidirectional parallel

Compatibility:
Windows® XP, 2000, 98/95

Receive Buffer:
Okidata 320: 28K
Okidata 390: 23K
Okidata420: 128K

Code Pages:
Standard ASCII; Epson character set I and II; IBM character set I, I and All; Code Page 850, 860, 863, 865, 437; BRASCII and ABICOMP

Resident Fonts:
Okidata 390: LQ: Courier, Letter Gothic, Orator, Prestige, Roman and Swiss/Bold; Utility: Gothic

Scaleable Fonts:
Okidata 320/420: Courier, Gothic (22-216 pt. in one pt. increments)
Okidata 390: Courier, Roman and Swiss™ (8-64 pt. in one pt. increments)

Bar Codes:
Code 39, UPC A, UPC E, EAN 8, EAN 13, Interleaved 2 of 5, Code 128 (A, B, C), PostNet™

Paper Input:
Single/multi-part, continuous, cut sheet, envelopes, card stock, labels
Bottom feed with pull tractor option

Number Of Copies:
Okidata 320: Six
Okidata 390: Four
Okidata 420: Six

Tractor:
3.5 to 10.5 in wide (88.9-266.7 mm wide), rear push with zero tear and paper park (optional)

Paper Thickness:
Rear feed: 0.014 in (0.35 mm) maximum;
Bottom feed***: 0.017 in (0.43 mm) maximum, expandable to 0.01 in (.78 mm)

Paper Path:
Bottom, rear or top

Paper Weight:
Cut sheet 16 to 24 lb (7.2 to 10.8 kg), Continuous 16 to 20 lb (7.2 to 9.1 kg)

Electrical:
115 VAC, 230 VAC

Power Consumption:
Okidata 320: Operating: 100 W
Okidata 390: Operating: 43 W Idle: 10 W
Okidata 420: 20,000 hours

Reliability (MTBF):
10,000 hours (25% duty cycle, 35% page density)

Print Head Life:
200 million characters

Ribbon Type:
Black cartridge (2 million characters nominal life)

Operating Temperature:
40° F to 104° F (4° C to 40° C) at 25% to 80% relative humidity

Overall Size:
Okidata 320 and 390: (W x D x H): 15.7 x 13.6 x 4.6 in
(398.8 x 345.4 x 116.8 mm)
Okidata 420: 15.7 x 13.6 x 6.0 in

Est. Ship Weight:
Okidata 320: 16 lb (7.2 kg)
Okidata 390: 15 lb (6.8 kg)
Okidata 420: 17 lb (7.7 kg)

Warranty:
320/390: One-year limited warranty (includes print head)
420: Three-year limited warranty

** Print speeds apply to all  pitches (10, 12, 17.1, and 20 cpi)
*** Requires optional pull tractor (part #41224)

Resources / Downloads

Title Download Email
Okidata 320/390/420 Turbo Catalog Page Download Email

Title Version Revision Download Email Category Archived
Okidata 320 Settings to Work Directly With Indicator Download Email Printers No
OKI Microline 320/321 Turbo User's Guide Download Email Printers No
Service Guide ML320/321 Turbo Download Email Printers No

Title Download Email
Custom Label Format Form Download Email

Title Download Email
Okidata Printers Replacement Parts Catalog Page Download Email

Parts

Part # Description List Price Cart / Quote

Options

Turbo 390 Options

Part # Description List Price Cart / Quote
41224 Printer OPT,Tractor Pull Kit 320 Turbo 390 Microline Okidata

List Price: $98.00
20239 Board,RS232 Input Okidata 320/321 Rev HO and Lower, 390 Rev GO and Lower, 420 Rev DO and Lower

List Price: $170.00
20664 Cartridge,Ribbon Black Okidata 184 and 186 Printer, Magnetec 3500-S, Okidata 320 and 390

List Price: $8.50
15547 Cable Assy,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White

List Price: $70.00

Consult

Turbo 320/420 Options

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
