PIN7000/PIN7010 Pneumatic Pressure Intensifier

  • Available in self-contained enclosure with carrying handles (PIN7000)
  • Internal precision pressure intensifier generates up to 10 times input pressure
  • Electronically controlled intensifier system
  • Precision regulator to adjust input pressure
  • Three gauges to monitor regulated pressure, accumulated pressure, and output pressure
  • Patented micro-metering valves for pressure adjustment and venting
  • Quick-disconnect fittings and hoses supplied for input and output pressure
  • Easy to operate, training can be accomplished in 10 minutes
  • Available in self-contained enclosure with carrying handles (PIN7000) or 19-inch, rack-mount version (PIN7010)

Applications

  • High pressure supply, up to 10,000 psi, for test equipment
  • Ideal for fluid-free high pressure calibration
  • Works with all major manufacturer’s electronic pressure calibrators
Request More Information

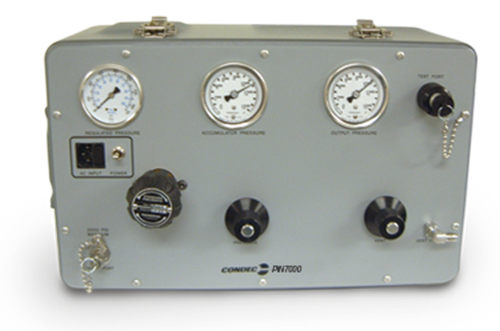

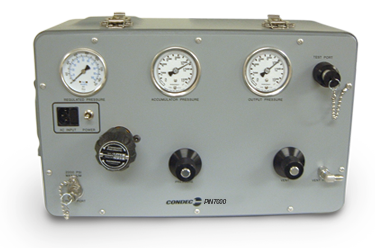

PIN7000 CMYK

Pump up your system with the PIN7000 or PIN7010 pneumatic pressure intensifier. Both the PIN7000 and PIN7010 pneumatic pressure intensifier operate using any clean dry air or gaseous nitrogen. Containing an automatic precision intensifying system, these models generate up to 10 times the input pressure.

This easy-to-operate pressure intensifier system provides fingertip control with the exclusive micro-metering valve for pressure adjustment and venting. Monitoring has never been easier with three gauges that account for regulated pressure, accumulated pressure and output pressure. These units are completely equipped with quick-disconnect fittings and hoses for rapid input and output pressure.

These pressure intensifying systems were designed for custom use. The compact PIN7000 pressure intensifier incorporates a portable configuration for on-the-go operation. The rugged PIN7010 is a rack-mount model, ideal for frequent in-house use.

Temperature range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95%, non-condensing

Pressure Media:
Clean dry gaseous nitrogen or clean dry air

Regulated Pressure Gauge:
Size: Two and one half-inch diameter
Range: 0-1500 psi

Accumulator and Output Pressure Gauges:
Size: Two and one half-inch diameter
Range: 0-15,000 psi

Control valves:
Type: Micro-metering with positive shut off, adjustable stop and replaceable seat, non destructible
Vernier mechanical rotation: 16 turns, nominal
Adjustable sensitivity: 0.0005 psi, minimum
Vernier torque: Finger tip adjust to 10,000 psi
Material: 300 series stainless steel outer body

Internal piping:
Tubing: 1/4 in. O.D. and 1/8 in. O.D. 300 series stainless steel, seamless
Couplings: 300 series stainless steel Swagelok®

Output test ports:
Style: Quick-disconnect type
Pressure rating: 10,000 psig minimum, connected or disconnected
Quantity supplied: 2 output Quick Disconnects (one, p/o output pressure hose mentioned below)

Pressure Hoses:
Quantity supplied: 2; one input and one output
Length: 4 ft., nominal each hose

Booster Pump solenoid valve:
Type: Three-way, normally closed, electronically controlled
Pressure rating: 1500 psig
Power Requirements:
115 VAC, 50 Hz, 10 watts
Note: 220 VAC also available

Input Pressure Condec REG 1000 Regulator:
Pressure rating: 3000 psi maximum
Output pressure range: 0-1000 psi
Construction: Self-relieving, single stage regulator

External housing:
PIN7000: Deep drawn aluminum case with cover and handles


External Finish:
PIN7000: Grey polyurethane baked-enamel paint, textured finish

Weight:
Approximately 40 lb (18.1 kg), nominal including all fitting, hoses and power cord

Dimensions
A 19.0 in. (482.60 mm)
B 0.25 in. (6.35 mm)
C 2.25 in. (57.15 mm)
D 1.48 in. (37.59 mm)
E 0.55 in. (13.97 mm)
F 10.47 in. (265.93 mm)
G 2.60 in. (66.04 mm)
H 8.00 in. (203.20 mm)
I 10.36 in. (263.24 mm)
J 17.18 in. (436.37 mm)

Rack-mount dimensions are for reference only. Consult factory for cutout dimensions.



Resources / Downloads

Title Download Email
Condec PIN7000/PIN7010 Catalog Page Download Email

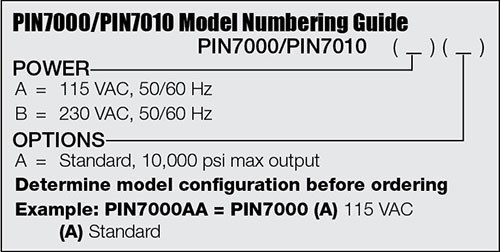

Parts

Part # Description List Price Cart / Quote
PIN7000 Portable Pneumatic Pressure Intensifier

Consult
PIN7010 19 inch rack-mount Pneumatic Pressure Intensifier

Consult

Options

Part # Description List Price Cart / Quote
63258 LIT,Manual PIN7000 PIN7010 Operating

Consult
151017 Fitting Kit, Output Port Quick Disconnect Fitting Male Coupling Body, other end 1/4-18 NPT Female SST with 40 Micron Filter, 11000 PSI Working Pressure, for PIN8000 PIN8010 UPC5200 UPC5210 PIN7000 PIN7010 UPS3110 DLR3110 - NOTE: May be used to connect DPDG Gauge to Output Port.

Consult
55280 Hose Kit,Test Port Output UPC5200, PIN7000, PIN8000 5 Foot Long with Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End, 3/16 in Hose ID, 10,000 PSI (690 BAR) Working Pressure

Consult
131096 Hose Kit,Test Port Output 10 ft. test hose for UPC5200, UPS3110, DLR3110, PIN7000 & PIN8000 (5000 psi and above) Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Consult
78939 Hose ASSY,Pneumatic 5 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple for Source 3000 65315 or 98917 or 131385

Consult
55366 Hose Kit,Fill Port Input UPC5200 10 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Consult
55369 Hose Kit,Fill Port Input UPC5200 15 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Consult
162561 Hose Assy,Pneumatic 20 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple, for Source 3000 PNs 65315, 98917, 131385

Consult
