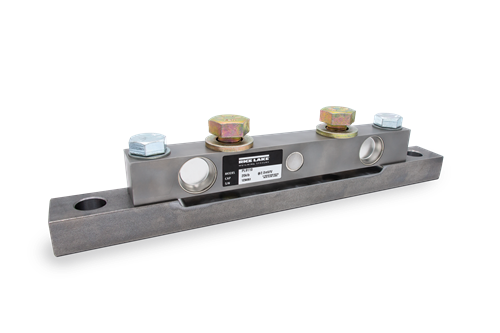

PL9110 Mount Assembly
Complete Kit Includes

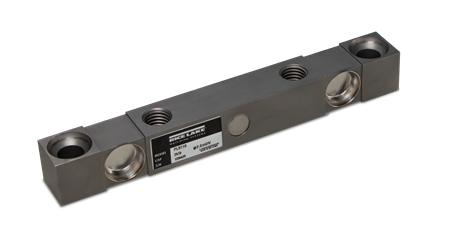

- One PL9110 stainless steel load cell
- Bearing plate (mild steel)
- Load cell bolts and spherical washers
- Upper mount bolts and flat washers
Standard Features
- Capacities from 2 K to 20 K (per module)
- IP68 rated load cell
- Single piece bearing plate, allowance to bolt or welded into position
- Spherical washer securement for load cell
- Rigid securement of equipment
- Low profile (2.25 in)
Resources / Downloads
Parts
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| 208297 | Kit,PL9110-2K Load Cell PL9110-2K, Bearing Plate, and Hardware |
List Price: $960.00 |
|
| 208299 | Kit,PL9110-5K Load Cell PL9110-5K, Bearing Plate, and Hardware |
List Price: $960.00 |
|
| 208300 | Kit,PL9110-10K Load Cell PL9110-10K, Bearing Plate, and Hardware |
List Price: $960.00 |
|
| 208301 | Kit,PL9110-20K Load Cell PL9110-20K, Bearing Plate, and Hardware |
List Price: $960.00 |
