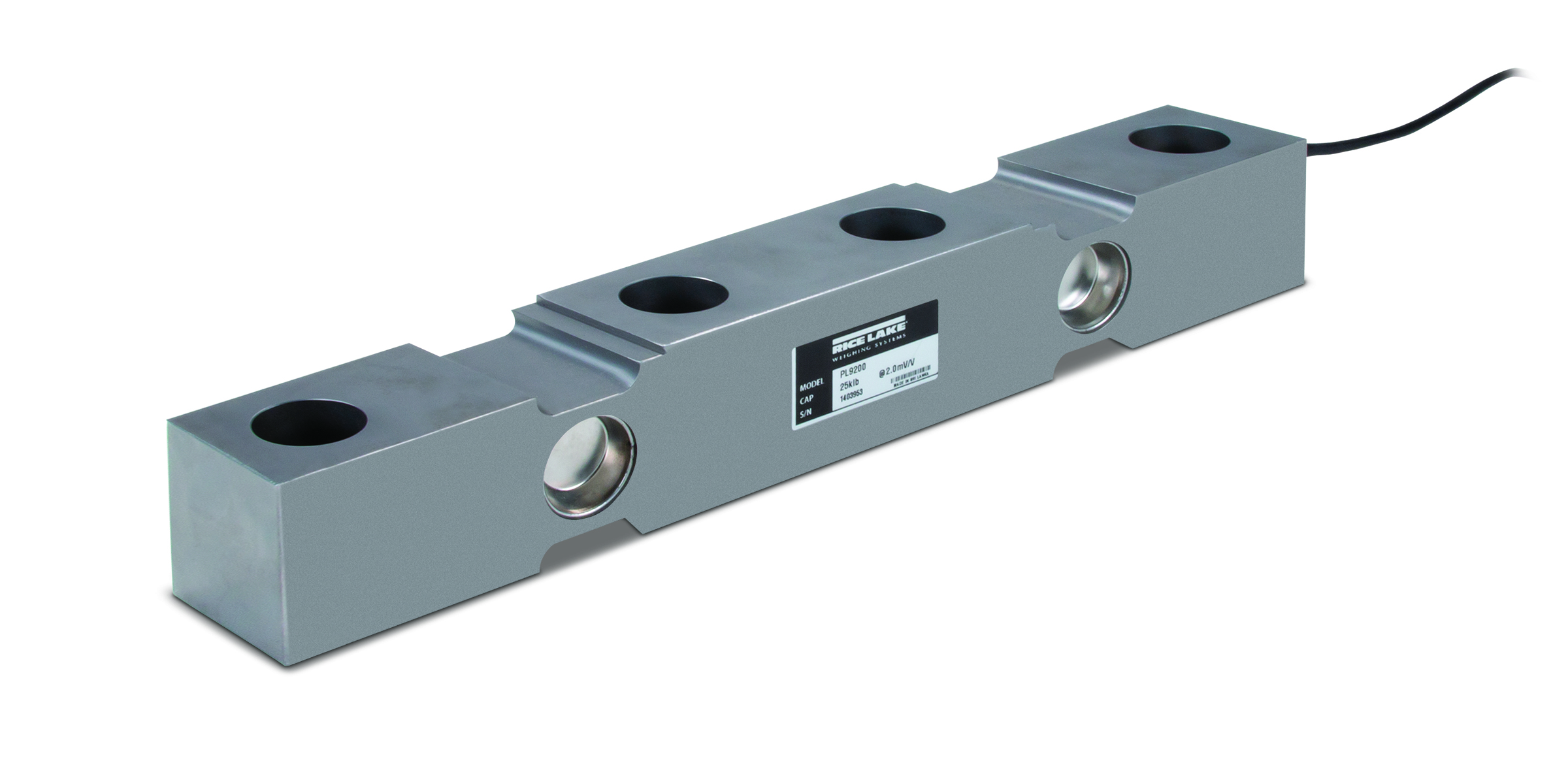

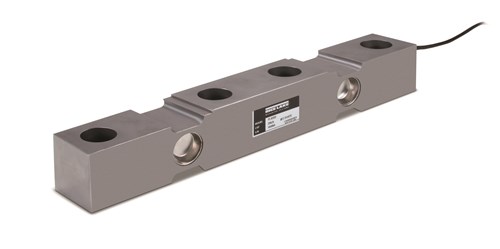

PL9200-25K Stainless Steel, Hermetically Sealed Load Cell

The PL9200 onboard weighing load cell is hermetically sealed with an IP69 rating.

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
700 (nominal)

Input Resistance:
736 (nominal)

Material/Finish:
Stainless steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Rated Excitation:
15 VDC (5 to 10 V recommended)

Non-linearity:
±0.25% full scale

Insulation Resistance:
5,000 mega ohms at 50 VDC

Seal Type:
Hermetically sealed, IP69

Cable Length:
25 ft

Wire Color Code:
Red +Excitation
Green +Signal
Black -Excitation
White -Signal
Yellow Shield

Warranty:
One-year limited

Resources / Downloads

Title	Download	Email
PL9200-25K Catalog Page	Download	Email
PL Series Load Cells Catalog Page	Download	Email
Onboard Weighing Load Cell, Complete Selection	Download	Email

Title	Version	Revision	Download	Email	Category	Archived
Load Cell EZ Test			Download	Email	Onboard Weighing	No
Precision Loads Onboard Weighing Systems Installation and Service Manual		C	Download	Email	Onboard Weighing\|Vehicle Scale System\|Precision Industrial	No

Title	Collateral Wizard	Request	Download	Email	Category
Onboard Load Cell Systems for Rigid, Straight-Chassis Vehicles			Download	Email	Onboard Weighing

Part #	Description	List Price	Cart / Quote
209603	Load Cell,PL9200-25K Double Ended Shear Beam, 2.0 mV/V, SST Element, IP69, OBW, 25 ft, 22 AWG 4 conductor PVC cable	List Price: $1,195.00	View
210812	Load Cell,PL9200-35K Double Ended Shear Beam, 2.0 mV/V, SST Element, IP69, OBW, 25 ft, 22 AWG 4 conductor PVC cable	List Price: $1,195.00	View
