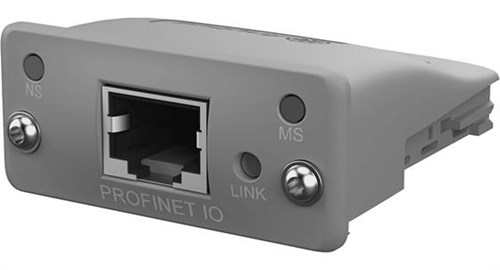

PROFINET® Interface 880™/882D/882IS/1280™

PROFINET communication adapter
Onboard diagnostic LEDs
100 Mbps baud rate
Works as an I/O device on the PROFINET network
PROFIenergy compliant

Request More Information

WARNING: Cancer and Reproductive Harm California Proposition 65

HD View

Profinet 880/1280 Specifications

Power:
3.3 VDC, 250 mA

Configuration:
GSDML file

Connector Type:
RJ-45 (Consult for dual-port version)

Diagnostic LEDs:
Module status and network status

IP Address Range:
Full IP address range DHCP

Dimensions:
2.00 × 1.90 × 0.75 in
(52 × 49 × 19 mm)

Temperature Range:
-40 °F to 158 °F (-40 °C to 70 °C)

Resources / Downloads

Catalogs

Title	Download	Email
Profinet Interface for 880/1280 Catalog Page	Download	Email

Fieldbus Configuration Files

Title	Size	Download	Email	Category
1280 and 880 PROFIBUS (single port M30)	48.2 KB	Download	Email	Indicators / Controllers
1280 and 880 PROFINET (single port M30)	2.8 KB	Download	Email	Indicators / Controllers
IPConfig-Utility	3.1 MB	Download	Email	Indicators / Controllers

Manuals

Title	Revision	Download	Email	Category	Archived
PROFINET Interface Installation and Programming Manual	F	Download	Email	Indicator Hardware\|Indicators / Controllers\|Weight Indicators\|Indicator Hardware/Options	No
1280/880 Interface Option Card Installation Addendum		Download	Email	Indicator Hardware\|Indicators / Controllers\|Weight Indicators	No
880 PROFINET Interface Option Card Installation and Programming Manual	B	Download	Email	Indicator Hardware\|Indicators / Controllers\|Weight Indicators\|Indicator Hardware/Options	No

Parts

Part #	Description	List Price	Cart / Quote
179160	Ind Opt,Profinet Model 880 Indicator	List Price: $600.00	View
165794	1280 Opt,ProfiNet CompactCom Option	List Price: $620.00	View
205567	Ind Opt,Profinet Dual Port, Model 880 Indicator	List Price: $805.00	View
190532	882 Opt,ProfiNet CompactCom Option	List Price: $620.00	View

Options

Part #	Description	List Price	Cart / Quote
156781	LIT,Fieldbus Manual PROFINET 1280 Interface Option Card Installation and Programming (English)	List Price: $40.00	View
