Product PDF

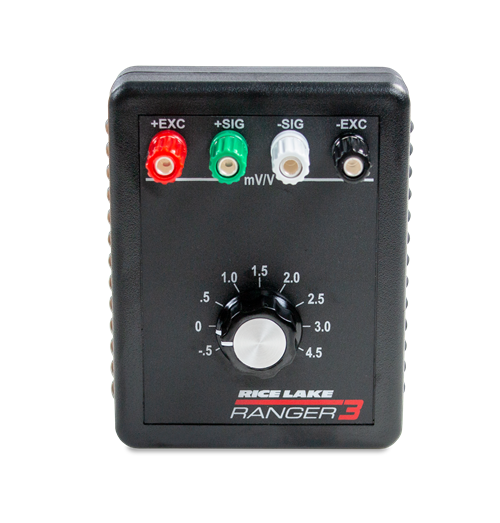

Ranger 3 Variable Range Simulator

  • ABS plastic case, weighs less than 1 lb
  • Fixed rotary switch, -0.5 mV/V to 4.5 mV/V in nine steps of 0.5mV/V per step
  • Ideal tool for calibrating the indicator A/D offset and gain setting
  • A/D calibration steps for -0.5 mV/V for offset and 4.5 mV/V for gain
  • Used in troubleshooting and testing of systems
Request More Information
Hdimage(1)

Constructed for Calibration Needs

The Ranger 3 variable range simulator is well suited for calibration needs, offering nine fixed intervals from -5 mV/V to +4.5 mV/V.

Range:
-0.5 mV/V to 4.5 mV/V

Impedance:
350 ohm nominal

Nonlinearity:
Less than 0.02%

Connectors:
Binding posts suitable for banana plug or 14-gauge wire

Temperature Coefficient:
±5 ppm/ °C

Dimensions:
(L × W × H)
4.5 × 3.5 × 1.25 in

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Ranger 3 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ranger Series Load Cell Simulators Operation Manual A Download Email Accessories|Simulators No

Parts

Part # Description List Price Cart / Quote
68030 Simulator,Ranger 3 Selectable .5 MV Steps

List Price: $425.00

Options

Part # Description List Price Cart / Quote
21116 Cable,Interface Simulator I four foot cable with banana plugs

List Price: $68.00
