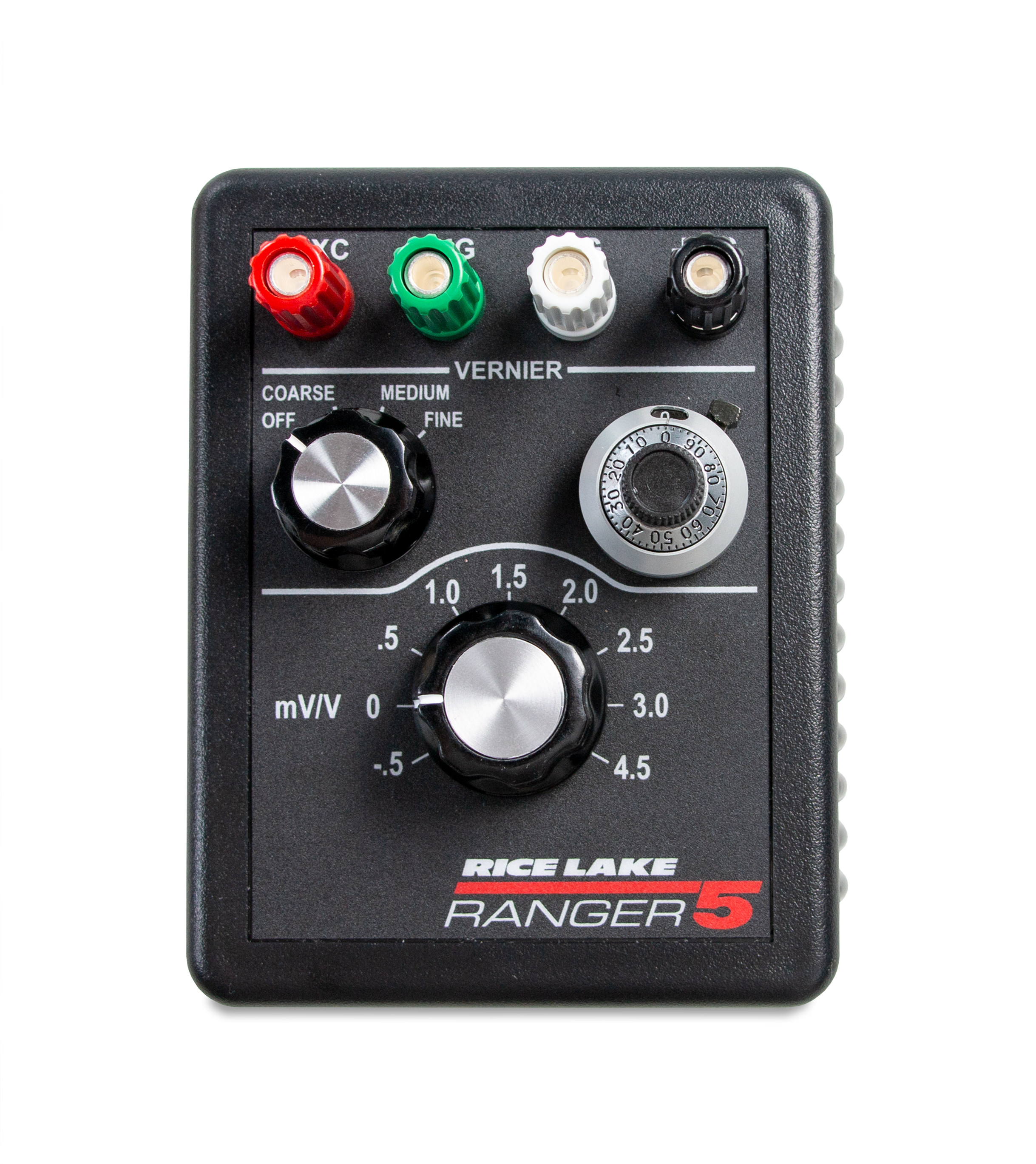

Ranger 5 Variable Range Simulator

  • ABS plastic case, weighs less than 1 lb
  • Fixed rotary switch, -0.5 mV/V to 4.5 mV/V in nine steps of 0.5 mV/V per step
  • 10-turn vernier knob with locking graduated dial
  • Vernier selection of four ranges: Off, Fine, Medium and Coarse
  • Ideal tool for calibrating indicator A/D offset and gain setting
  • A/D calibration steps for -0.5 mV/V for offset and 4.5 mV/V for gain
  • Used in testing, troubleshooting and calibrating digital weight indicator
Request More Information
Hdimage(1)

Designed for Advanced Troubleshooting

The Ranger 5 variable range simulator is a full-functioning simulator, well suited for more advanced troubleshooting and calibration needs.

Fixed Steps:
-0.5 mV/V to 4.5 mV/V

Vernier:
Variable range: up to 0.5 mV/V, up to 1 mV/V, up to 1.5 mV/V

Impedance:
350 ohm nominal

Nonlinearity:
Less than 0.02%

Connectors:
Binding posts suitable for banana plug or 14 gauge wire

Temperature Coefficient:
± 5 ppm/ °C

Dimensions:
(L × W × H)
4.5 × 3.5 × 1.25 in

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Ranger 5 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ranger Series Load Cell Simulators Operation Manual A Download Email Accessories|Simulators No

Parts

Part # Description List Price Cart / Quote
68031 Simulator,Ranger 5 Selectable .5 MV Steps w/ Vernier

List Price: $510.00

Options

Part # Description List Price Cart / Quote
21116 Cable,Interface Simulator I four foot cable with banana plugs

List Price: $68.00
