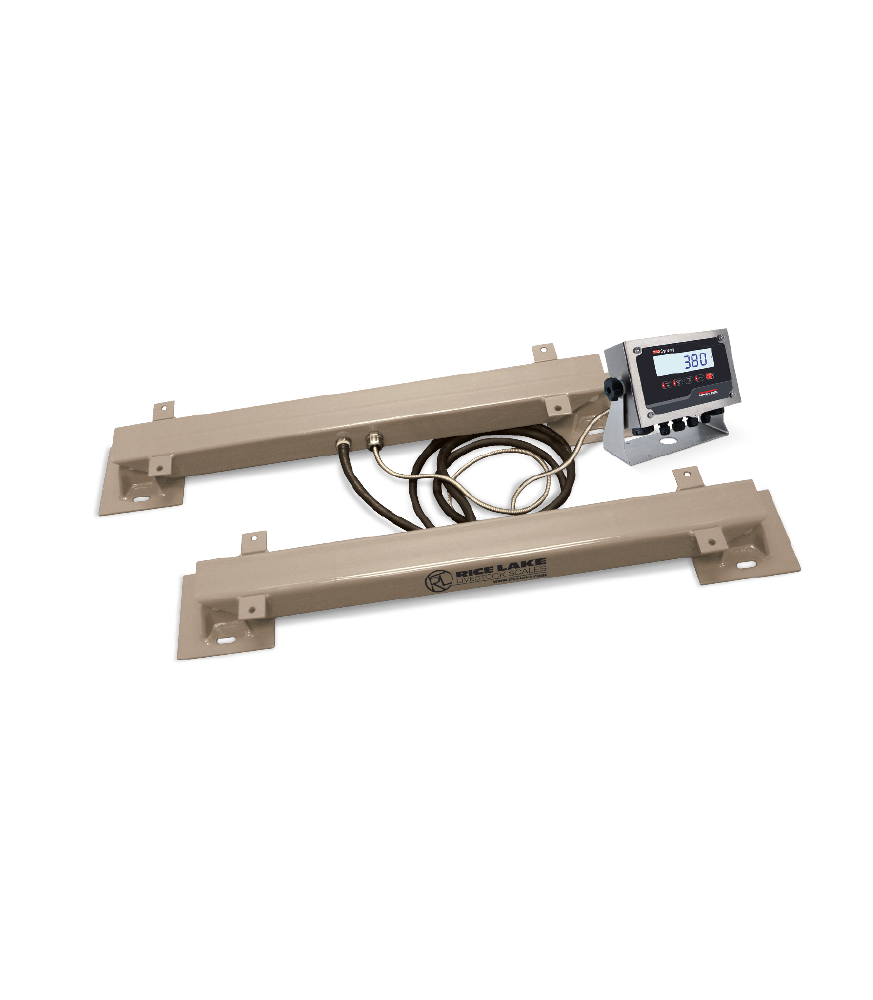

Rice Lake Farm Bars with 380 Indicator

  • Indicator cable length 12 ft
  • 3 ft ArmorGuard cable included
  • Kit includes 380 Synergy Series digital weight indicator powered by four C-cell batteries (not included)
  • Factory calibrated when sold with instrumentation
  • Capacities from 2,500 to 10,000 lb
  • Non-Legal for Trade
Request More Information
Portals 0 Products Fba86f967af449a698f2afb78111d98a Orig

Multi-Purpose Farm Bars

Even in tough environments, the Rice Lake Farm Bars with a 380 indicator can be added to weigh hogs, cattle or other livestock quickly. With 12 feet of cable for the indicator, these farm scales are suited for any layout.

Accurate Weights for Livestock

Rice Lake Farm Bars are factory-calibrated when sold with instrumentation to ensure accuracy. The kit includes a 380 Synergy Series digital weight indicator to display measurements.

Safe Overload:
150%

Full Scale Output:
3 mv/V nominal
Output is standardized for each model of load bar, consult factory for details

Maximum Excitation:
15 VDC

Nonlinearity:
0.02% full scale

Hysteresis:
0.02% full scale

Bridge Resistance:
350 ohm



Temperature:
-40 °F to 111 °F (-40 °C to 44 °C)

Cable Configuration:
8 ft between bars and 12 ft for the indicator

Warranty:
Two-year limited

Power:
Batteries: Four alkaline C-cell (not included)
Optional: 115/230 VAC to 12 VDC adapter

Battery Life:
100 hours with 1 × 350 ohm load cell, no backlight

Communication Ports:
One RS-232 (three-wire)
One USB 2.0

Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Display:
Six 1 in (25 mm) tall, LCD digits

Keys/Buttons:
5 tactile buttons

Rating/Material:
IP66
Stainless steel

Approvals:
NTEP 21-051
Measurement Canada AM-6184
CE
cULus

Farm Bar 2,500U
A B* C D* E
22.00 in 15.00 in 19.75 in 25.75 in 4.00 in

Farm Bar 5,000U
A B* C D* E
26.00 in 19.00 in 23.75 in 29.75 in 4.00 in
33.00 in 26.00 in 30.75 in 36.75 in 4.00 in
36.00 in 29.00 in 33.75 in 39.75 in 4.00 in
40.00 in 33.00 in 37.75 in 43.75 in 4.00 in
44.00 in 37.00 in 41.75 in 47.75 in 4.00 in
48.00 in 41.00 in 45.75 in 51.75 in 4.00 in

Farm Bar 10,000U
A B* C D* E
32.00 in 25.00 in 29.75 in 35.75 in 4.00 in
36.00 in 29.00 in 33.75 in 39.75 in  4.00 in
48.00 in 41.00 in 45.75 in 51.75 in 4.00 in
60.00 in 53.00 in 57.75 in 63.75 in 4.00 in
72.00 in 65.00 in 69.75 in 75.75 in 4.00 in
*B equals dimension A less 7 inches
*D equals dimension C plus 6 inches

Resources / Downloads

Title View Email Category Type
A Winning Investment View Email Agriculture Application Story
Steering Profits View Email Livestock Scales|Agriculture Application Story

Title Download Email
Farm Bars with 380 Indicator Catalog Page Download Email

Title Version Revision Download Email Category Archived
Farm Bars Animal Scale Operation Manual C Download Email Livestock Scales|Agriculture|Veterinary Scales No
380/380X/381 Synergy Series Digital Weight Indicator Technical Manual I Download Email Weight Indicators|Indicators / Controllers|Livestock Instrumentation No
Farm Bar U Series Operation Manual (Archived) B Download Email Livestock Scales|Agriculture|Veterinary Scales Yes

Title Collateral Wizard Request Download Email Category
Rice Lake Farm Bar Universal Livestock Scale Request Download Email Livestock Scales
Livestock Weighing Buyers Guide Request Download Email Livestock Scales
Livestock Instrumentation Compatibility Matrix Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales

Title View Download Email Category
What is "Shrink" When Weighing Livestock? View Download Email Livestock Scales

Parts

2,500 lb Capacity with 380 Indicator

Part # Description List Price Cart / Quote
214517 SCALE, 2500U 2 LOADBAR System Standard Bar 22 Inches Long 2500lb/1250kg Capacity Includes Indicator 380 Synergy, Battery Powered (AC Adapter Not Included)

List Price: $3,400.00

5,000 lb Capacity with 380 Indicator

10,000 lb Capacity with 380 Indicator

Options

Part # Description List Price Cart / Quote
159788 Cable,Extension Bar

List Price: $260.00
127556 Cable ASSY,4 Pin Male CONN 144 Inch for Animal Scale Indicator

List Price: $120.00
202711
Indicator,380 Universal Segmented LCD Display, Battery Powered, Synergy Series

List Price: $655.00
206433 Power Cord Assy, 12V 6W US Plug, 2.5mm ID, 5.5mm OD connector, Universal Input

List Price: $54.00
23113 Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply

List Price: $685.00
71630 Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG

List Price: $60.00
15547 Cable Assy,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White

List Price: $70.00

Related Products

1 WEB SC Farm Bars (1)

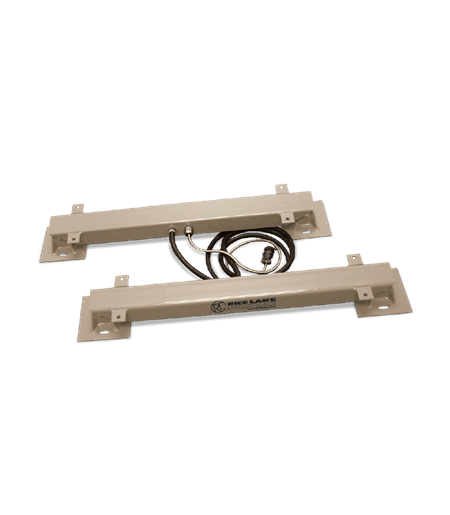

Rice Lake Farm Bars

These heavy-duty, farm bars can be mounted under most cattle squeeze chutes, hog crates, feed hoppers and custom platforms.

RL-380-Synergy-Weight-Indicator

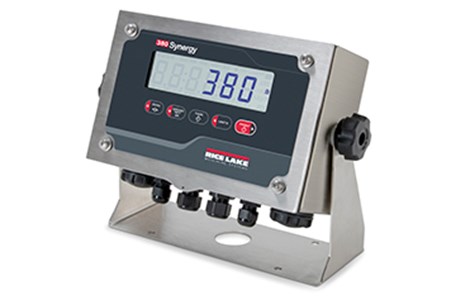

380 Synergy Series Digital Weight Indicator
