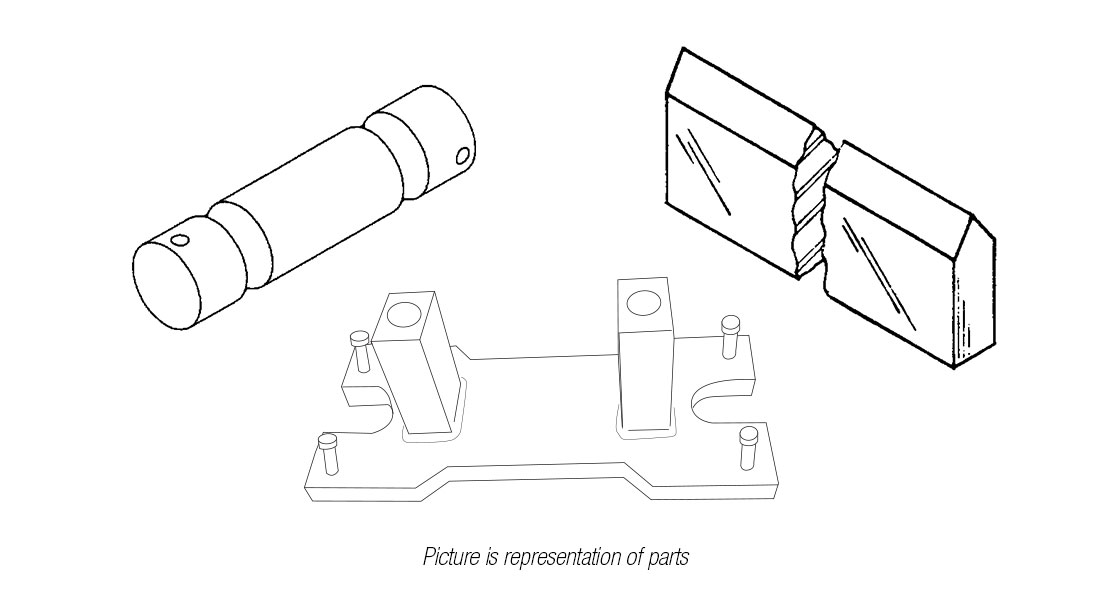

Rice Lake-Powell Repair parts for 32.5 Ton Sectional Capacity Parts
Please log in to view replacement part pricing and resources.
Parts
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| 10797 | Pivot,1/2x1-1/8x2-5/8 Nose Iron Pivot, Taper Cut (Powell part# 3109) |
List Price: $47.00 |
|
| 69784 | Link,3/4x5x12.375 OD ID= 2.50 x 8.125 between inserts. (Powell p/n #3101) |
List Price: $122.00 |
|
| 71043 | Bearing Block,2x2x5 w/1.00 Radius. Fits P707 Pin. Powell Upper Block #3102 |
List Price: $131.00 |
|
| 90161 | BB Stand, MC 32.5 Ton 5x9-1/2. For Powell Portable. Bearing not included. 32.5 & 50 Ton Sect. |
List Price: $245.00 |
|
| 90162 | Main Stand, MC 32.5 Ton 5x8-1/2". For Powell Portable Scales. Bearing Not Included. |
List Price: $245.00 |
|
| 90166 | BB Stand, MP 32.5 Ton Leg-5x20-3/4. Base Pl-3/4x8x14.Powell Pit Scale. Bearing Not Inc. |
List Price: $395.00 |
|
| 90167 | Main Stand, MP 32.5 Ton Leg-5x10-1/4.Base Plate-3/4x8x14.Powell Pit Scale.Bearing Not Inc |
List Price: $292.00 |
|
| 90176 | Girder Chair, Powell Powell #3114 Girder Chair. 32.5 Sect. Portable & Pit Scales 12.75" TALL. TOP 14X6. HOLE LAYOUT 12X4. LEG OD 8.125" |
List Price: $350.00 |
|
| 90258 | Powell LC Stand, 75K 1x8x18 Base Plate with two 5-1/2" L.C. blocks 67109 Standard for Powell 75K mount. |
List Price: $550.00 |
|
| 90259 | Powell LC Stand, 60K 1x8x18 Base Plate with two 5-1/4" LC blocks 67108. Standard for Powell 60k Mount. |
List Price: $550.00 |
|
| 90815 | Bolt,5/8-11 x 16 Hex Head Partial Thread Grade A ASTM A307 Zinc Plated Main Lever Shackle, for Powell Pit Scale Order 40181 Nut Separately. |
List Price: $18.00 |
|
| 90836 | Bolt,5/8-11 x 13 Hex Head Grade 5 Zinc Plated For Powell Portable MC main lever shackle Order 40181 Nut Separately |
List Price: $17.00 |
|
| H624 | Bearing,1x1x6-1/2 W/1/4 Hole (Powell part# 3106) |
List Price: $67.00 |
|
| H655P | Pivot,1/2x1-1/8x4 (Powell part# 3107) |
List Price: $51.00 |
|
| H691 | Bearing,1x1x4 1/4 Hole (Powell part# 3108) |
List Price: $56.00 |
|
| P701 | Parallel Bearing Strap 2x1-7/8x6 lower bearing block assy with bearing. (Powell part# 3110) |
List Price: $79.00 |
|
| P702 | Horizontal Bearing Strap 2-3/4x1-3/4x6 upper bearing block assy with bearing (Powell part# 3111) |
List Price: $76.00 |
|
| P705 | Trunion,Pin 2DIAx8-1/8 (Powell lower pin part# 3104) Mechanical & Elec. |
List Price: $187.00 |
|
| P707 | Upper Mech pin 2DIAx5-5/8 (Powell part# 3103) |
List Price: $160.00 |
|
| 90846 | Screw,Cap 5/8-11NC x 8 Hex Head Zinc Plated Steel |
List Price: $15.00 |
|
| 90163 | THREE HOLE STRAP 3/4X2X6 inches With 11/16 holes. For use with 5/8" shackle bolts Powell 3119. For Transverse lever shackle assy. |
List Price: $42.00 |
|
| 90760 | NOSE IRON ASSY, MAIN LVR 17-3/4" N.I. ASSY FOR MAIN LEVERS |
List Price: $255.00 |
|
| 70596 | Link, 3/4x5x10.5 OD ID= 2.50 x 6.75 between inserts. Powell Electronic Link. #3301 |
List Price: $118.00 |
|
| P716P | Pivot,1/2x1-1/8x6-1/2 Notched Corners (Powell part# 3105) |
List Price: $54.00 |
|
| P706 | Upper Elec Pin 2DIAx5-5/8 Powell # 3303 |
List Price: $155.00 |
