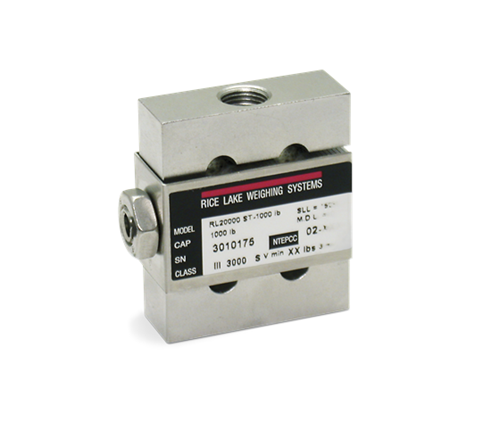

Rice Lake RL20000ST Stainless Steel S-Beam Load Cell

Ideally suited for suspended applications or mechanical scale conversions. The stainless steel design provides additional protection in dry, corrosive environments. The extremely miniature envelope is suitable for a wide variety of weighing applications in tension or compression. Capacities available from 50 lb to 5,000 lb, each comes with 20 ft of polyurethane cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-rl20000st-s-beam-load-cell

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
430 (± 60) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.190 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
Two-year limited

Approvals:
NTEP 03-007
FM

Rated Capacity A B C D E
lb/in
50 to 300 1/4-28 UNF 0.65 0.46 2.00 2.40
500 to 1,000 1/2-20 UNF 0.90 0.71 2.00 2.40
1,500 to 2,500 1/2-20 UNF 1.15 0.96 2.00 2.40
3,000 1/2-20 UNF 1.15 0.96 3.00 3.90
5,000 3/4-16 UNF 1.15 0.96 3.00 3.90
