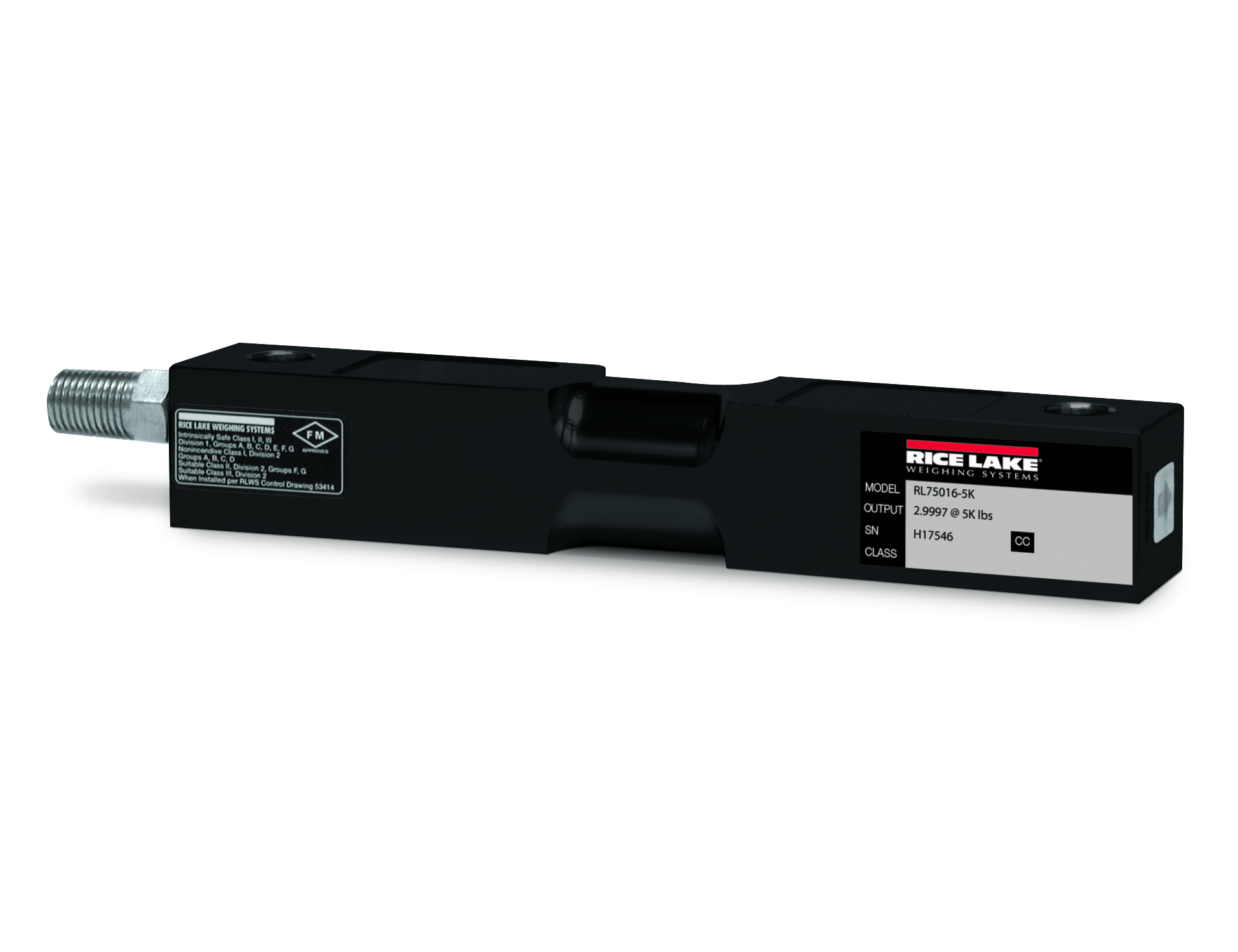

Rice Lake RL75016 MLC Coated, Alloy Steel, Double-Ended Beam Load Cell

A version of the RL75016 load cell but with multi-layer coating (MLC) for extra protection in dry chemical applications. Has a coated double-ended beam with center loading designed for tank and hopper applications. Capacities range from 1,000 lb to 75,000 lb. Complete with 25 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (±5) ohm

Input Resistance:
770 (±10) ohm

Material/Finish:
Alloy steel, coated

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
25 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus

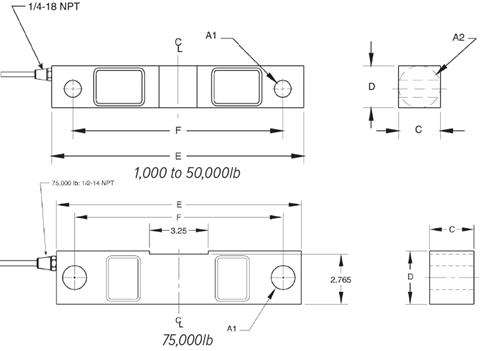

1000-50,000lb

75,000lb

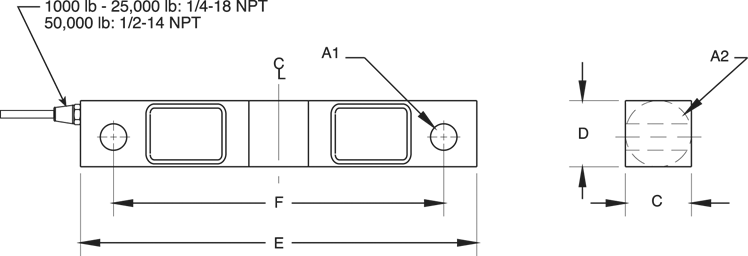

Rated Capacity A1 A2 C D E F
lb/in
1,000 to 5,000 0.50 1.25 1.25 1.25 7.50 6.25
10,000 to 25,000 0.81 1.99 1.44 1.94 8.75 7.50
50,000 1.31 3.00 2.44 2.94 13.50 11.50
75,000 1.31 2.44 2.94 13.50 11.50





Resources / Downloads

Title Download Email
RL75016 Coated Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
MLC Load Cell Kits Download Email Load Cells|Single-Ended Beam Load Cells|Double-Ended Beam Load Cells
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
187058 Load Cell,DEB RL75016 1000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated

List Price: $583.00

187059 Load Cell,DEB RL75016 1500lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated

List Price: $583.00

187060 Load Cell,DEB RL75016 2000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated

List Price: $583.00

187061 Load Cell,DEB RL75016 2500lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated

List Price: $583.00

187062 Load Cell,DEB RL75016 3000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated

List Price: $583.00

187063 Load Cell,DEB RL75016 5000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated

List Price: $583.00

187064 Load Cell,DEB RL75016 10000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coated

List Price: $662.00

187065 Load Cell,DEB RL75016 15000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating

List Price: $662.00

187066 Load Cell,DEB RL75016 20000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating

List Price: $662.00

187067 Load Cell,DEB RL75016 25000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating

List Price: $662.00

187068 Load Cell,DEB RL75016 50000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating

List Price: $1,007.00

187069 Load Cell,DEB RL75016 75000lb 25ft 3mv/v 700 Ohm FM WW IP67 MLC coating

List Price: $1,007.00

Related Products

rl-RL75016-load-cell

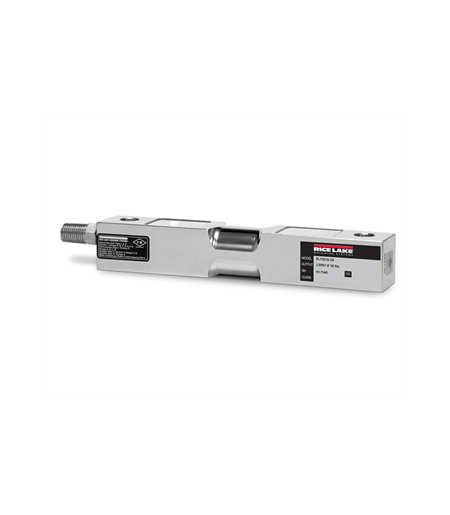

Rice Lake RL75016 Alloy Steel, Double-Ended Beam Load Cell

The Rice Lake RL75016 double-ended beam, alloy steel load cell with center loading is designed for tank and hopper applications.

rl-VPG-Celtron-DSR-double-ended-beam-load-cell

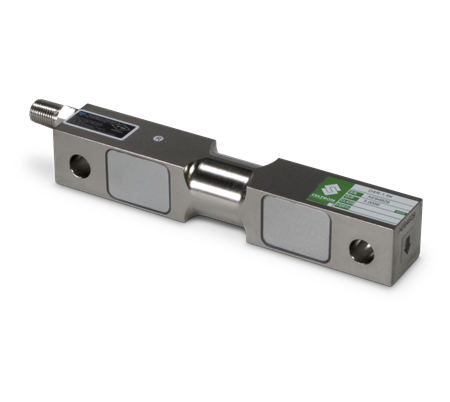

VPG® Celtron® DSR Alloy Steel, Double-Ended Beam Load Cell

The VPG Celtron DSR double-ended beam, alloy steel load cell with center loading is designed for tank, hopper and silo applications

rl-VPG-sensortronics-65016-double-ended-load-cell

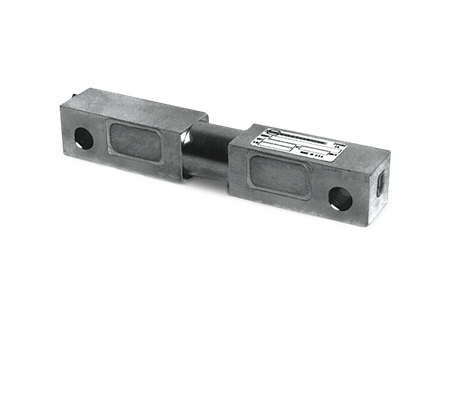

VPG® Sensortronics® 65016 Alloy Steel, Double-Ended Beam Load Cell
