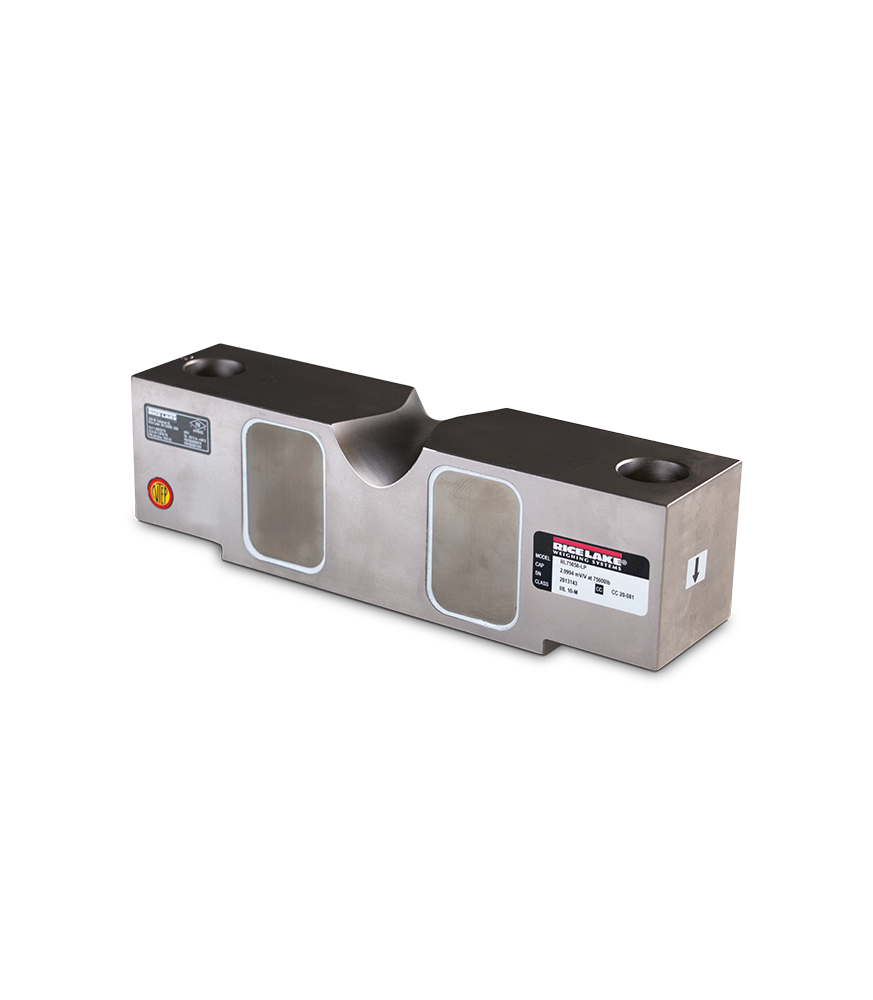

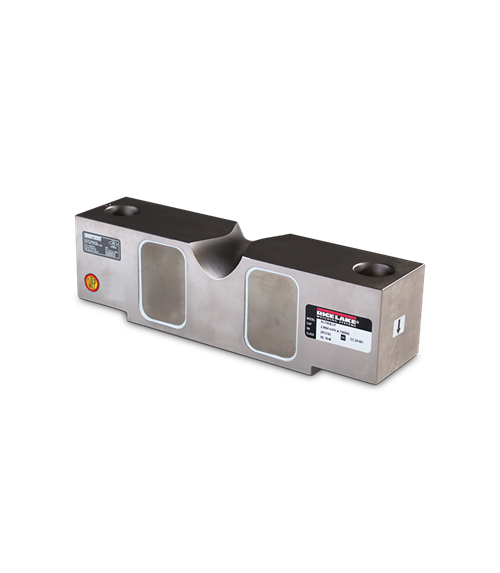

Rice Lake RL75058-LP Alloy Steel Double-Ended Beam Load Cell
Nickel plated, high-alloy steel load cell with built-in lightning protection. Available in capacities from 10,000 lb to 125,000 lb. Sealed to IP67, it has a 3 mV/V output and is FM approved and NTEP Certified.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL75058-LP Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: Cable Color Code: Warranty: Approvals: |

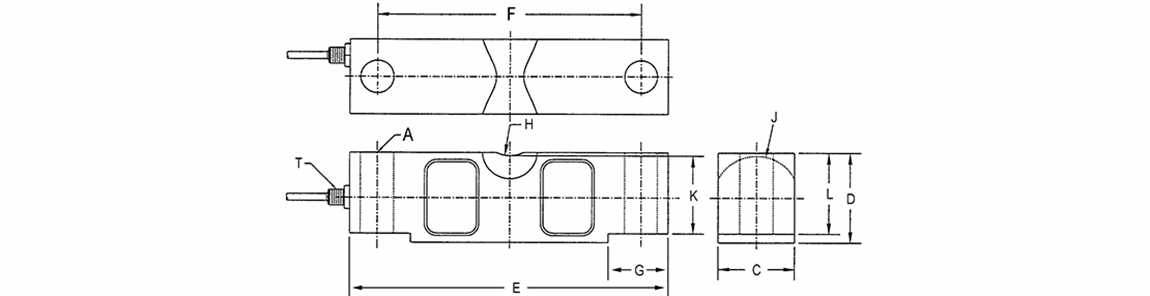

RL75058-LP Load Cell Dimensions
| Rated Capacity | A | C | D | E | F | G | H | J | K | L | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 10,000 to 25,000 | 0.68 | 1.69 | 1.94 | 7.75 | 6.50 | 1.38 | 0.75 | 0.90 | 1.63 | 1.70 | 1/4-18 NPT |
| 40,000 | 0.81 | 1.94 | 2.44 | 10.25 | 8.50 | 1.93 | 1.00 | 1.12 | 2.00 | 2.10 | 1/4-18 NPT |
| 50,000 to 75,000 | 1.06 | 2.44 | 2.94 | 10.25 | 8.50 | 1.93 | 1.00 | 1.37 | 2.54 | 2.65 | 1/2-14 NPT |
| 100,000 to 125,000 | 1.62 | 2.90 | 3.86 | 15.25 | 12.75 | 3.13 | 1.50 | 1.80 | 3.30 | 3.43 | 1/2-14 NPT |
Resources/Downloads
Parts
NTEP Certified 35ft Cable
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 197770 | Load Cell,DEB RL75058-LP 20k 20,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67 |
List Price: $673.00 |
|
| 197771 | Load Cell,DEB RL75058-LP 25k 25,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67 |
List Price: $673.00 |
|
| 197772 | Load Cell,DEB RL75058-LP 40k 40,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67 |
List Price: $805.00 |
|
| 197773 | Load Cell,DEB RL75058-LP 50k 50,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67 |
List Price: $885.00 |
|
| 197774 | Load Cell,DEB RL75058-LP 60k 60,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67 |
List Price: $885.00 |
|
| 197775 | Load Cell,DEB RL75058-LP 75k 75,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67 |
List Price: $885.00 |
|
| 197776 | Load Cell,DEB RL75058-LP 100k 100,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67 |
List Price: $1,669.00 |
|
| 197777 | Load Cell,DEB RL75058-LP 125k 125,000lb 35ft 3mv/v 700 OHM WW NTEP IIIL 10M FM IP67 |
List Price: $1,669.00 |
Non-NTEP Certified 35ft Cable
NTEP Certified 60ft Cable
NTEP Certified 100 ft Cable
