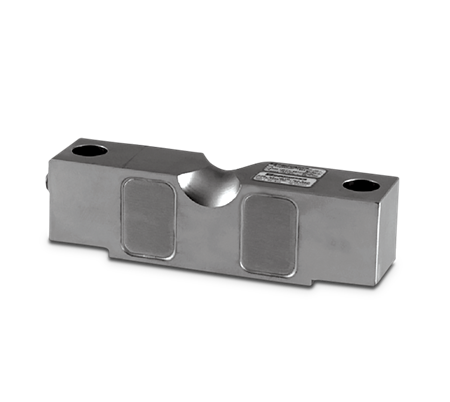

Rice Lake RL75058I Alloy Steel, Double-Ended Beam Load Cell

Nickel plated and environmentally sealed with stainless steel side plates. Designed for center link loading and compatibility with the Unilink or similar suspension systems up to 75,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
770 (± 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
35 ft

Cable Diameter:
10,000 to 25,000 lb: 0.200 in
40,000 to 125,000 lb: 0.305 in
Polyurethane jacket

Cable Coloring Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 98-143

Rated Capacity A C D E F G H J K L T
lb/in
10,000 to 25,000 0.68 1.69 1.94 7.75 6.50 1.38 0.75 0.90 1.63 1.70 1/4-18 NPT
40,000 0.81 1.94 2.44 10.25 8.50 1.93 1.00 1.12 2.00 2.10 1/4-18 NPT
50,000 to 75,000 1.06 2.44 2.94 10.25 8.50 1.93 1.00 1.37 2.54 2.65 1/2-14 NPT
100,000 to 125,000 1.62 2.90 3.86 15.25 12.75 3.13 1.50 1.80 3.30 3.43 1/2-14 NPT





Resources / Downloads

Title Download Email
RL75058I Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

rl-VPG-sensortronics-65058A-double-ended-beam-load-cell

VPG Sensortronics 65058A Alloy Steel, Double-ended Beam Load Cell

The VPG Sensortronics 65058A alloy steel, double-ended beam load cell is nickel plated and environmentally protected with stainless steel side plates.

rl-VPG-Celtron-CLB-double-ended-beam-load-cell

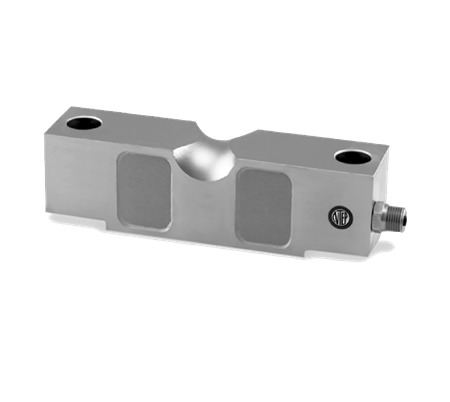

VPG® Celtron® CLB Alloy Steel, Double-Ended Beam Load Cell

The VPG Celtron CLB is an alloy steel, nickel-plated, double-ended beam load cell that is ideal for applications in truck, track, tank and hopper applications.

Portals 0 Products 36Be07c8fc6a40e6a17cfc3403ec5635 Orig

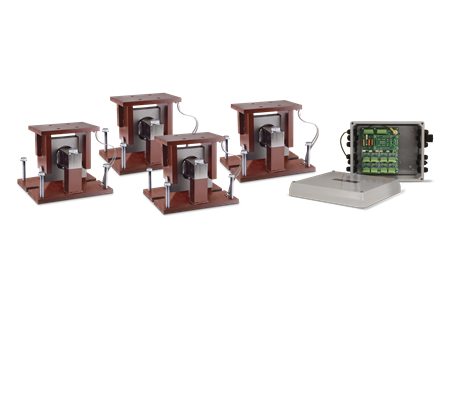

SURVIVOR® RL2100 HE Heavy-Capacity Weigh Module

The SURVIVOR RL2100 HE weigh module Incorporates an articulating load plate, hardened load pin and double-ended beam load cell into one simple design, tolerating eccentric loads and side loads of up to 100% of capacity.

Hdimage(1)

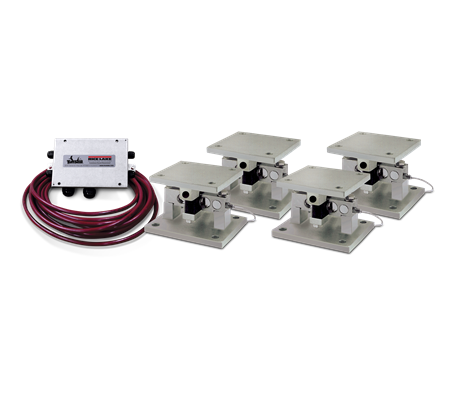

MVS Mount/MVS Weigh Modules
