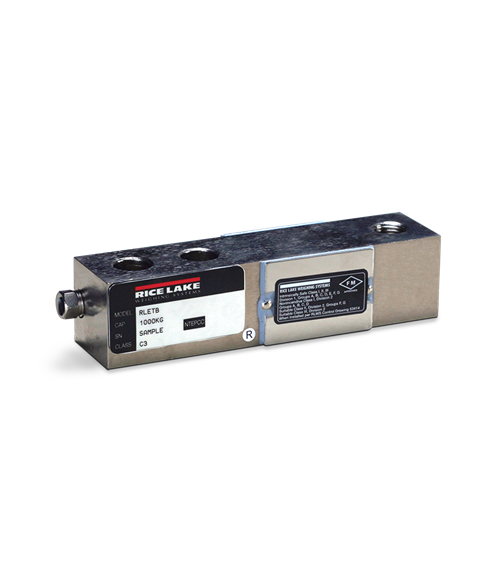

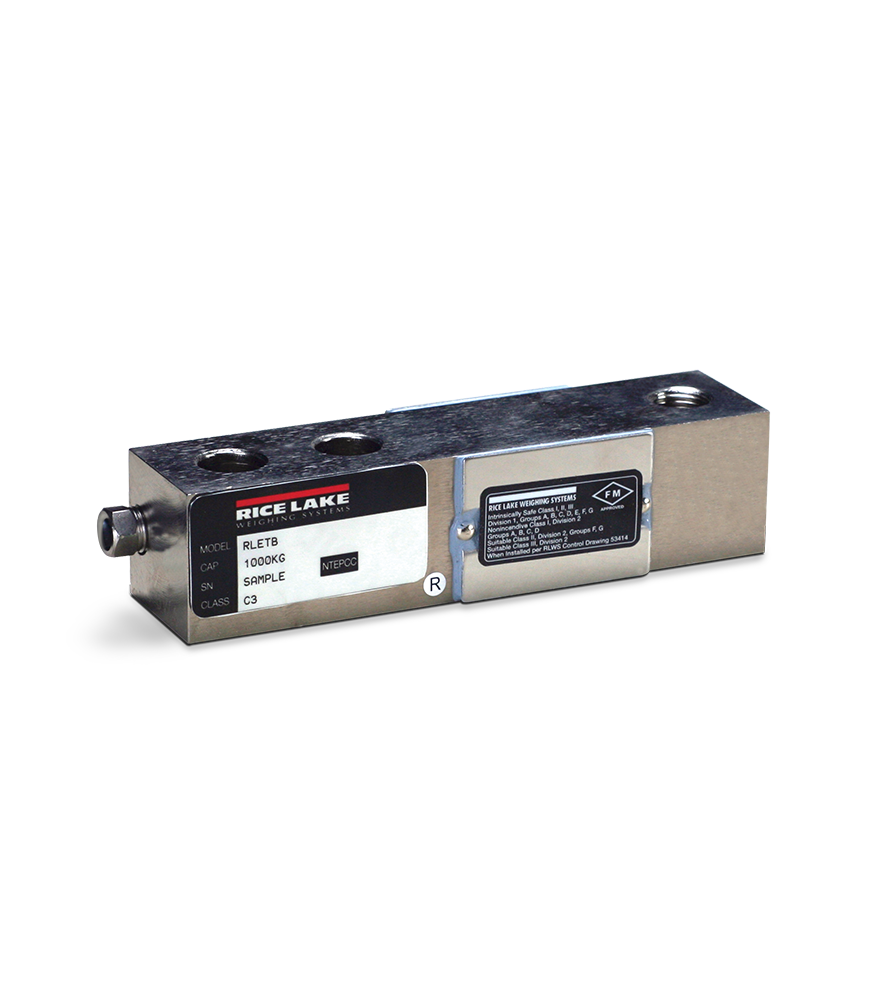

Rice Lake RLETB Alloy Steel, Single-Ended Beam Load Cell

Single-ended beam designed for low-profile scales and process applications. OIML approved and metric envelope capacities range from 1,000 to 5,000 kg. Complete with 6 m of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

OIML Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
Portals 0 Products 4E7e8d9c4c7a460ba1343567eaabef31 Orig

Full Scale Output:
3.0 mV/V

Output Resistance:
349 to 355 ohm

Input Resistance:
343 to 357 ohm

Material/Finish:
Alloy steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
6 m

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
OIML R60/1991-GB-95.08

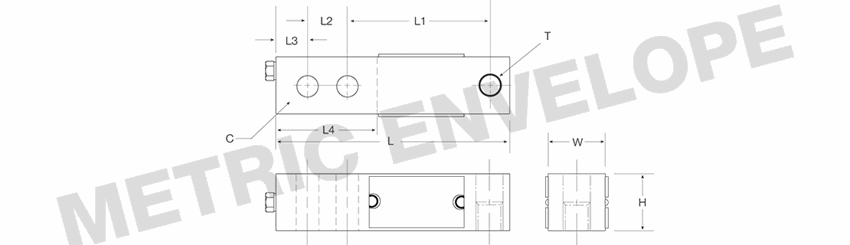

Rated Capacity C H L L1 L2 L3 L4 W T
kg/mm
1,000 to 2,000 57.0 32.0 130.0 76.0 25.0 16.0 13.0 32.0 M12 × 1.75-6H
5,000 76.0 38.0 171.0 95.0 38.0 19.0 20.7 38.0 M20 × 1.5-6H
