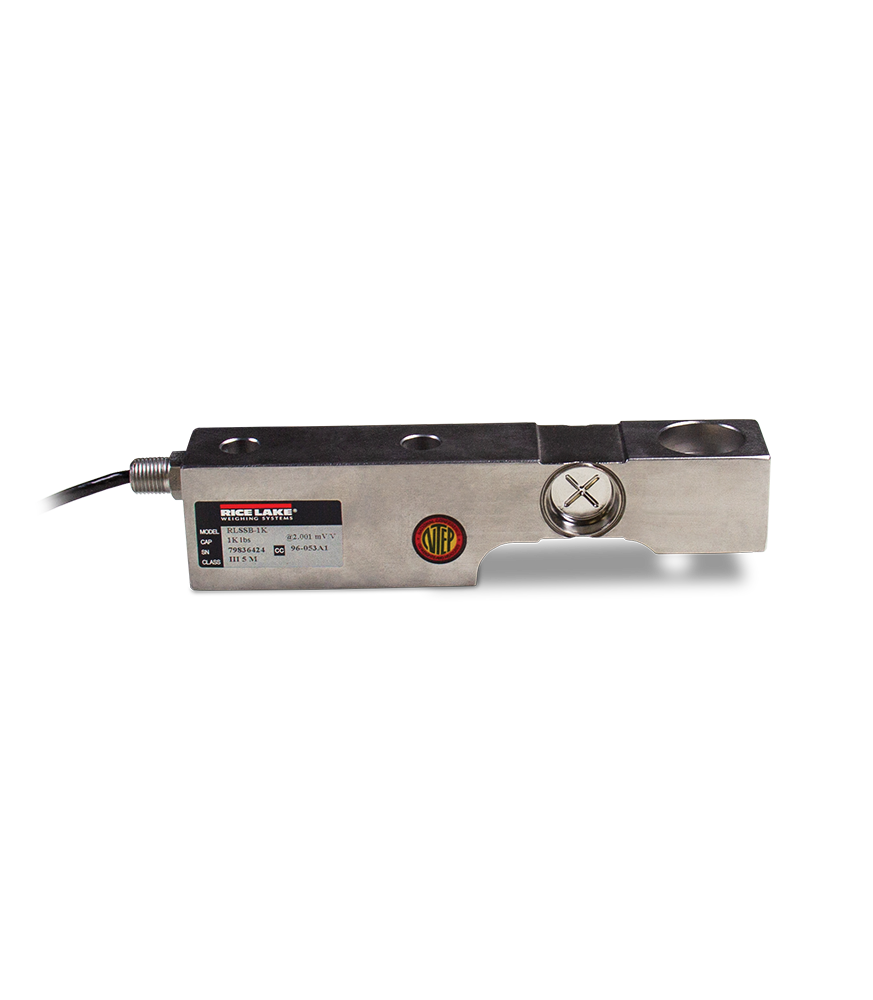

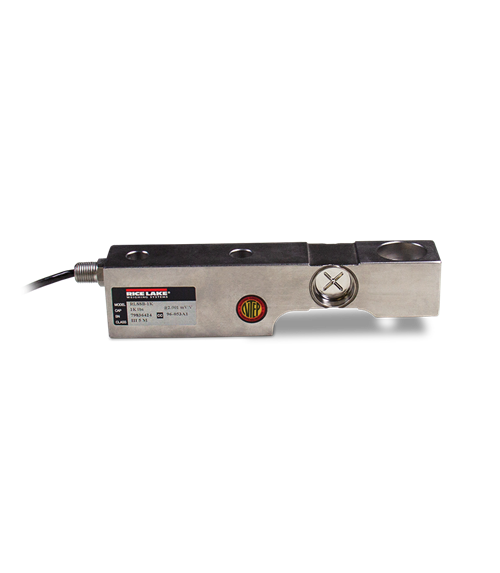

Rice Lake RLSSB Stainless Steel, Single-Ended Beam Load Cell
Rugged and precise single-ended beam offers welded-seal protection and stainless steel construction. Designed for use in the most hostile environments. Applications include platform scales, materials testing and process weighing. Capacities range from 1,000 lb to 10,000 lb. Complete with 15 ft of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RLSSB Load Cell Specifications
|
Full Scale Output: Bridge Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: |
Cable Length: Cable Diameter: Cable Color Code: Warranty: Approvals: |

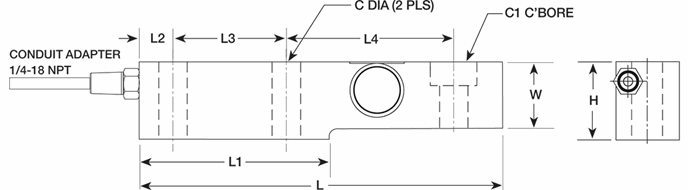

RLSSB Load Cell Dimensions
| Rated Capacity | C | C1 | H | L | L1 | L2 | L3 | L4 | W |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 1,000 to 5,000 | 0.53 | 0.68 thru C’Bore 1.19 × 0.47 DP | 1.88 | 8.00 | 4.00 | 0.75 | 2.50 | 3.88 | 1.44 |
| 10,000 | 0.88 | 1.00 thru C’Bore 1.63 × 0.62 DP | 2.75 | 9.25 | 4.62 | 0.81 | 2.63 | 4.88 | 1.88 |
Resources/Downloads
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 34310 | Load Cell,SEB RLSSB-1k 1,000lb 15ft 2mV/V 350 OHM NTEP III 5 M SST WS IP67 |
List Price: $636.00 |
|
| 34311 | Load Cell,SEB RLSSB-2k 2,000lb 15ft 2mV/V 350 OHM NTEP III 5 M WS IP67 |
List Price: $636.00 |
|
| 34312 | Load Cell,SEB RLSSB-5k 5,000lb 15ft 2mV/V 350 OHM NTEP III 5 M SST WS IP67 |
List Price: $636.00 |
|
| 34313 | Load Cell,SEB RLSSB-10k 10,000lb 15ft 2mV/V 350 OHM NTEP III 5 M SST WS IP67 |
List Price: $758.00 |
Options
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 26112 | Load Button Insert Kit, 1.168DIAx.750 1k-5k Capacity Only Stainless Steel |
List Price: $37.00 |
