RL101 Below-the-hook Scale

  • Low headroom (14.5 to 16.65 in)
  • Infrared remote control (up to 25 ft)
  • Carrying case
  • Single and multi-point calibration
  • Upper and lower shackles
  • Lift and weigh scale (or device)
Request More Information
WEB SC Ricelake 100 MCWN Left

Compact Digital Below-the-hook Scale

The easy-to-use RL101 below-the-hook (BTH) digital scale is ideal for overhead weighing in industrial environments. This reliable BTH scale is fitted with an infrared remote control which can be configured as a remote keypad. The infrared remote control can be used at a distance up to 25 feet. This compact BTH scale reduces the lifting distance for increased safety. Manufactured in strict compliance with the highest safety standards, the RL101 scale continues to sustain a 5:1 Ultimate Safety Factor.

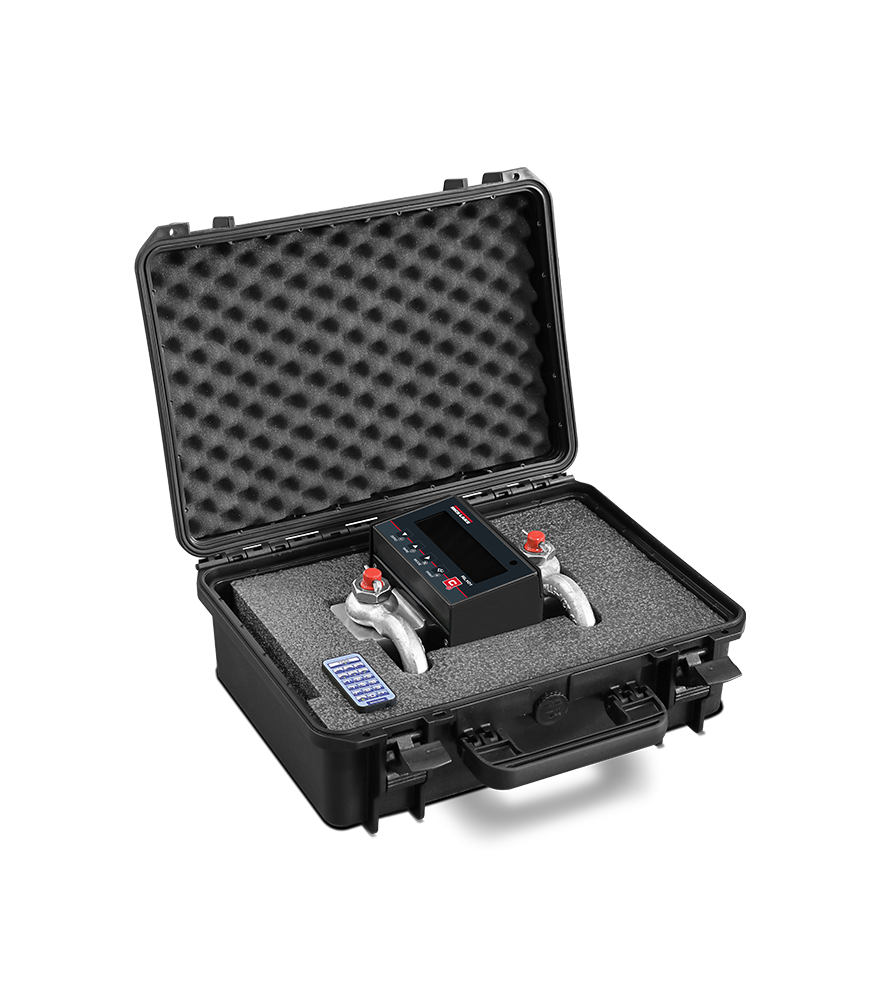

Ensuring operators can view weight in any lighting condition, the RL101 has a vibrant, LCD backlit display. A five-key waterproof keypad allows for easy zero, tare, mode, print and on/off controls. The RL101 comes in a sturdy transport case for extra protection.

Power:
Batteries: four AA (included)

Battery Life:
Up to 40 hours, standard configuration

Resolution:
3,000 d standard

Annunciators:
COZ, net, gross, low batt, lb/kg/t, motion, active weight range and tare

Keys/Buttons:
Five key: zero, tare, mode, print and on/off

Display:
1 in (25 mm) backlight, LCD

Displayable Units:
Pounds and kilograms, selectable

Accuracy:
± 0.03% of capacity

Design Overload:
150% Safe / 500% Ultimate

Auto-Off Mode:
Off, 1-minute intervals (programmable)

Shackles:
Forged, alloy steel (6:1 safety factor)

Temperature:
Operating: 14 °F to 104 °F (-10 °C to 40 °C)

Rating/Material:
IP54
Oven-fired painted steel

Filtering:
Various: overhead weighing-dYn.0, dYn.1, dYn.2, dYn.3

Warranty:
One-year limited

RL101 3k / 6K & 12k
A 7.09 (180 mm) H 3.48 in (88.5 mm) / 4.76 in (121 mm)
B 3.15 in (80 mm) I 1.07 in (27 mm) / 1.46 in (37 mm)
C 0.63 in (16 mm) / 0.87 in (22 mm) J 1.70 in (43 mm) / 2.28 in (58 mm)
D 1.58 in (40 mm) / 2.17 in (55 mm) K 7.72 in (196 mm) / 7.32 in (186 mm)
E 4.10 in (104 mm) L 13.19 in (335 mm) / 14.92 in (379 mm)
F 9.67 in (246 mm) M 14.49 in (368 mm) / 16.65 in (423 mm)
G 5.35 in (136 mm)



Resources / Downloads

Title Download Email
RL101 Below-the-Hook Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Overhead Weighing Safety and Periodic Maintenance Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No
RL101 Quick Reference Guide A Download Email Overhead Weighing Systems No
RL101 Operation Manual A Download Email Overhead Weighing Systems No
RL101 Technical Manual B Download Email Overhead Weighing Systems No
RL101 Serial Protocol Technical Manual A Download Email Overhead Weighing Systems No

Title Collateral Wizard Request Download Email Category
RL101 Below-the-Hook Scale Request Download Email Overhead Weighing Systems

Title View Download Email Category
Get to Know the RL101 Below-the-hook Digital Scale View Download Email Overhead Weighing Systems

Parts

Part # Description List Price Cart / Quote
219144 Scale, RL101-3k BTH 3000lb capacity, Below-The-Hook, Multi-Range

List Price: $1,750.00
219145 Scale, RL101-6K BTH 6000lb capacity, Below-The-Hook, Multi-Range

List Price: $1,950.00
219147 Scale, RL101-12k BTH 12,000lb capacity, Below-The-Hook, Multi-Range

List Price: $2,100.00
