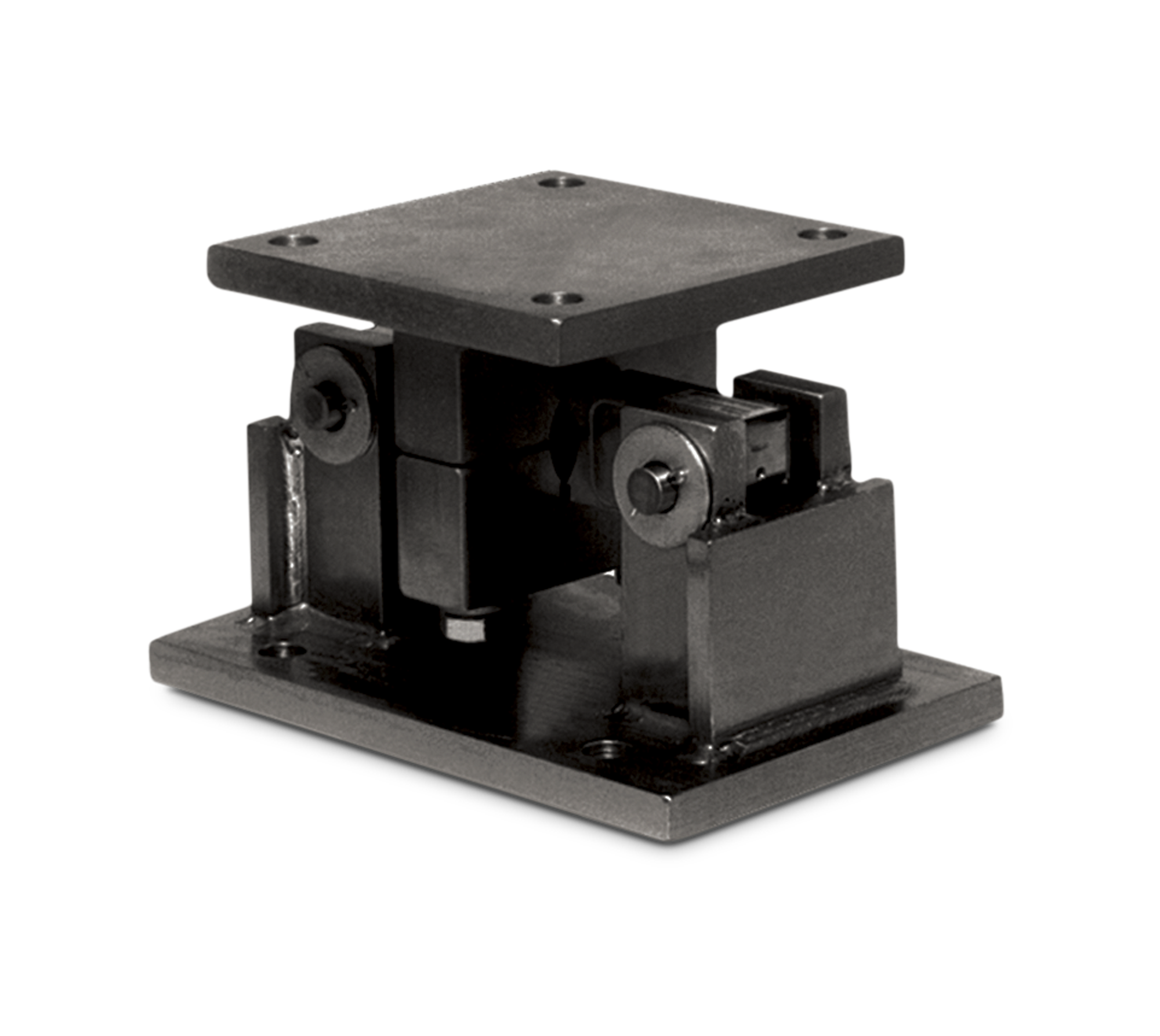

RL1600 Series Mild Steel Weigh Module with RL77032 Load Cell

Complete Kit Includes

  • Three or four RL1600 mild steel compression mounts with RL77032 environmentally protected double-ended shear beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of our hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 1,000 to 75,000 lb
  • Coated mild steel construction
  • Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
  • Double-ended shear beam design, center loaded
  • Compatible with VPG® Sensortronics® 65016 load cells

Applications

  • Medium- to heavy-capacity tanks, bins and hoppers
  • Bulk material management
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
Hdimage(1)

Self-Checking Weigh Module

The RL1600 Series mounting module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1600 Series kit is ideally suited for indoor and outdoor process control operations in the medium- to high-capacity ranges. Each module incorporates self-checking capabilities for thermal expansion and contraction.

Rated Capacity C H H1 H2 L L1 L2 L3 T W W1 W2 W3
lb/in
1,000 to 5,000 0.56 5.00 0.50 0.50 9.25 2.75 4.00 6.25 1/2-13 UNC 5.00 3.75 2.75 4.00
10,000 to 25,000 0.78 7.87 0.75 0.75 12.00 6.00 8.00 7.50 3/4-10 UNC 8.00 6.00 6.00 8.00
50,000 to 75,000 0.78 9.25 1.00 1.00 16.25 6.50 9.00 11.50 1 1/4-7 UNC 12.00 9.50 6.50 9.00

Resources / Downloads

Title Version Revision Download Email Category Archived
RL 1600 Weigh Module Kit Installation Guide B Download Email Weigh Modules No
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
RL1600/65016 TWA Series Tank Weighing Assembly Mild Steel Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
RL1600 Series Weigh Module Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Module (Does NOT Include Load Cell)

Part # Description List Price Cart / Quote
17812
Mount,RL1605 1,000-5,000 lb Mild Steel Compression No Cell

List Price: $185.00
17814
Mount,RL1625 10,000- 25,000 lb Mild Steel Compression No Cell

List Price: $357.00
17816
Mount,RL1650 50,000lb Mild Steel Compression No Cell

List Price: $1,197.00
25346
Mount,RL1600 75,000lb Mild Steel Compression No Cell

List Price: $1,197.00

3-Module Kit

4-Module Kit

VPG Sensortronics 65016 3-Module Kit

VPG Sensortronics 65016 4-Module Kit

Options

Dummy Load Cells (Mild Steel)

Part # Description List Price Cart / Quote
18236 Dummy Load Cell,1-1/4DIAx 7-1/2 1k-5k Steel 75016/65016

List Price: $26.00
18237 Dummy Load Cell,2DIAx 8-3/4 10k-25k Steel 75016-65016

List Price: $42.00
18238 Dummy Load Cell,3Dia x 13-1/2 50k Steel 75016/65016

List Price: $56.00

Mild Steel Shims 1,000 to 5,000 lb

Mild Steel Shims 10,000 to 25,000 lb

Mild Steel Shims 50,000 to 75,000 lb

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
