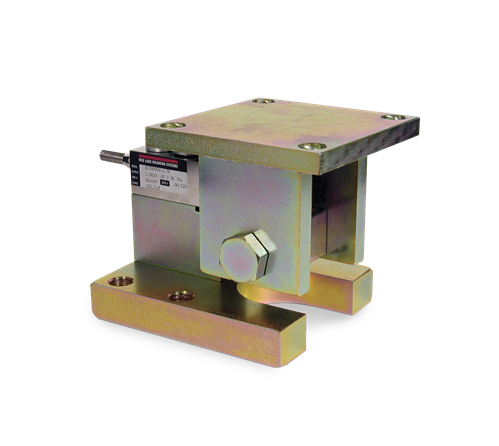

RL1800 Series with MLC Coated Load Cell

Complete Kit Includes

  • Three or four RL1800 stainless steel compression mounts with MLC coated RL32018 NTEP Certified single-ended beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 1,000 to 10,000 lb
  • NTEP Certified cells in 1,000 to 10,000 lb capacities
  • Stainless steel mounts
  • Center-pivoted, tension loading design
  • Self-checking, multi-directional movement
  • Load is suspended on high-strength bolt instead of wire rope
  • Design incorporates spherical washers for self centering
  • Coated load cells for corrosion protection

Applications

  • Conveyors
  • Medium-capacity tanks and hoppers

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

RL1800 Series Painted Load Cell Version

The RL1800 Series stainless steel weigh modules with painted, single-ended beam load cells provide accurate weighing solutions in corrosive environments such as fertilizer producers. Each module combines multi-directional movement and self-checking capabilities. The load cells used are NTEP Certified in capacities of 1,000 to 10,000 lb.

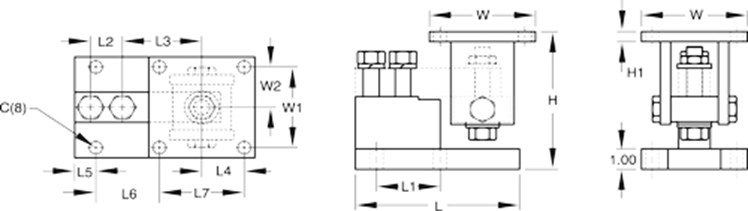

Rated Capacity C H Min/Max H1 L L1 L2 L3 L4 L5 L6 L7 W W1 W2
lb/in
1,000 to 4,000 0.62 5.25/5.56 0.50 6.00 2.00 1.00 3.00 2.00 0.68 1.94 4.00 5.00 4.00 2.00
5,000 tp 10,000 0.62 6.12/6.62 0.50 7.75 3.00 1.50 3.75 2.00 1.03 2.97 4.00 5.00 4.00 2.00

Resources / Downloads

Title Download Email
RL1800 Series Coated Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
RL1800 Series Weigh Module Kit Manual C Download Email Weigh Modules No
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Collateral Wizard Request Download Email Category
RL1800 Series Weigh Module Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Module (Does NOT Include Load Cell)

Part # Description List Price Cart / Quote
17818 Mount,RL1805 SS 250-5,000 lb SE SST Compression No Cell

List Price: $640.00

17820 Mount,RL1810 SS 5,000- 10,000 lb LE SST Compression No Cell

List Price: $675.00

3-Module Kit

4-Module Kit
