Product PDF

RoughDeck BDP Mild Steel - Portable Model

  • Live side rails
  • Top-access foot adjustment holes
  • Holes are 1/2-13 threaded for lifting scale
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Treaded top plate
  • Alloy steel load cells
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
RL-RoughDeck-BDP-Mild-Steel-Portable-Model

Portable Barrel and Drum Pallet Scale

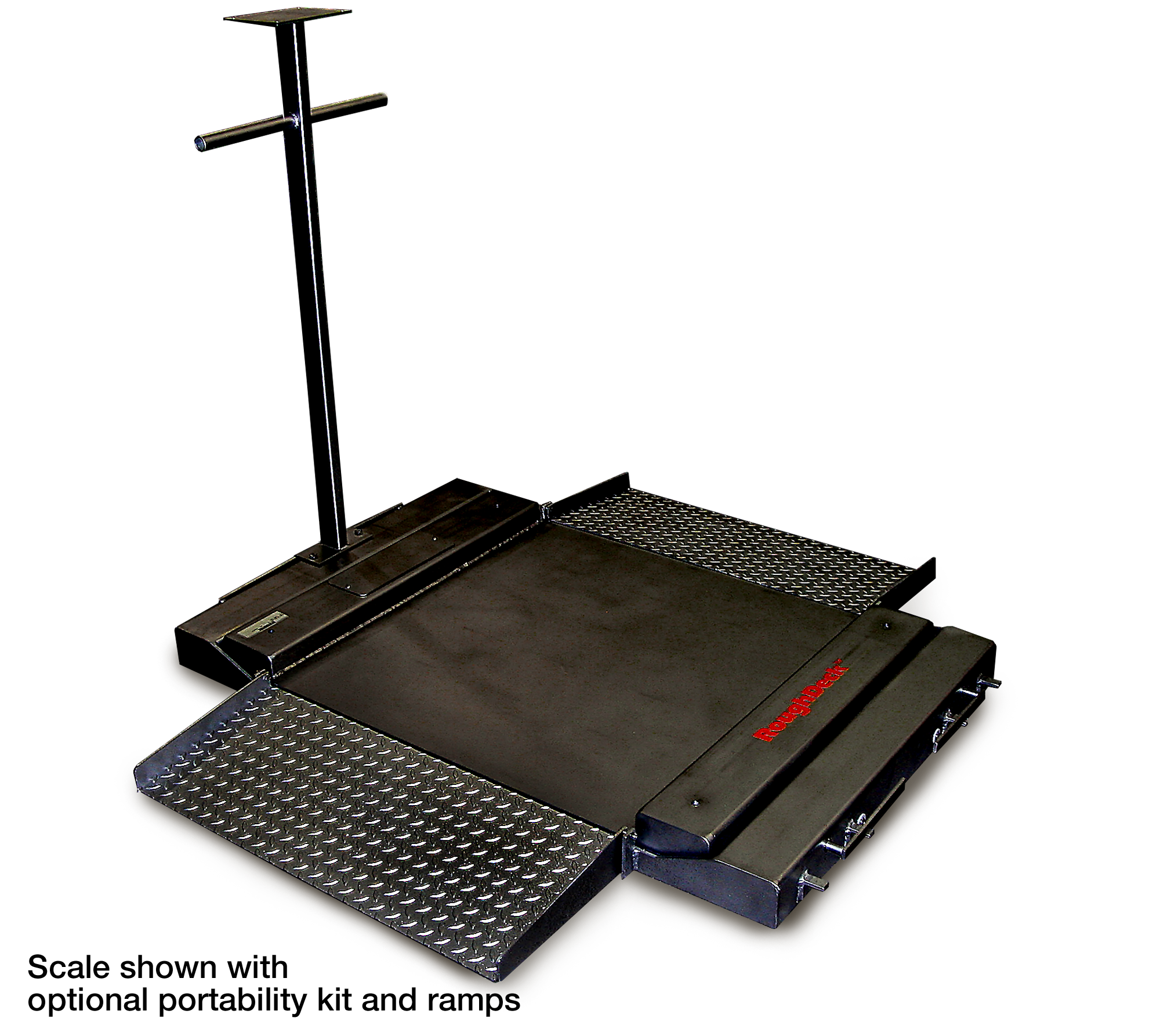

Take the stationary RoughDeck BDP floor scale where you need it with the optional Portability Kit.  Perfect for material handling fieldwork applications, the compact, low-profile frame showcases a lifting mechanism that, when engaged, allows the operator to move the scale in any direction. The frame also includes brackets for mounting optional access ramps, providing maneuverable approaches for any material.

Four NSF-approved caster-designed wheels enable the operator to move the scale easily and effortlessly. Use the indicator stand with any of Rice Lake's indicators, and you will have a complete weighing system at your command, anywhere you can take it.

End Load Capacity:
1,000 lb: 100% full scale
2,500 lb: 80% full scale

Cable Length:
10 ft (3 m)

Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Stitch

Threaded Eyebolt:
Hole (1/2-13 NC) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
NTEP CC 03-060, Class III 2,500 d
Measurement Canada AM-5578
(500 kg) Class III 2,500 d
(1,000 kg) Class III 2,000 d

Dimensions
Portability frame and hinged access ramps
30 x 31 in models
A 30.0 in  G 29.25 in  J 52.25 in
B 31.0 in  H 3.25 in  L 40.37 in
D 3.66 in  I 49.25 in  M 12.0 in
36 x 37 in models
A 36.0 in  G 35.25 in  J 58.25 in
B 37.0 in  H 3.25 in  L 40.37 in
D 3.66 in  I 55.25 in  M 12.0 in
Note: 1 in = 25.4 mm
Distance from floor to top of center weighing surface: 1.94 in
Distance from floor to bottom of weighing surface: 0.62 in



Resources / Downloads

Title Download Email
RoughDeck BDP Mild Steel - Portable Model Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck BDP Manual B Download Email Floor Scales|Platform Scales No

Title Download Email
Mild Steel RoughDeck BDP Portability Frame Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
RoughDeck BDP Sales Literature Request Download Email Floor Scales

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales
RoughDeck BDP Scale and Portability Frame Demonstration View Download Email Floor Scales

Parts

RoughDeck BDP Scale

Part # Description List Price Cart / Quote
77962 Scale, Barrel Roughdeck BDP 30x31x1.625 1,000 lb steel painted

List Price: $2,135.00
77963 Scale, Barrel Roughdeck BDP 30x31x1.625 2,500 lb steel painted

List Price: $2,135.00
77964
Scale, Barrel Roughdeck BDP 36x37x1.625 1,000 lb steel painted

List Price: $2,285.00
77965 Scale, Barrel Roughdeck BDP 36x37x1.625 2,500 lb steel painted

List Price: $2,285.00

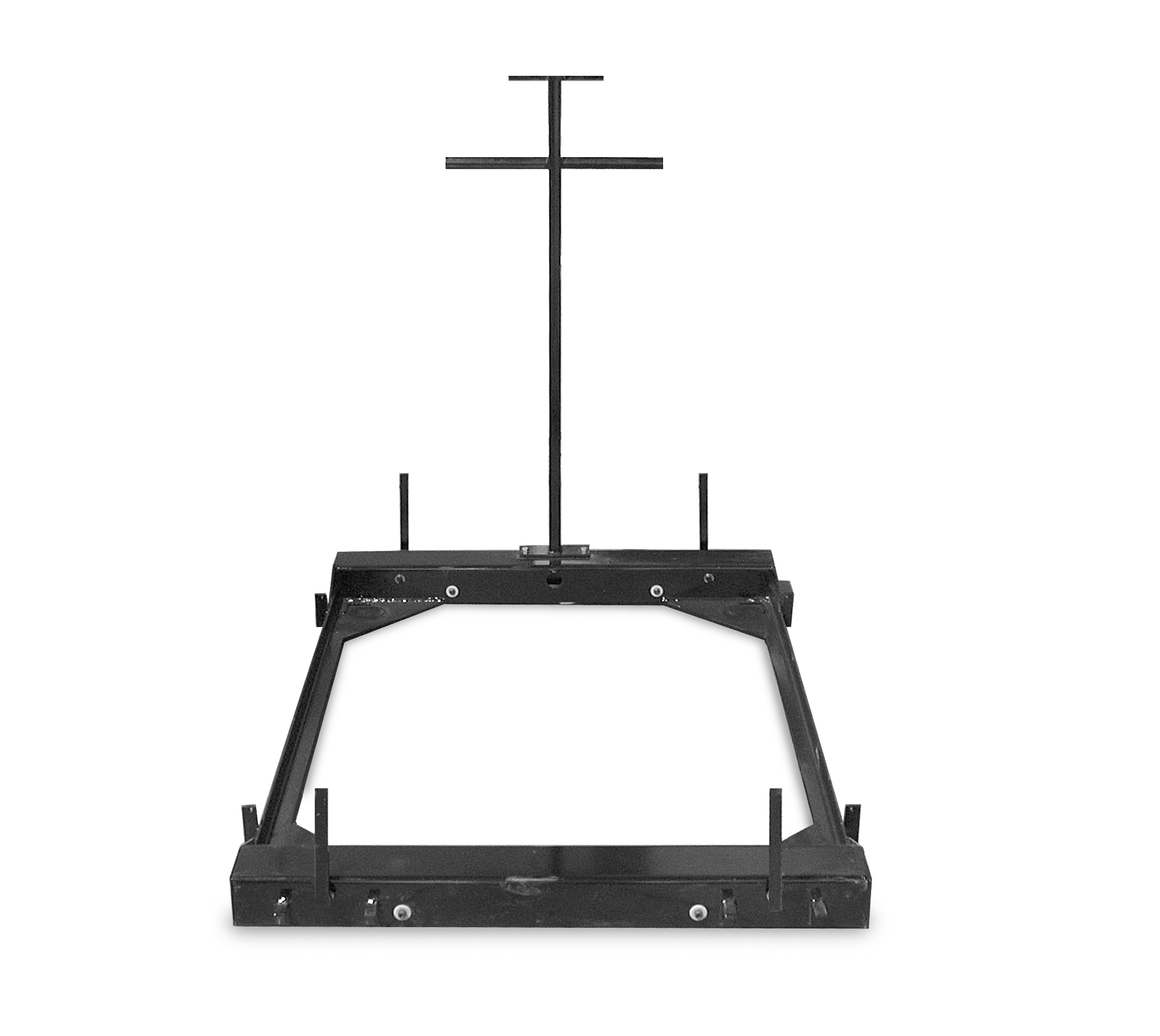

RoughDeck BDP Portability Kit - Kit includes: frame, two swivel and two fixed zinc plated steel NSF approved wheels (75 lb max. load capacity), indicator stand

RoughDeck BDP Portability Kit with conductive wheels for use with 882IS

Hinged Access Ramps: For use with portability kit

Options

Part # Description List Price Cart / Quote
214612 Backstop, Roughdeck BDP 30 Inches Wide Steel Painted Mounting Hardware Included

List Price: $195.00
214613 Backstop, Roughdeck BDP 36 Inches Wide Steel Painted Mounting Hardware Included

List Price: $195.00
Consult Mild steel deck with RL32018S IP66 stainless steel (cFMus approved) load cells, and hardware

Consult
Consult Mild steel deck with RL32218S-HE hermetically sealed IP69K stainless steel cFMus approved load cells and hardware

Consult

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
