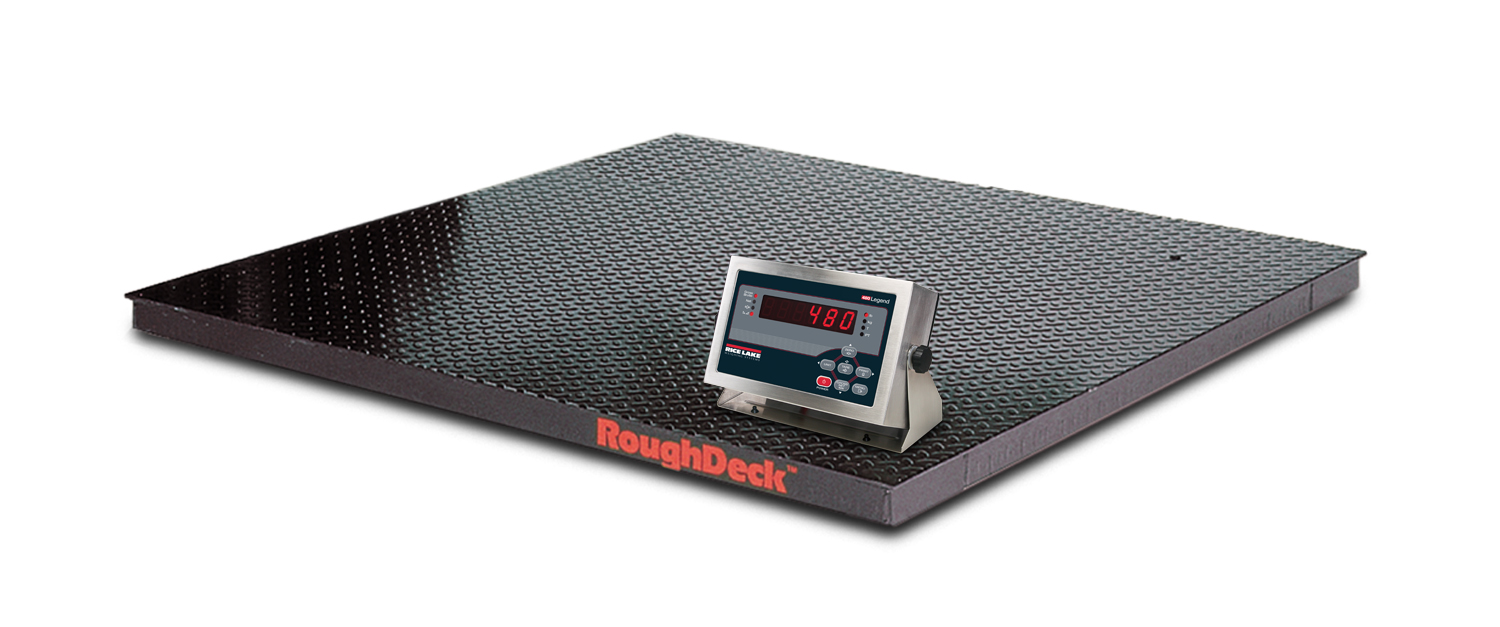

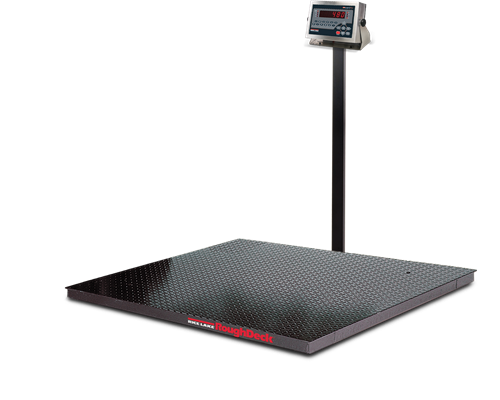

RoughDeck® Rough-n-Ready, Floor Scale System with 480/480 Plus Indicator
- Package includes: RoughDeck HP 4 ft × 4 ft × 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 480/480 Plus indicator
- Package is factory-calibrated for 5,000 divisions
Scale
- Heavy-duty design with structural steel under support
- Four NTEP certified alloy steel shear beam load cells
- Side-access JB4SS TuffSeal® junction box
Indicator
- LED display
- Time and date battery backed
- Numeric keypad (480 Plus only)
- Communication ports
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Complete Floor Scale Package with RoughDeck® HP Floor Scale and 480/482 Legend® Series Indicator
Rice Lake’s RoughDeck HP floor scale has a heavy-duty industrial design and a structural steel channel frame. It has four NTEP-certified alloy steel shear beam load cells and a 20-foot SURVIVOR® EL147HE hostile environment load cell cable. The RoughDeck HP’s NEMA Type 4X aluminum TuffSeal® junction box is protected from forks and industrial abuse by a six-inch structural steel channel frame and diamond treadplate safety deck.

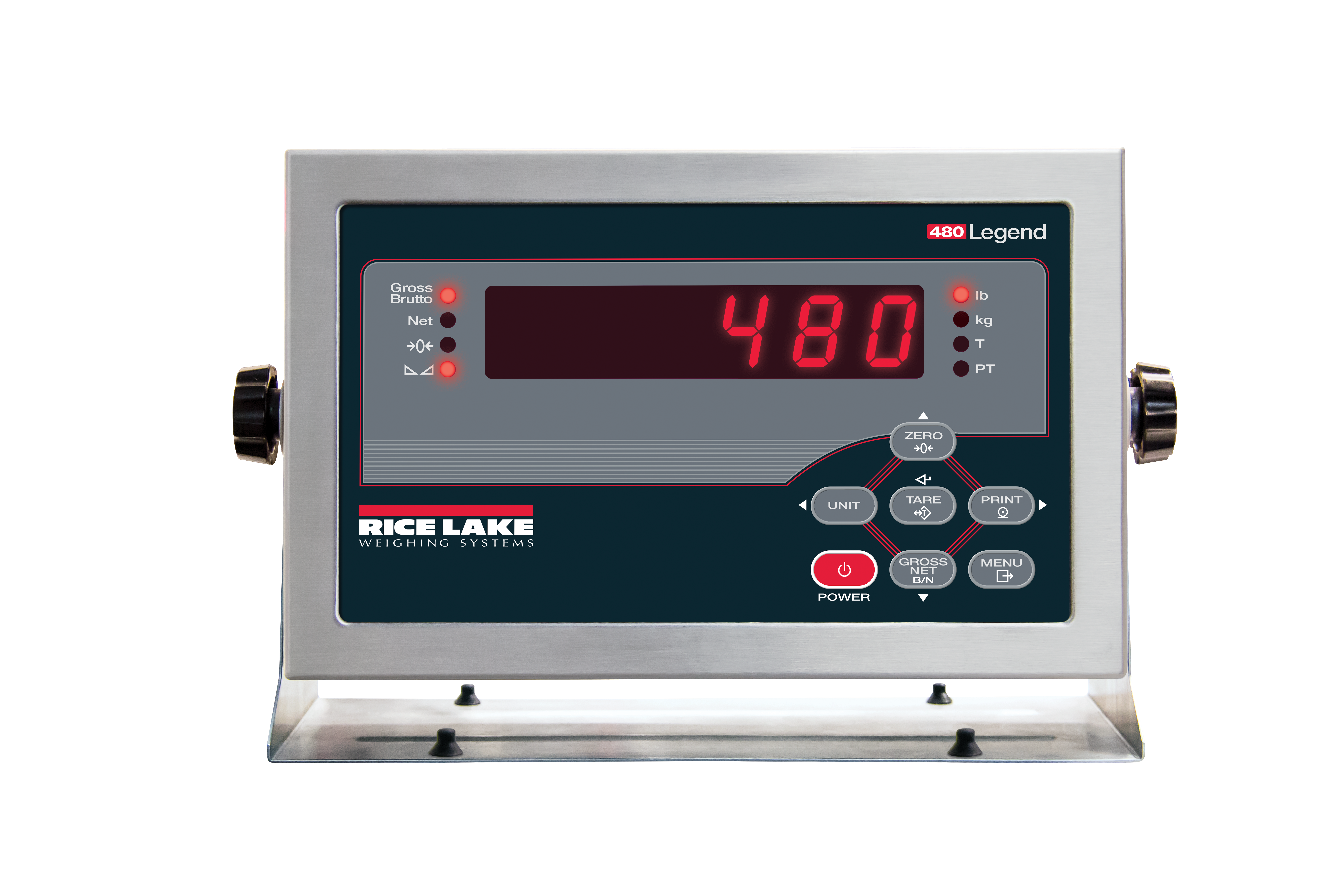

This package pairs the 480 Legend Series digital weight indicator with the RoughDeck. Rice Lake’s 480 has a 0.8-inch 6-digit LED display, NEMA Type 4X/IP66 stainless steel washdown enclosure and programmable ticket formats for gross, net, accumulator and setpoints.
This package can also pair the 482 Legend Series digital weight indicator with the CW-90B. Rice Lake’s 482 has a 0.8-inch 6-digit LCD backlit display and a NEMA Type 4X/IP66 stainless steel washdown enclosure, making it ideal for demanding workplaces. Advanced circuitry withstands electrical noise, power disturbances and transient spikes common to industrial applications.
RoughDeck Specifications
|
End Load Capacity: Cable Length: |
Threaded Eyebolt: Warranty (limited): |
Approvals: |
480/480 Indicator Specifications
|
Communication Ports:
|
Display: Annunciators: Keys/Buttons: |
Rating/Material: Approvals: |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| Getting to the Point of Point Loading |  Email |
Floor Scales | Articles |
Parts
115 VAC - 4 ft x 4 ft x 3.5 in RoughDeck (NTEP Certified) Indicator Package with Tilt Stand
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| 155666 | Scale PKG, Rough-n-Ready 4x4-5k Roughdeck HP/480 Legend 115VAC Factory Calibrated |
List Price: $3,015.00 |
|
| 168140 | Scale PKG, Rough-n-Ready 4x4-5k Roughdeck HP/480 Plus Legend 115VAC Factory Calibrated Calibrated |
List Price: $3,015.00 |
|
| 155667 | Scale PKG, Rough-n-Ready 4x4-10k Roughdeck HP/480 Legend 115VAC Factory Calibrated |
List Price: $3,015.00 |
|
| 168141 | Scale PKG, Rough-n-Ready 4x4-10k Roughdeck HP/480 Plus Legend 115VAC Factory Calibrated |
List Price: $3,015.00 |
230 VAC - 4 ft x 4 ft x 3.5 in RoughDeck (NTEP Certified) Indicator Package with Tilt Stand
115 VAC 4 ft x 4 ft x 3.5 in RoughDeck (Canadian Weights and Measures Approved) Indicator Package with Tilt Stand
Options
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| 18777 | Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted |
List Price: $38.00 |
|
|
19352
|

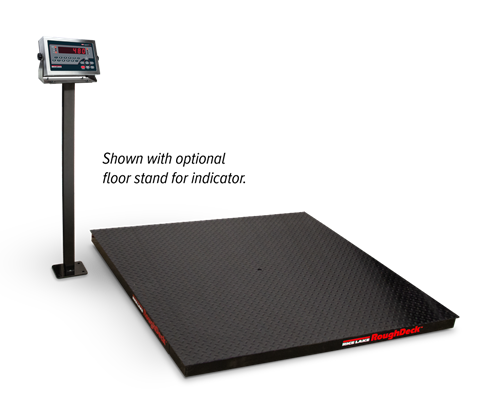

Floor Stand,Indicator Steel Painted (36.3in) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy
|
List Price: $250.00 |
|
| 126384 | Floor Stand,Indicator Steel Painted (48in.) For 120/120 Plus, 882IS/882IS Plus, 882IS/882IS Plus w/battery, 880/880 Plus, 480/480 Plus, 482/482 Plus, 680 Synergy, 380/380X Synergy, 381 Synergy |
List Price: $275.00 |
|
| Consult | Access ramps, pit frames, bumper guards and portability frames available |
Consult |
