RoughDeck® RP Rodent Protection Floor Scale

  • Heavy-duty industrial design
  • Structural steel channel frame
  • Four NTEP Certified alloy steel, shear beam load cells
  • 20 ft SURVIVOR® EL147HE hostile environment load cell cable with 1/2-inch conduit fitting (conduit for home run cable to be supplied by customer)
  • Top-access junction box with additional top access cover for routing load cell cable into scale conduit
  • Rugged diamond deck safety treadplate
  • Four adjustable stainless steel SUREFOOT™ support feet
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

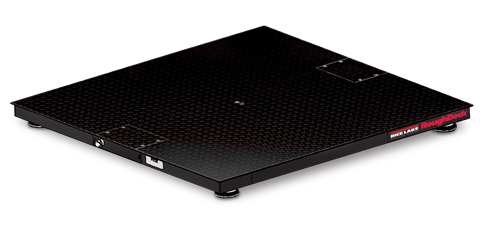

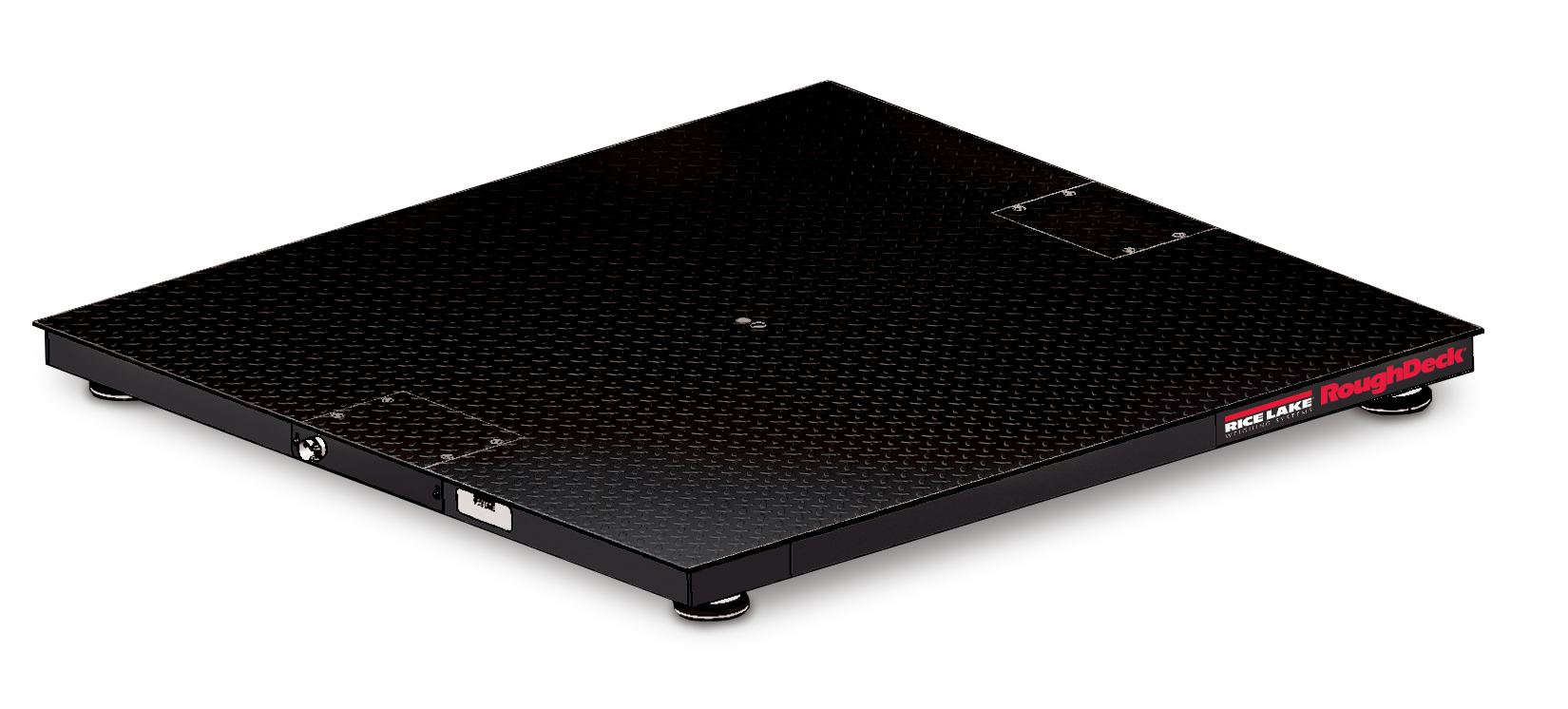

RoughDeck RP Rodent Protection Floor Scale

Industrial Floor Scales with Added Protection

The RoughDeck RP rodent protection floor scale is built for durability and engineered with an industrial design and structural steel channel frame to prevent rodents from accessing cables. This industrial floor scale is Legal for Trade and has deck access for the NEMA Type 4X TuffSeal® junction box for easy access. The RoughDeck RP has a rugged diamond treadplate on the deck for safety, while adjustable stainless steel support feet simplify leveling.

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator
Note: 1/2 in conduit fitting supplied, conduit for home run cable to be supplied by customer

Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Stitch

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
NTEP CC 92-001, Class III 5,000d

Resources / Downloads

Title Download Email
RoughDeck RP Catalog Page Download Email

Title Version Revision Download Email Category Archived
RoughDeck RP Rodent Protection Floor Scale Installation Manual A Download Email Platform Scales|Floor Scales No

Parts

Part # Description List Price Cart / Quote
195834 Scale,Floor Roughdeck 4x4RP-5K 4ftx4ftx3-1/2 5,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted, Internal conduit and rodent protection cable Note: customer to supply flexible conduit for homerun cable

List Price: $2,540.00
195835 Scale,Floor Roughdeck 4x4RP-10K 4ftx4ftx3-1/2 10,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted, Internal conduit and rodent protection cable Note: Customer to supply flexible conduit for homerun cable

List Price: $2,540.00
195836 Scale,Floor Roughdeck 5x5RP-5K 5ftx5ftx3-1/2 5000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted, Internal conduit and rodent protection cable Note: Customer to supply flexible conduit for homerun cable

List Price: $3,000.00
195837 Scale,Floor Roughdeck 5x5RP-10K 5ftx5ftx3-1/2 10,000lb 20ft w/o Quick Connect NTEP III 5 Steel Painted, Internal conduit and rodent protection cable Note: Customer to supply flexible conduit for homerun cable

List Price: $3,840.00

Options

Part # Description List Price Cart / Quote
18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted

List Price: $38.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
