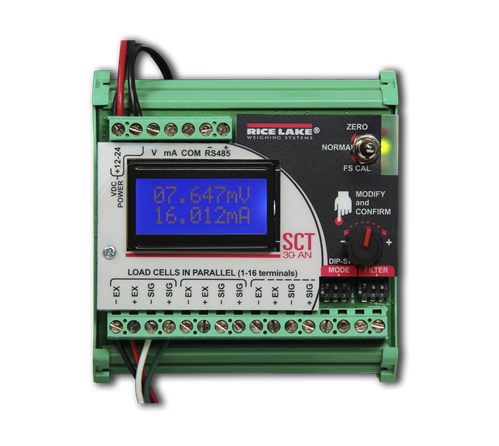

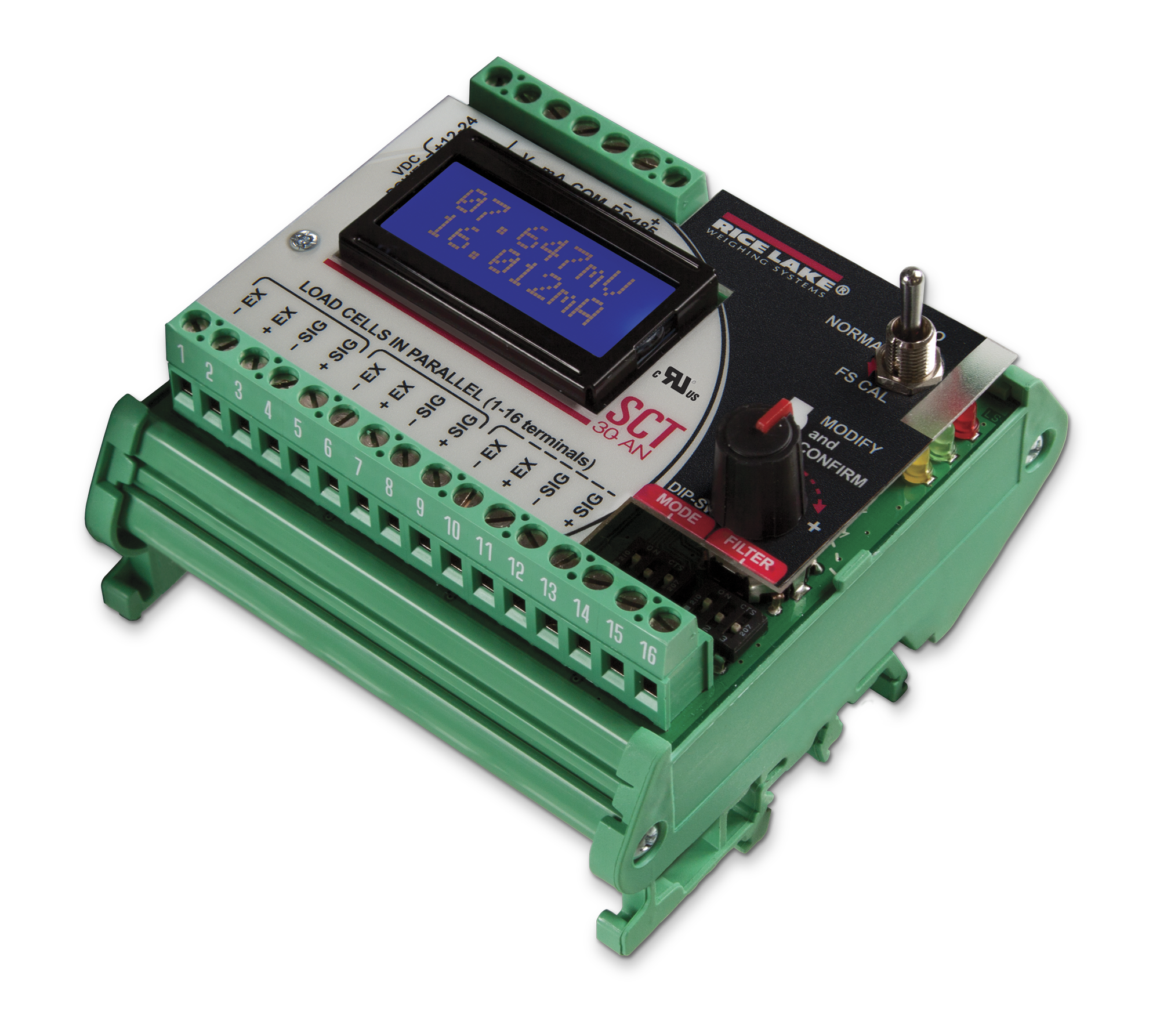

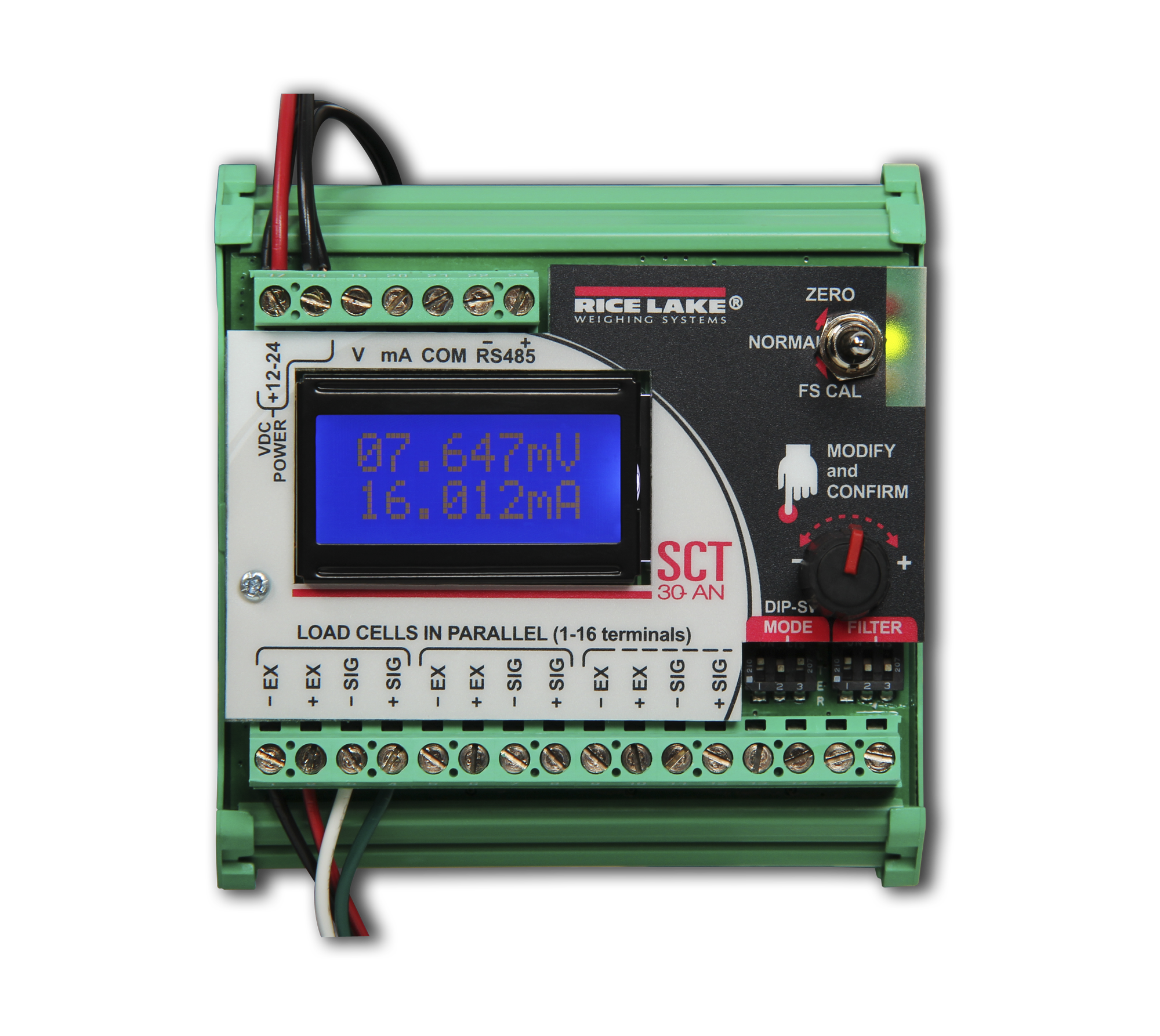

SCT-30 Signal Conditioning Transmitter

  • LCD display
  • Powers up to eight (350 ohm) load cells in parallel (with a 24-bit A/D converter)
  • A/D converter 24-bit 4.8 kHz
  • 16-bit analog output: 0-20 mA, 4-20 mA, 0-5 V, 0-10 V, ±5 V, and ±10 V
  • Mounting on Omega/DIN rail for back panel or junction box
  • Diagnostic message for load cell disconnect and over-capacity errors
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

UL-Recognized_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-sct-30-signal-transmitter

Maximum Control, Miniature Size

For PLC systems that require weight data from a scale, Rice Lake’s compact SCT-30 transmitter delivers equivalent signal-conditioning function without the cost or bulk of a full-size weight indicator/controller.

Rice Lake's SCT-30 models are DIN-rail mountable within a cabinet or control panel, where they convert a scale’s load cell signal to serial or analog output. Technicians and operators find the analog output signal particularly useful for monitoring hopper filling and discharge. Unlike many other signal transmitters, Rice Lake SCTs have their own integrated display, with annunciators for unit and weighing status, and push buttons or toggle switch and digital rotary for zero, tare and setpoint entry—ultimately simplifying scale setup, calibration and operation.

Power:
Input: 12 to 24 VDC

Power Consumption:
3 W

Excitation Voltage:
5 VDC, 120 mA, 8 × 350 ohm load cells

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1.0 μV/graduation recommended

A/D Sample Rate:
300 Hz

Resolution:
Internal: 16,000,000 counts

System Linearity:
± 0.01% full scale

Communication Ports:
RS-485

Analog Output:
Opto isolated, 16 bit
0-20 mA, 4-20 mA (max 300 ohm)
0-10 VDC, 0-5 VDC (min 10 k ohm)

Display:
Eight-digit alphanumeric tow line LCD, 5 mm high

Keys/Buttons:
Control knob and DIP switches

Dimensions:
(L × W × H)
3.74 × 3.54 × 2.36 in
(95 × 90 × 60 mm)

Temperature:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)

Humidity:
85% non-condensing

Rating/Material:
DIN rail mount: NEMA Type 1

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approval:
cULus Recognized
