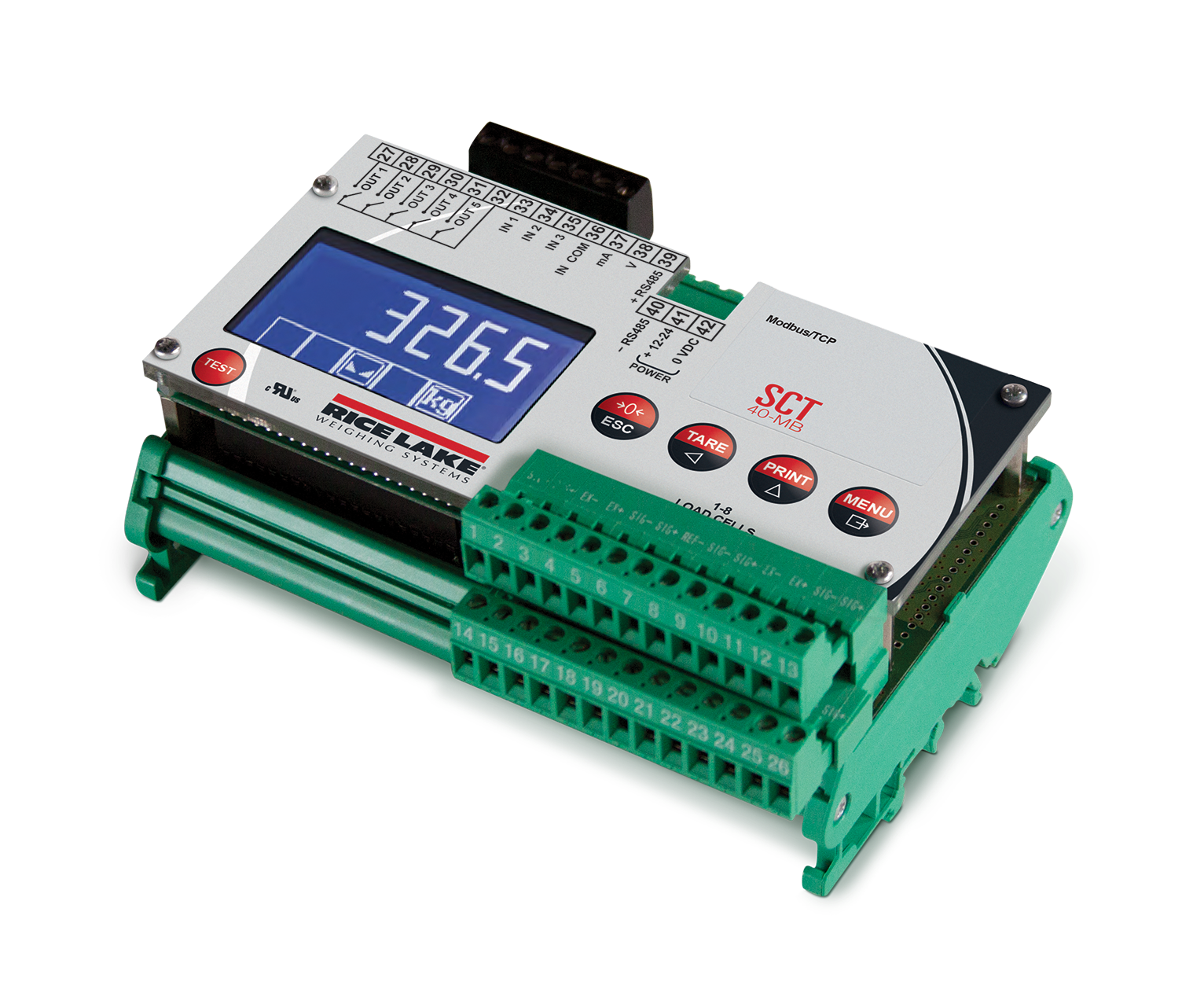

SCT-40 Signal Conditioning Transmitter

Power:
Input: 12 to 24 VDC

Power Consumption:
5 W

Excitation Voltage:
5 VDC, 240 mA, 16 x 350 ohm load cells

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1.0 μV/graduation recommended

A/D Sample Rate:
600 Hz

Resolution:
Internal: 16,000,000 counts
Display: 999,999

System linearity:
± 0.01% full scale

Digital I/O:
3 inputs 5 to 24 VDC, 5 outputs, 115 VAC/150 mA

Communication Ports
RS-232 transmit only, or RS-485 half duplex
Supports up to 115,200 bps

Analog Output (SCT-40AN only):
Opto isolated, 16 bit
0-20 mA, 4-20 mA (max 300 ohm)
0-10 VDC, 0-5 VDC (min 10 k ohm)

Display:
Backlit graphic LCD, transmissive
128 × 64 pixel resolution, 60 x 32 mm visible area

Keys/Buttons:
Five-key tactile keypad
test, zero, tare, print menu, escape, left and up, navigator, enter

Dimensions:
(L × W × H)
5.82 × 3.62 × 2.36 in
(148 × 92 × 60 mm)

Temperature:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)

Humidity:
85% non-condensing

Rating/Material:
DIN rail mount: NEMA Type 1

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approvals:
cULus Recognized
