SCT-4XD Belt Scale Integrator
Standard Features
- Manage up to four load cells (one scale)
- Dual encoders and outputs for automatic test weight application
- Micro-USB communication port for configuration, diagnostics and data backup (RL Tools Software)
- All data and adjustments of each scale are available through integrated fieldbus (not available on AN models)
- Integrated web server on fieldbus models* allows complete diagnostics, calibration and remote configuration
- Removable terminal blocks to simplify wiring in the electrical panel
- Power supply circuit with protections, specific for industrial environment
Options
- 1280 terminal with web server and system configuration menus
- Fieldbus: EtherNet/IP, PROFINET, Modbus TCP/IP
- Analog output
SCT-4XD Integrator Specifications
Power: Power Consumption: Excitation Voltage: Analog Signal Input Range: Analog Signal Sensitivity: Sample Rate: |
Analog Output (if equipped): Digital I/O: Communication Ports: Pulse Input: Display: |
Keys/Buttons: Dimensions: Mounting Tabs: Weight: Warranty: Approvals: |
Parts
Part # | Description |
---|---|
Integrators Only | |
225171 | 4-channel weight transmitter with Belt Scale Integrator firmware. Digitizer only - no power supply or enclosure |
225172 | 4-channel weight transmitter with Belt Scale Integrator firmware and Modbus TCP/IP |
225173 | 4-channel weight transmitter with Belt Scale Integrator firmware and PROFINET |
225174 | 4-channel weight transmitter with Belt Scale Integrator firmware and EtherNet/IP |

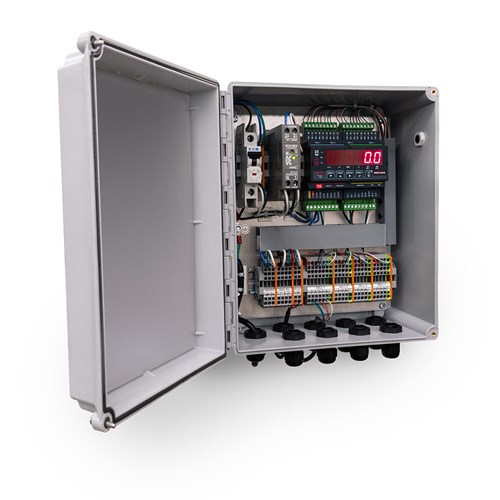

Integrators with Enclosure | |
226132 | SCT-4XD with Analog output, 24 VDC power supply, terminal blocks |
226133 | SCT-4XD with Modbus TCP/IP, 24 VDC power supply, terminal blocks |
226134 | SCT-4XD with PROFINET, 24 VDC power supply, terminal blocks |
226135 | SCT-4XD with EtherNet/IP, 24 VDC power supply, terminal blocks |
Options
Part # | Description |
---|---|
88792 | Power Supply,IDEC 12VDC DIN Rail Mount, 1.3 Amp, Input: 85 to 264 VAC, 100 to 370 VDC 15W |
119244 | Power Supply,24VDC 1.3A Din Mount Input 90 to 264VAC,120 to 370VDC, UL E135494 |
Consult | 1280 terminal, 7-inch touch screen and tactile keypad, universal enclosure with tilt stand |
Consult | 1280 terminal, 7-inch touch screen (only) for panel/surface mount |
