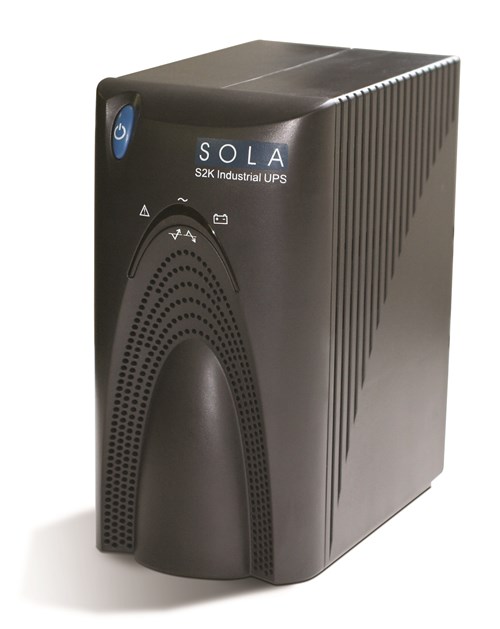

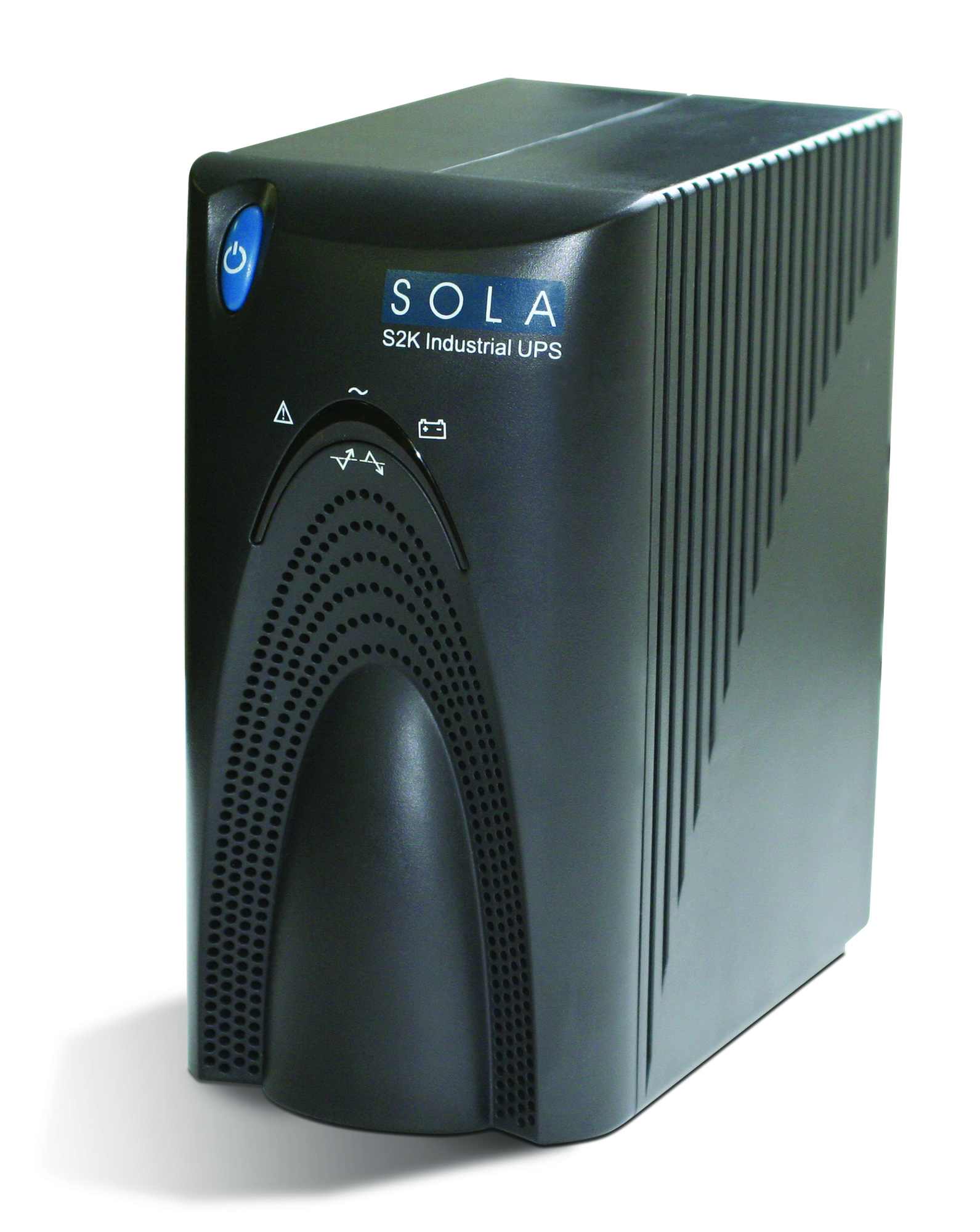

Sola S1K/S3K Uninterruptible Power Supply (UPS)

  • Protects against most adverse power conditions, including: frequency variations, surge, noise, blackouts, lightning, spike, brownouts, and over and under voltages
  • Data-line surge protection for phone or network included on every unit
  • Greater uptime with intelligent power management, full-sequence battery testing and two-level overload protection
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

UL_Listed_C-US CSA

WARNING: Cancer and Reproductive Harm California Proposition 65
Sola S1K/S3K

Input VAC:
Online Operation:
115 VAC: +20%/-25%

Frequency:
Online: 50/60 Hz ±1 Hz auto sensing

Overload Capacity:
120% ±10% (Three minutes on line mode, 10 seconds on battery)

Max Output:
Continuous: 375 watts

Transfer Time:
Four ms typical

On Battery Voltage:
115 VAC: 115 VAC rms ±10%

Output Voltage Waveform:
Step sine wave at 115 V

Output Protection:
Electronically limited

Input Protection:
Circuit breaker

Recharge Time (to 95% capacity):
Four hours

Lightning and Surge Protection:
ANSI/IEEE C62.41 categories A & B, IEC801.4, 801.5

Safety Certification:
115 VAC: UL listed to 1778, designed to meet UL497A, CSA certified to CSAC22.2 No. 107.1

EMI Compliance:
115 VAC: FCC Class B

Data Line Protection:
115 VAC: fax/modem, network

Indicators:
Online/utility fail/overload/replace battery

Audible Alarms:
Utility fail/overload/replace battery

Dimensions:
(L x W x H)
S1K: 5.3 × 3.8 × 12.6 in
S2K: 8.3 × 5.5 × 17.2 in

Warranty:
Two-year limited

Resources/Downloads

Title Download Email
Sola S1K/S3K Catalog Page Download Email

Parts

Part # Description List Price Cart/Quote
110812 UPS,Uninterruptible Power Supply,600VA 360W 120V 50/60Hz

List Price: $325.00
203635 UPS, SOLA SSW1000, 1000VA 120V

List Price: $2,395.00
