Product PDF

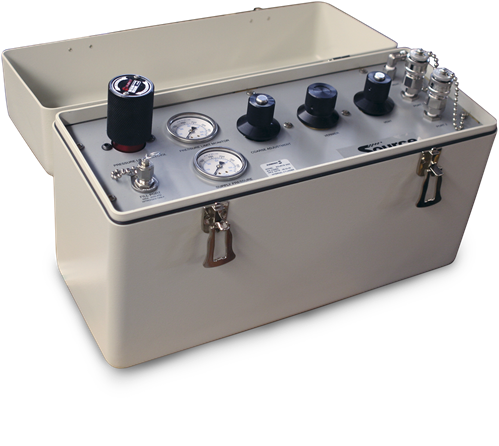

Source 3000 Portable Pneumatic Pressure Source

  • Self-contained nitrogen cylinder
  • “Overpressure protection”Condec REG 3000 regulator limits pressure to costly units under test
  • Charge your internal nitrogen cylinder to 3000 psi with provided adapter fitting
  • Two output (test) ports, for connecting to Device-Under-Test as well as a precision calibration standard (works with all major name brand pressure calibrators, digital gauges or indicators)
  • Precisely dial into required pressures with patented valve assembly
  • Aluminum carrying case
  • Front panel gauges inform operator of internal cylinder pressure level
  • Different technicians can operate the system and get identical results...every time
  • Pneumatic only - no hydraulics or distilled water messes

Applications

  • Works with all major manufacturer’s electronic pressure calibrators
  • Truly portable pneumatic source to 3000 psi
  • Nitrogen source for use at the job site
Request More Information
Portals 0 Products 80E310f6ef4444488ff399ea9dbfcf2c Orig

A quick, accurate and portable pneumatic pressure source, the new Source 3000 is designed for extended use wherever your job takes you.

Fully pneumatic, the Source 3000 offers a clean, dry pressure source up to 3,000 psi. It is equipped with a large-capacity nitrogen cylinder so you won’t run out in the middle of a job, and eliminates the inconvenience and physical stress of hand pumps. It has two ports for connecting to a measuring device and virtually any electronic calibrator. For added convenience, the removable cover allows the Source 3000 pneumatic pressure source to be positioned at different angles for easy operation in tight spaces.

Perfect for use in a variety of environments, the Source 3000 pneumatic pressure source delivers reliable, high-accuracy performance. This unique device incorporates a precision pressure vernier that allows you to dial in exact pressure readings, eliminating the risk of costly damage from overshoot. It’s housed in an aluminum carrying case that provides lightweight portability as well as protection in industrial environments.

The Source 3000 pneumatic pressure source...providing a quick, convenient and lasting pressure source wherever you need it.

Storage Temperature:
0°F to 185°F (-17.8°C to 85°C)

Pressure Media:
Clean dry gaseous nitrogen or equal

Pressure Regulator:
3000 psig, single stage, self venting, non-bleed

Pressure Gauges:
(2) Two-inch diameter, 0-4000 psig

Rupture Disc:
3200 psig nominal, stainless steel outer case

Pressure Filter:
20 micron nominal, field replaceable

Control Valves:
Orion 2C, micro-metering valve, replaceable soft seat, aluminum and stainless steel

Piping:
All stainless steel, seamless

Test Ports:
(2) Two, 5000 psig rated 3000 psig operating, 300 series stainless steel

Pressure Fittings:
Input fitting: 1/4 in. 37° female AN swivel on one end and 1/8 in. NPT male on other, to go to customer input hose
Output test ports: stainless steel quick-disconnect on one end and 1/4 in. NPT female on other, to go to customer output hose

Case:
All aluminum case with latched cover and handle

Weight:
25 lb (9.07 kg)

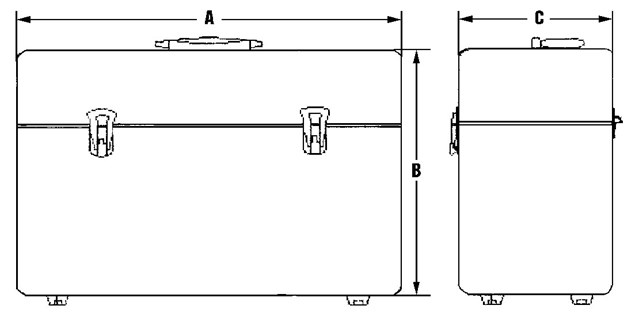

Dimensions
A 18.0 in. (457.2 mm)
B 11.5 in (292.1 mm)
C 7.2 in. (182.8 mm)



Resources / Downloads

Title Download Email
Condec Source 3000 Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Source 3000 Download Email Condec Pressure Instrumentation

Parts

Part # Description List Price Cart / Quote
65315 Source,Portable Pressure Pneumatic Source 3000, 3000 PSIG Maximum Input/Output Pressure, with Buna-N Seals, Two Female Quick-Disconnect Output (test) Ports and One 7/16 -20 AN-4 male Fill Port), Two mating Test Port and one mating Fill Port fitting supplied. Notes: Fill Port requires one (supplied) Cheat Seal PN 54854. Additional Cheat Seals, Fill Port Hose, Test Port Hose, Hose Carrier 79423, Pressure Trap 58483 and Test Port Adjustable Adapters Sold Separately

Consult
98916 Source,Portable Pressure Pneumatic Source 3000, 3000 PSIG Maximum Input/Output Pressure, with Buna-N Seals, Two Swagelok QC4 Style Female Test Ports and One QC4 Male Fill Port. Replaces ELS File SZ11849. Note: Fill Port Hose, Test Port Hose, Hose Carrier 79423, Pressure Trap 200130 and Test Port Adjustable Adapters Sold Separately. Carrier fits in top cover of unit.

Consult
98917 Source,Portable Pressure Pneumatic Source 3000, 3000 PSIG Maximum Input/Output Pressure, with Buna-N Seals, Two Ralston Style Test Ports - Stainless Steel fittings with chain and cap Connects to Ralston QT or QS series hoses, Standard 7/16-20 AN-4 Male Fill Port fitting. Replaces ELS File S10498. Note: Fill Port requires one (supplied) Cheat Seal PN 54854. Additional Cheat Seals, Fill Port Hose and Hose Carrier 79423, Sold Separately. Carrier fits in top cover of unit.

Consult

Options

Part # Description List Price Cart / Quote
63258 LIT,Manual PIN7000 PIN7010 Operating

Consult
58478 Pressure Trap,UPC5200 All Ranges, PIN7000 PIN7010 PIN8000 PIN8010 All, UPS3110 and DLR3110 Ranges 5000 PSI and Above Operation

Consult
55542 Fitting Kit,Test Port Standard quick-disconnect test port (output) fitting SST male plug on one end and 7/16-20 37 DEG AN-4 JIC male on opposite end w/ internal 40 micron filter, 11000 PSI working pressure, Requires, included, one Cheat Seal 54854 for UPC5200 UPC5210 PIN7000 PIN7010 PIN8000 PIN8010 UPS3110 DLR3110

Consult
151017 Fitting Kit, Output Port Quick Disconnect Fitting Male Coupling Body, other end 1/4-18 NPT Female SST with 40 Micron Filter, 11000 PSI Working Pressure, for PIN8000 PIN8010 UPC5200 UPC5210 PIN7000 PIN7010 UPS3110 DLR3110 - NOTE: May be used to connect DPDG Gauge to Output Port.

Consult
55280 Hose Kit,Test Port Output UPC5200, PIN7000, PIN8000 5 Foot Long with Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End, 3/16 in Hose ID, 10,000 PSI (690 BAR) Working Pressure

Consult
131096 Hose Kit,Test Port Output 10 ft. test hose for UPC5200, UPS3110, DLR3110, PIN7000 & PIN8000 (5000 psi and above) Quick Disconnect SST Plug on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Consult
78939 Hose ASSY,Pneumatic 5 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple for Source 3000 65315 or 98917 or 131385

Consult
55366 Hose Kit,Fill Port Input UPC5200 10 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Consult
55369 Hose Kit,Fill Port Input UPC5200 15 Foot Long with CGA-580 Male Nipple on One End and 1/4 inch 37 Degree Female AN Swivel Tube Coupling on Opposite End

Consult
162561 Hose Assy,Pneumatic 20 ft Fill Port One End of Hose 7/16-20 JIC 37 Degree Female AN-4 Swivel Other End CGA-580 Type Nipple, for Source 3000 PNs 65315, 98917, 131385

Consult
159683 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Finger Tighten 1/4 NPT Female to 7/16-20, 37 Degree AN-4 Swivel other end, Working Pressure 5000 PSI, for hands-free display viewing when used between PIN8000 Test Port 55542 and Device with 1/4 NPT Male, Requires (included) One Cheat Seal 54854

Consult
120462 Fitting, Quick-Disconnect Test Port adjustable adapter assembly, Finger Tighten 1/8 NPT Male to 1/4-37 Deg AN-4 Female other end, 5000 PSI, Temp Range 40 Deg F to 200 Deg F, for hands-free display reading when used between Orion 2C Cased Unit Test Port or PIN8000 Quick-Connect 55542 and Hand-Held or Digital Gauge with 1/8 NPT Female thread, requires (included) one Cheat Seal 54854

Consult
