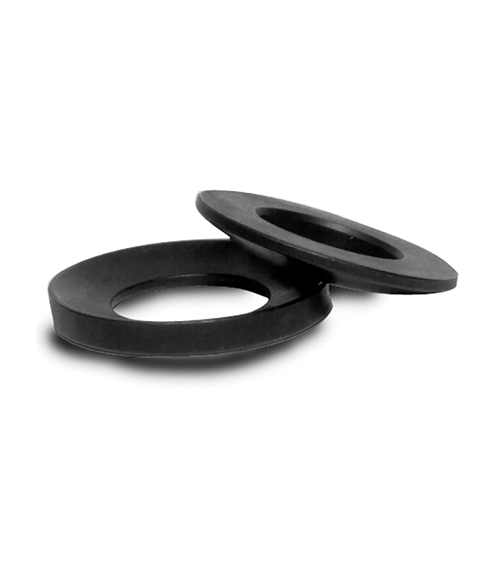

Spherical Washer Sets

As of: Thursday, November 21, 2024

Part #	Bolt Size	A	B	C	D
Mild Steel
15196	0.25 in	0.62 in	0.20 in	0.28 in	0.31 in
15197	0.38 in	0.88 in	0.25 in	0.41 in	0.44 in
15198	0.50 in	1.12 in	0.31 in	0.53 in	0.56 in
15199	0.62 in	1.38 in	0.31 in	0.66 in	0.69 in
15200	0.75 in	1.62 in	0.38 in	0.78 in	0.81 in
15201	1.00 in	2.00 in	0.50 in	1.06 in	1.12 in
15202	1.25 in	2.62 in	0.50 in	1.31 in	1.38 in
15203	1.50 in	2.88 in	0.53 in	1.56 in	1.62 in
15205	2.00 in	3.88 in	0.81 in	2.06 in	2.12 in
Stainless Steel
33218	0.50 in	1.12 in	0.31 in	0.53 in	0.56 in
33220	0.75 in	1.62 in	0.38 in	0.78 in	0.81 in

Part #	Description
Mild Steel
15196	Washer,Spherical .28x.62x .20 Mating Set of One Each Top and Bottom Washers
15197	Washer,Spherical .41x.88x .25 Thick Case Hardened 12L14 Steel Black Oxide Mating Set of One Each Top and Bottom Washers
15198	Washer,Spherical .53x1.12 x.31 Thick Case Hardened Steel Black Oxide Mating Set of One Each Top and Bottom Washers
15199	Washer,Spherical .66x1.38 .31 Thick Case Hardened 12L14 Steel Black Oxide Mating Set of One Each Top and Bottom Washers
15200	Washer,Spherical .78x1.62 x.38 Mating Set of One Each Top and Bottom Washers
15201	Washer,Spherical 1 inch Screw 1.06ID x 2.00OD x .50 Thick Case Hardened Steel Black Oxide Mating Set of One Each Top and Bottom Washers
15202	Washer,Spherical 1.31x 2.62x.50 Thick Case Hardened 12L14 Steel Black Oxide Mating Set of One Each Top and Bottom Washers
15203	Washer,Spherical 1.56x 2.88x.53 Thick Case Hardened 12L14 Steel Black Oxide Mating Set of One Each Top and Bottom Washers
15205	Washer,Spherical 2.06x 3.88x.81 Mating Set of One Each Top and Bottom Washers
Stainless Steel
33218	Washer,Spherical Set 9/16 ID X 1-1/18 OD X 7/32 Thick SST Mating Set of One Each Top and Bottom Washers
33220	Washer,Spherical Set 25/32 ID x 1-5/8 OD x 3/8 SST Mating Set of One Each Top and Bottom Washers
