SURVIVOR® OTR Concrete Deck Truck Scale
Standard Features
- Concrete deck sits above neutral axis, supported by 6-inch steel deck substructure
- Longitudinal I-beam construction
- Integrated load cell pockets
- Boltless, top access to load cells and junction box
- Self-seating, P-bracket connection between modules
- G-force mount assemblies return the scale to center without check rods or bumper bolts
- Cables completely encased in rodent-proof conduit
- Thorough finishing process includes cleaning of steel before and after welding, followed by either high solids urethane liquid paint or durable powder paint
Options
- 10 lb division for truck or livestock
- 20 lb division
- Schedule 40 guiderails
- Schedule 80 guiderails
- Manhole
- Slotted manhole
- Grain dump
- End cleanout
- Factory installed rebar
- Stainless steel load cells
- Tapered links and radius blocks
- Pre-suspended load cells and mounts
- Stainless steel suspension hardware
- Galvanized weighbridge and suspension hardware
- Custom coatings
- 3/8-inch runners
- Side deflector plates
- Catwalk
- Landing with stairs
- iQUBE2® digital diagnostic junction box bundles
Uncompromising SURVIVOR® Strength
Concrete deck truck scales provide reliable traction in wet or icy weather conditions, and resist corrosion— extending the weighbridge’s lifespan. SURVIVOR OTR concrete deck truck scales have greater mass than steel deck scales, resulting in less friction and maintenance.
Reliable Concrete Deck Design
Concrete deck truck scales offer improved load distribution to withstand movements caused by heavy trucks entering and exiting the weighbridge.

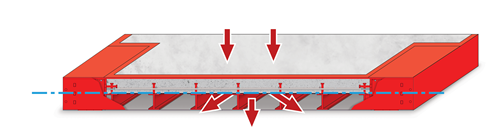

The neutral axis on a truck scale is the point where no compression or tension occurs when a vehicle is on the weighbridge. In a concrete deck truck scale, this represents the point where concrete shifts from expected compression to damaging tension.
The six-inch-thick concrete deck of a SURVIVOR OTR sits above the weighbridge’s neutral axis. It is supported by a six-inch steel deck substructure incorporating galvanized steel sheets and I-beams, which increases strength throughout each module.
Competitor Designs
Many competitive weighbridges try to compensate for lighter steel or a lack of steel components by pouring a 9-, 10- or 12-inch concrete deck, often extending below the neutral axis. This can result in dangerous concrete bending, which can cause surface cracks after just a short period of use.
SURVIVOR OTR Concrete Deck Specifications
|
Load Cells: Mount Assemblies: Junction Box: |
Platform Size: Scale Profile: Deck Thickness: Full Scale Capacity: |
Concentrated Load Capacity (CLC): Dual Tandem Axle (DTA): Warranty: Approvals: |
Parts
| Part # | Description |
|---|---|
| 10 Foot Width | |
| 53318 | Truck Scale,24x10 OTR C Concrete Deck SURVIVOR OTR Model EZ2410-SC-60-OTR 100,000lb CLC, 120,000lb Capacity, 2-Section |
| 53327 | Truck Scale,60x10 OTR C Concrete Deck SURVIVOR OTR Model EZ6010-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section |
| 53330 | Truck Scale,70x10 OTR C Concrete Deck SURVIVOR OTR Model EZ7010-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section |
| 53333 | Truck Scale,80x10 OTR C Concrete Deck SURVIVOR OTR Model EZ8010-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section |
| 53336 | Truck Scale,93x10 OTR C Concrete Deck SURVIVOR OTR Model EZ9310-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section |
| 53339 | Truck Scale,100x10 OTR C Concrete Deck SURVIVOR OTR Model EZ10010-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section |
| 53342 | Truck Scale,117x10 OTR C Concrete Deck SURVIVOR OTR Model EZ11710-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section |
| 126369 | TS,15x10 OTR CONCRETE Deck SURVIVOR, Model EZ1510-SC-60-OTR 100,000lb CLC, 120,000 lb Capacity 2 Section, Standard Profile, (14FT10-1/2X9FT10-1/2) |
| 11 Foot Width | |
| 53328 | Truck Scale,60x11 OTR C Concrete Deck SURVIVOR OTR Model EZ6011-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section |
| 53331 | Truck Scale,70x11 OTR C Concrete Deck SURVIVOR OTR Model EZ7011-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section |
| 53334 | Truck Scale,80x11 OTR C Concrete Deck SURVIVOR OTR Model EZ8011-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section |
| 53337 | Truck Scale,93x11 OTR C Concrete Deck SURVIVOR OTR Model EZ9311-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section |
| 53340 | Truck Scale,100x11 OTR C Concrete Deck SURVIVOR OTR Model EZ10011-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section |
| 53343 | Truck Scale,117x11 OTR C Concrete Deck SURVIVOR OTR Model EZ11711-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section |
| 12 Foot Width | |
| 53332 | Truck Scale,70x12 OTR C Concrete Deck SURVIVOR OTR Model EZ7012-SC-100-OTR 100,000lb CLC, 200,000lb Cap, 4-Section |
| 53335 | Truck Scale,80x12 OTR C Concrete Deck SURVIVOR OTR Model EZ8012-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section |
| 53338 | Truck Scale,93x12 OTR C Concrete Deck SURVIVOR OTR Model EZ9312-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 5-Section |
| 53341 | TS,100x12 OTR CONCRETE Deck SURVIVOR, Model EZ10012-SC-100-OTR, 100,000lb CLC, 200,000lb Capacity, 6-Section, Standard Profile (99FT10-1/2x11FT10-1/2) |
| 53344 | Truck Scale,117x12 OTR C Concrete Deck SURVIVOR OTR Model EZ11712-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 6-Section |
| 86271 | Truck Scale, 75x12 OTR C Concrete Deck SURVIVOR OTR Model EZ7512-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 4-Section |
| 53320 | Truck Scale,24x12 OTR C Concrete Deck SURVIVOR OTR Model EZ2412-SC-60-OTR 100,000lb CLC, 120,000lb Capacity, 2-Section |
| 53323 | Truck Scale,40x12 OTR C Concrete Deck SURVIVOR OTR Model EZ4012-SC-100-OTR 100,000lb CLC, 200,000lb Capacity, 3-Section |
