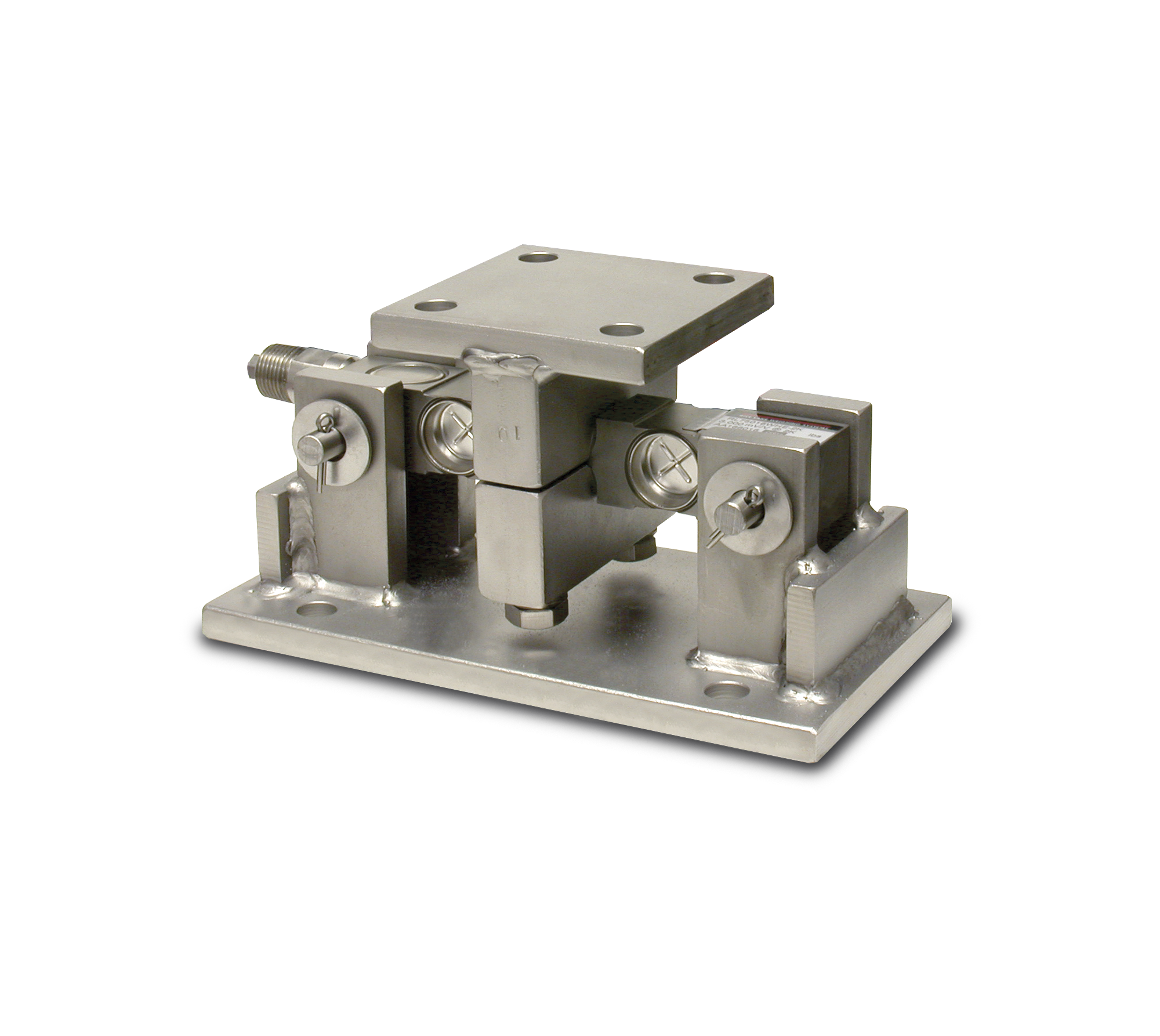

SURVIVOR® RL1600 HE Series Weigh Module

Complete Kit Includes

  • Three or four RL1600 HE stainless steel compression mounts with RL75016WHE stainless steel, hermetically sealed double-ended shear beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features

  • All stainless steel construction
  • Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
  • Center loaded

Applications

  • Medium-capacity tanks, bins and hoppers
  • Bulk material management
  • Ingredient batching, mixing and blending

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Maximizing a Weigh Module's Level of Performance

The SURVIVOR RL1600 HE mounting weigh module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1600 HE kit is ideally suited for indoor and outdoor process control operations in the medium-capacity ranges. Each module incorporates self-checking capabilities for thermal expansion and contraction.

Rated Capacity C H H1 H2 L L1 L2 L3 T W W1 W2 W3
lb/in
1,000 to 5,000 0.56 5.00 0.50 0.50 9.25 2.75 4.00 6.25 1/2-13 UNC 5.00 3.75 2.75 4.00
10,000 to 25,000 0.78 7.87 0.75 0.75 12.00 6.00 8.00 7.50 3/4-10 UNC 8.00 6.00 6.00 8.00

Resources / Downloads

Title Download Email
RL1600 HE Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
RL 1600 Weigh Module Kit Installation Guide B Download Email Weigh Modules No
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Module (Does not include Load Cell)

Part # Description List Price Cart / Quote
17813 Mount,RL1605 SS 1,000- 5,000 lb SST Compression No Cell

List Price: $685.00

17815 Mount,RL1625 SS 10,000- 25,000 lb SST Compression No Cell

List Price: $1,345.00

3-Module Kit

4-Module Kit

Dummy Load Cell

Options

Shims 1,000lb-5,000lb

Part # Description List Price Cart / Quote
150852 Shim, RL1600 1K-5K 4.00 x 4.00 x 0.0625 304 stainless steel shim 2.75 in C to C .56 dia holes

List Price: $7.00

150853 Shim, RL1600 1K-5K 4.00 x 4.00 x 0.125 304 stainless steel shim 2.75 in C to C .56 dia holes

List Price: $12.00

150854 Shim, RL1600 1K-5K 4.00 x 4.00 x 0.250 304 stainless steel shim 2.75 in C to C .56 dia holes

List Price: $18.00

Shims 10,000lb-25,000lb

Related Products

rl-VPG-Celtron-DSR-double-ended-beam-load-cell

VPG® Celtron® DSR Alloy Steel, Double-Ended Beam Load Cell

The VPG Celtron DSR double-ended beam, alloy steel load cell with center loading is designed for tank, hopper and silo applications

rl-RL75016WHE-load-cell

Rice Lake RL75016WHE Stainless Steel, Double-Ended Beam Load Cell

The Rice Lake RL75016WHE Stainless Steel, Double-Ended Beam Load Cell has center loading, designed for tank and hopper applications.

rl-RL75016-painted-load-cell

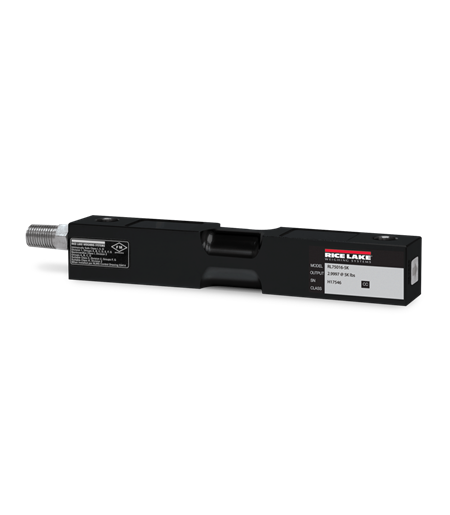

Rice Lake RL75016 MLC Coated, Alloy Steel, Double-Ended Beam Load Cell
