UPS3000 Digital Pressure Indicator

As of: Thursday, November 21, 2024

Save or Print to PDF

Portals 0 Products Fcd883ee13d84d58bb2991766b69ad52 Orig

Standard Features

Portable table top, optional panel mount kit available
Available in 8 sets of ranges: 10,000/5,000/2,000 psi, 5,000/2,500/1,000 psi, 2,000/1,000/400 psi, 50/25/10 psi, 1,000/500/200 psi, 500/250/100 psi, 100/50/20 psi, 15/7.5/3 psi
Three independent selectable ranges in each instrument
±0.05% F.S. accuracy of each independent selectable range
16 gauge painted mild steel case
No potentiometers or analog adjustments for calibration
Push button zero
0.02% F.S. display resolution typical for each range
Absolute and/or gauge switch selectable calibration modes
Multi-conversion unit with 10 conversions standard: inH2O, mmHg, inHg, kPa, BAR, mBAR, cmH2O, Kg/cm2 and % F.S.
Different technicians can operate the system and get identical results
Gases or fluids compatible with 17-4PH may be used
Calibration certificate included; traceable to the National Institute of Standards and Technology (NIST)

Applications

Transfer standard
Pressure monitor
Pressure switch testing
Relief valve testing

Condec UPS3000 Model Numbering Guides

Condec UPS3000 Specifications

Available Calibration Modes:
Gauge, absolute, or gauge and absolute switch-selectable

Overall Accuracy:
±0.05% F.S. maximum each range. Accuracy statement includes all effects of linearity, hysteresis, repeatability and ambient temperature.

Temperature Range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95%, non-condensing

Pressure Media:
Any media compatible with 17-4PH stainless steel

Pressure Sensor Type:
Bonded, metal foil strain gauge or equal

Pressure Connection:
Pressure fitting; 7/16-20UNF-2A: 37° flare; AN-4 20,000 psi unit and 30,000 psi unit; Autoclave AE F250-C

Overpressure Capability:
750% on low range
300% on mid range
150% on high range

Numerical Pressure Display:
Digital type: High intensity, red LED, 0.43 in. high
Active digits: Five full decades
Polarity indication: “—” sign

Pressure to Digital Conversion:
Conversion rate: Data updated at the rate of 12 times per second, nominal
Display resolution: Nominally 0.02% of F.S. for each pressure range

Input Voltage:
115 or 230 VAC, ±10%, 50/60 Hz voltage selected via transformer taps

Power Consumption:
8 watts, typical

Line Filter:
Line to line and line to neutral

Mounting Styles:
Table top with rubber feet or panel mounted with adapter kit

Construction:
Single piece outer case with slide out drawer

Case Material:
16 gauge, mild steel with textured finish, baked epoxy enamel paint

Multi-Conversion:
10 units can be stepped through at the touch of a button. psi, kPa, mmHg, BAR, mBAR, inHG, cmH2O, Kg/cm2, inH2O, and % F.S. are included. Replaces analog pressure display

Weight:
UPS3000: approximately 13 lb (5.8 kg)

Peak Hold:
Last highest pressure reading stored in memory and recalled at the touch of a button. Calibrates burst discs and relief valves

Freeze Mode:
External switch contact, change of state, freezes display reading for three seconds. Calibrates pressure switches

Battery:
Self-contained rechargeable battery provides a minimum of six hours of completely portable usage. May be operated or recharged by connecting the power cord to 115 VAC. Handle, power switch, and low battery indicator included with this option. Analog display not included with this option. Also not available in rack-mount models

Outputs:
Analog: 4-20 mA, 0-10 VDC, 0-5 VDC
Digital: Parallel BCD, 20 mA loop, RS-232 simplex output

Min/Max:
Highest and lowest pressure readings stored in memory and recalled at the touch of a button

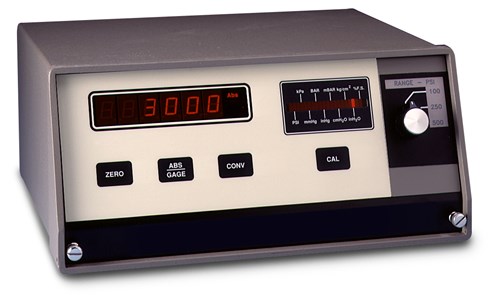

UPS3000 Digital Pressure Indicator

UPS3000 Dimensions
A	18.0 in. (457.2 mm)
B	11.5 in (292.1 mm)
C	7.2 in. (182.8 mm)

Options

Part #	Description

55844	Battery,12V 2.2 AmpH KB8902A
63253	LIT,Manual UPS3000 Operating
